20 Repair information and repair instructions

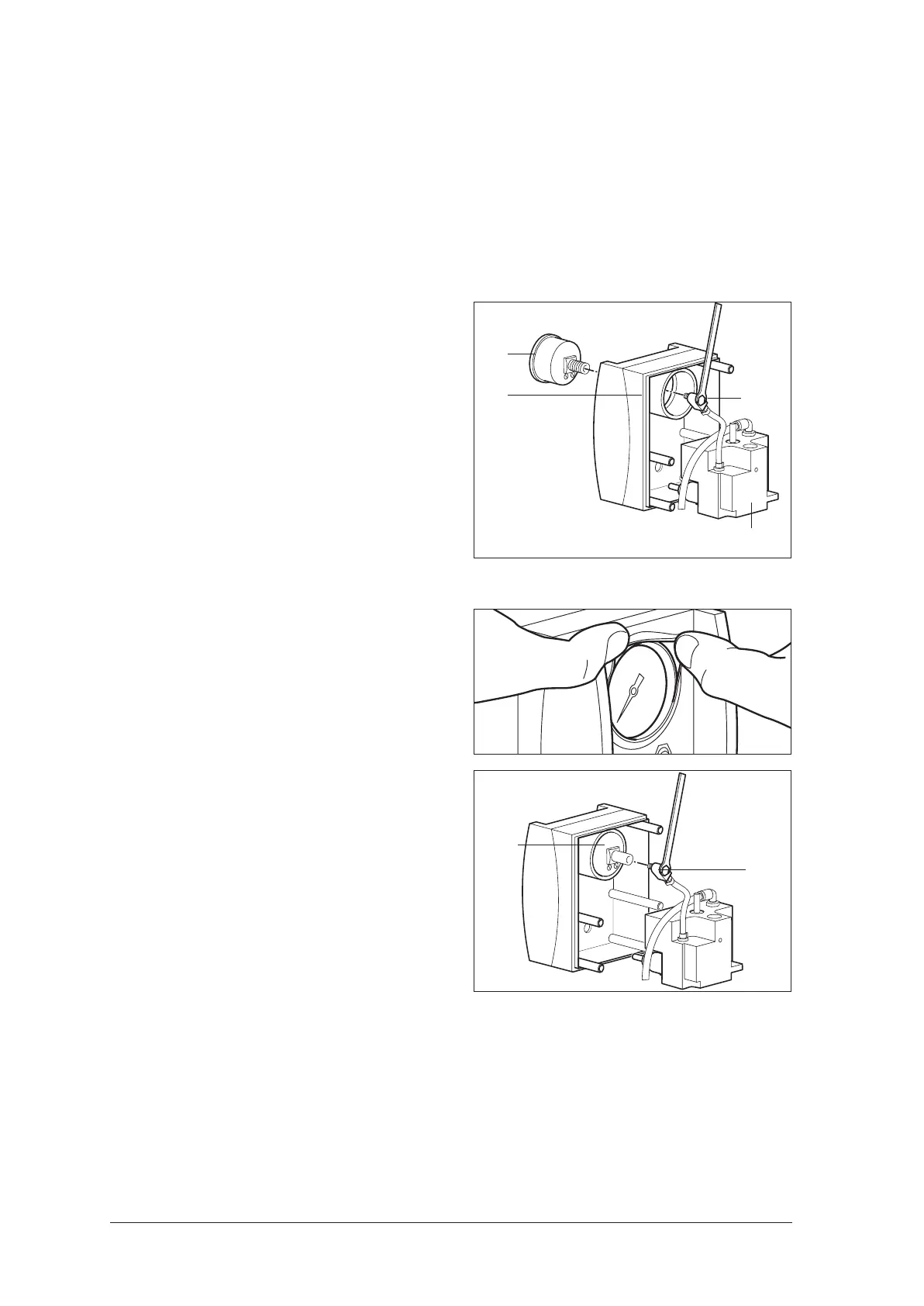

6.2.6 Replacing the pressure gauge
Tools required:
• Crosstip screwdriver, size 1,
• Open-ended spanner SW 7.
1. Unscrew the base section of the housing (see
steps 11. to 13. in chapter ”6.2.3 Dismantling
the housing“ on page 14).
2. Using an open-ended spanner (SW 7), re-
lease the swivel screw connection 42 from the
pressure gauge 6.
3. Press the pressure gauge 6 out of the
mounting 14.
Tip:
You will find the pressure gauge easier to remove
if you dribble a small amount of spirit between
the pressure gauge and the mounting.
4. Wet the edge of the new pressure gauge 6
with a little spirit and press it into the
mounting 14.
Important:
Observe the installation position so that the dis-
play remains clearly legible!
5. Pass the rubber bead over the pressure gauge
with your fingers.
6. Screw the swivel screw connection 42 to the
pressure gauge 6.
Take care to ensure the correct installation posi-
tion. The tube must not protrude beyond the hous-
ing.
7. Join the two halves of the housing together
(see “6.2.4 Assembling the housing” on
page 16).
8. Perform a final check (see “3. Final Check” on
page 7).
42
6
14
Pneumatic block
42
6
