Suction MODULE 27
6.3.5 Replacing the non-return valve in the distributor block
See “6.2.5 Replacing the non-return valve in the distributor block” on page 14.
Important!
Please observe the exceptions for assembling the housing under
• ”6.3.4 Assembling the housing“ on page 26.
6.3.6 Replacing the pressure gauge
See ”6.2.6 Replacing the pressure gauge“ on page 20.
Important!
Please observe the exceptions for assembling the housing under
• ”6.3.4 Assembling the housing“ on page 26.

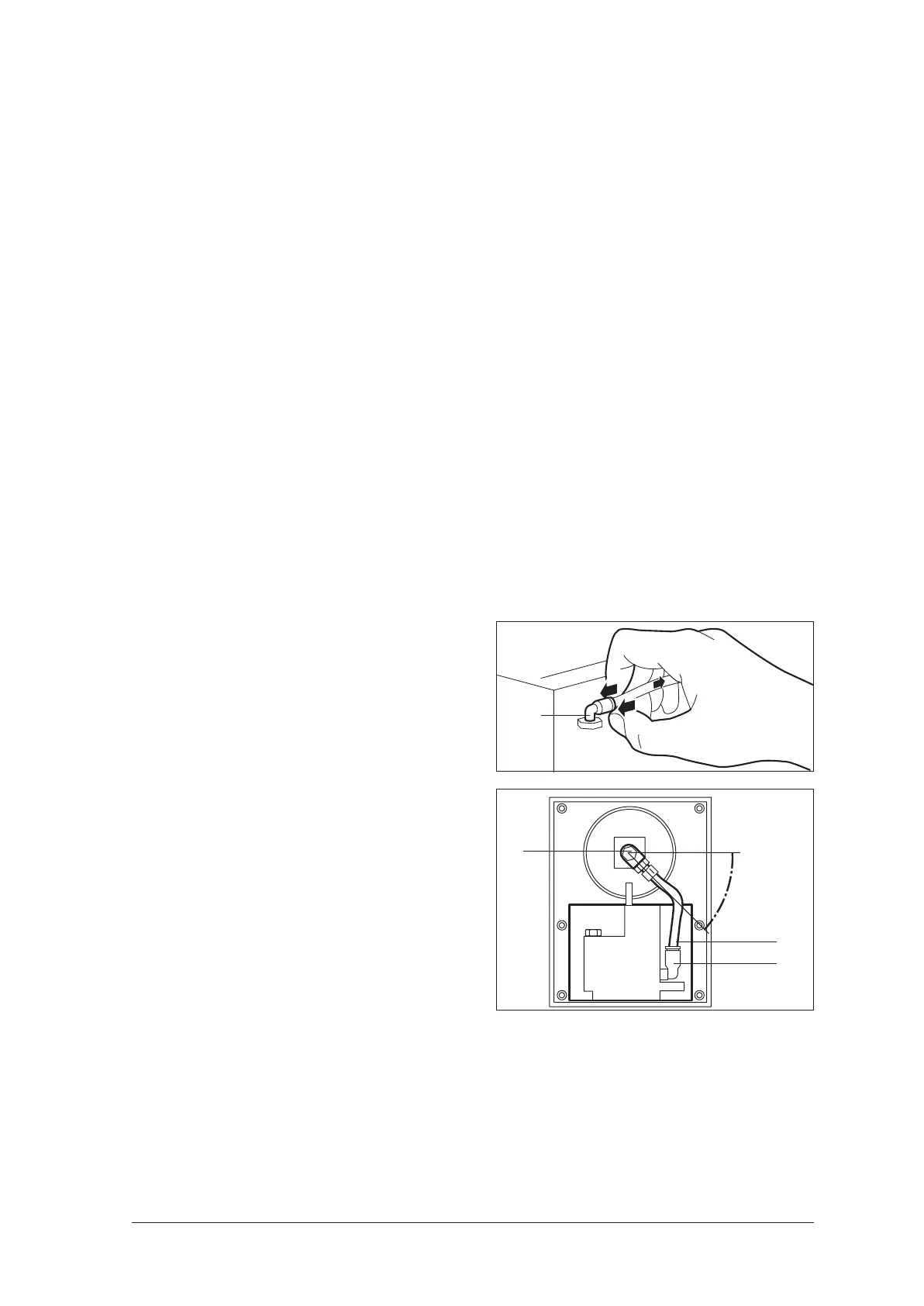

6.3.7 Replacing the tubes
See ”6.2.7 Replacing the tubes“ on page 21, but with three exceptions:
1. Re: step 6.:
The pressure gauge tube 24 is 80 mm long.
2. Re: steps 4. to 6.:
On the pneumatic block, the pressure gauge
tube 24 is held by an angular bush 40, not a
single-lug clip.
– To release the tube, push back the sleeve of
the angular bush 40 and pull out the tube.
– To secure the tube, push it into the angular
bush 40 as far as it will go.
3. Re: step 8.:
In the Suction MODULE, the pressure gauge
tube 24 has a different installation position:
The swivel screw connection 42 must be lying at
an angle of approx. 45° to the horizontal.
Important!
Please observe the exceptions for assembling the housing under
• ”6.3.4 Assembling the housing“ on page 26.
