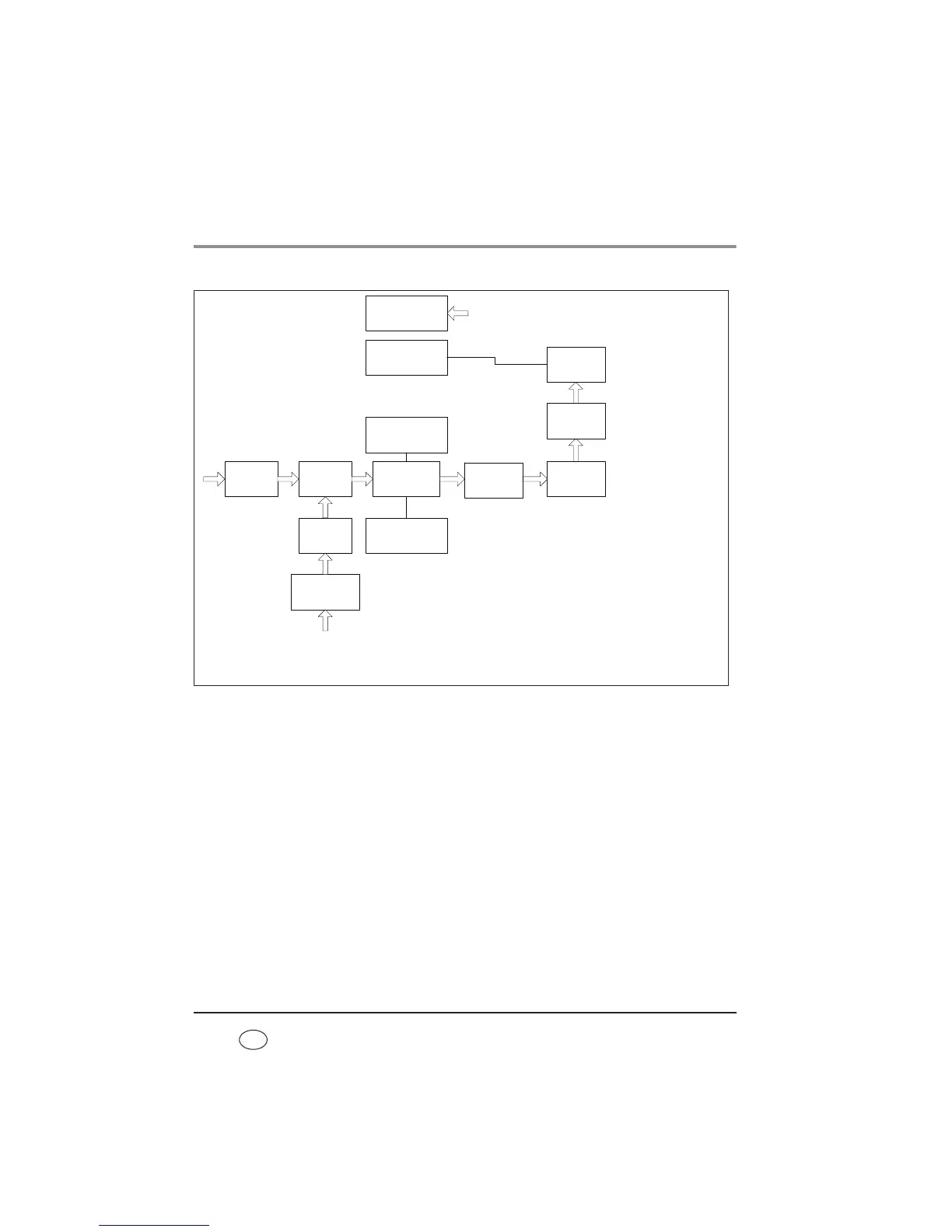

11.7 Pneumatic diagrams
11.7.1 Leakage ventilation
Filter Blower
Flow
measuring
section insp.
O
2
valve
Non-return
valve
Bacteria
filter
Silentflow
Patient
Pressure sensor
for patient
Pressure sensor
for device
outlet port
Flow sensor
Pressure sensor
for atmosphere
O
2
supply
0-15 l/min at < 1000 hPa
Exhaled air flushed out
via leakage system
Humidifier
