Follow the instructions for use for the exhalation system and for the patient/ventilator
interface.
Connect circuit for mouthpiece ventilation
Proceed as outlined below to connect the leakage circuit
for mouthpiece ventilation (WM 27651).
1. Plug the tube adapter supplied onto the ventilation
outlet on the device.
2. Plug the leakage circuit for mouthpiece ventilation
onto the tube adapter.
3. Connect the patient/ventilator interface, e.g. a
mouthpiece. It is essential to follow the instructions for
use for the patient/ventilator interface..
4.5 Connect humidifier
Note!
An optional tube adapter is available as an accessory for the use of Fisher & Paykel humi-
difiers. Be aware that technical data change when third-party humidifiers are used.
4.5.1 Leakage ventilation
We recommend humidifier HC 150 from Fisher & Paykel with the corresponding patient
circuit. Follow the associated instructions for use..
4.5.2 Valve ventilation
We recommend humidifiers HC 850 or HC 550 from Fisher & Paykel with the corresponding
patient circuit or humidifier PMH5000 from Wilamed.
4.6 Connect bacteria filter
Caution!
The bacteria filter represents an additional resistance in the air flow. This can cause
a change to the response characteristics of the trigger. If a bacteria filter is
connected subsequently, the doctor must therefore check the device parameters
and may need to reset them.

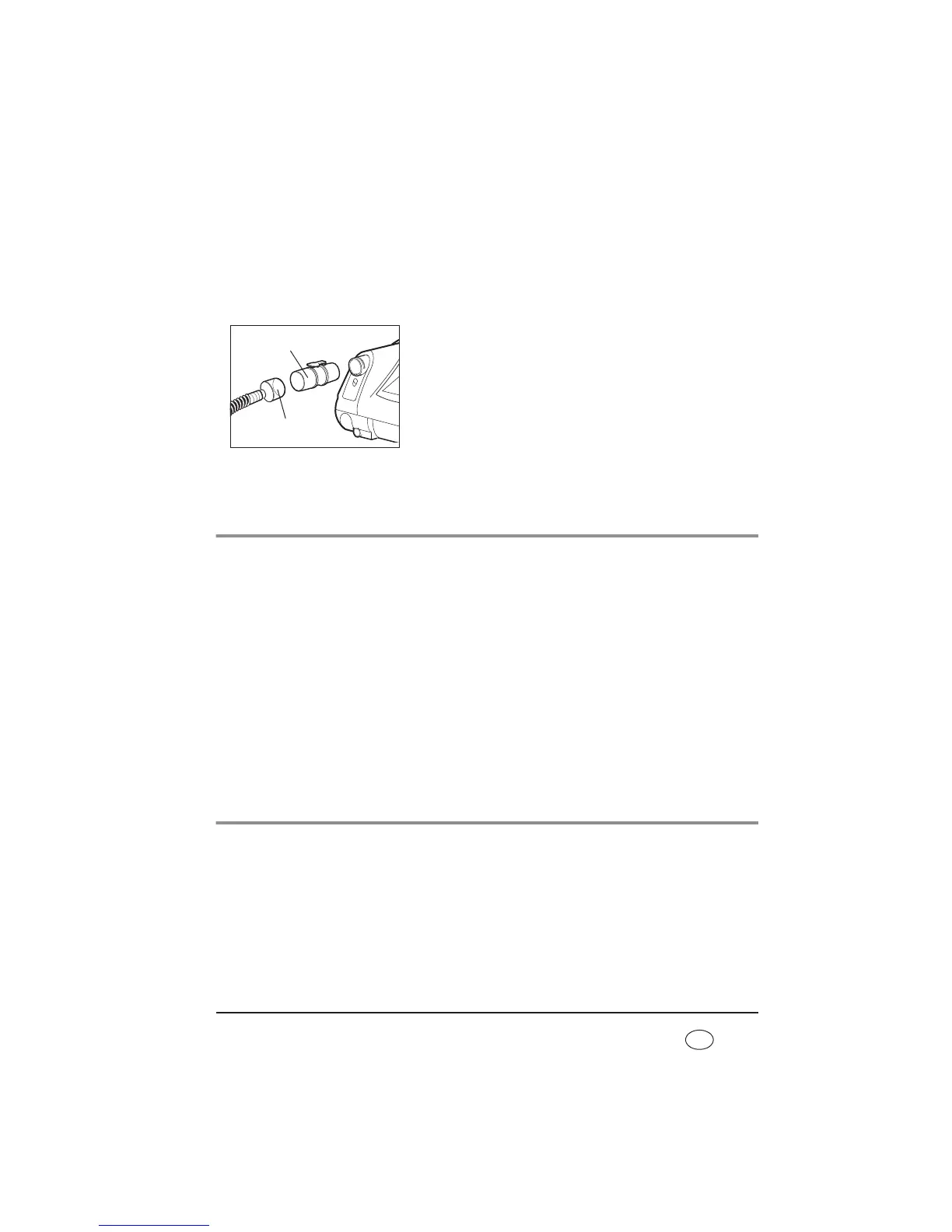

Tube adapter
WM 27651
To Next Page
