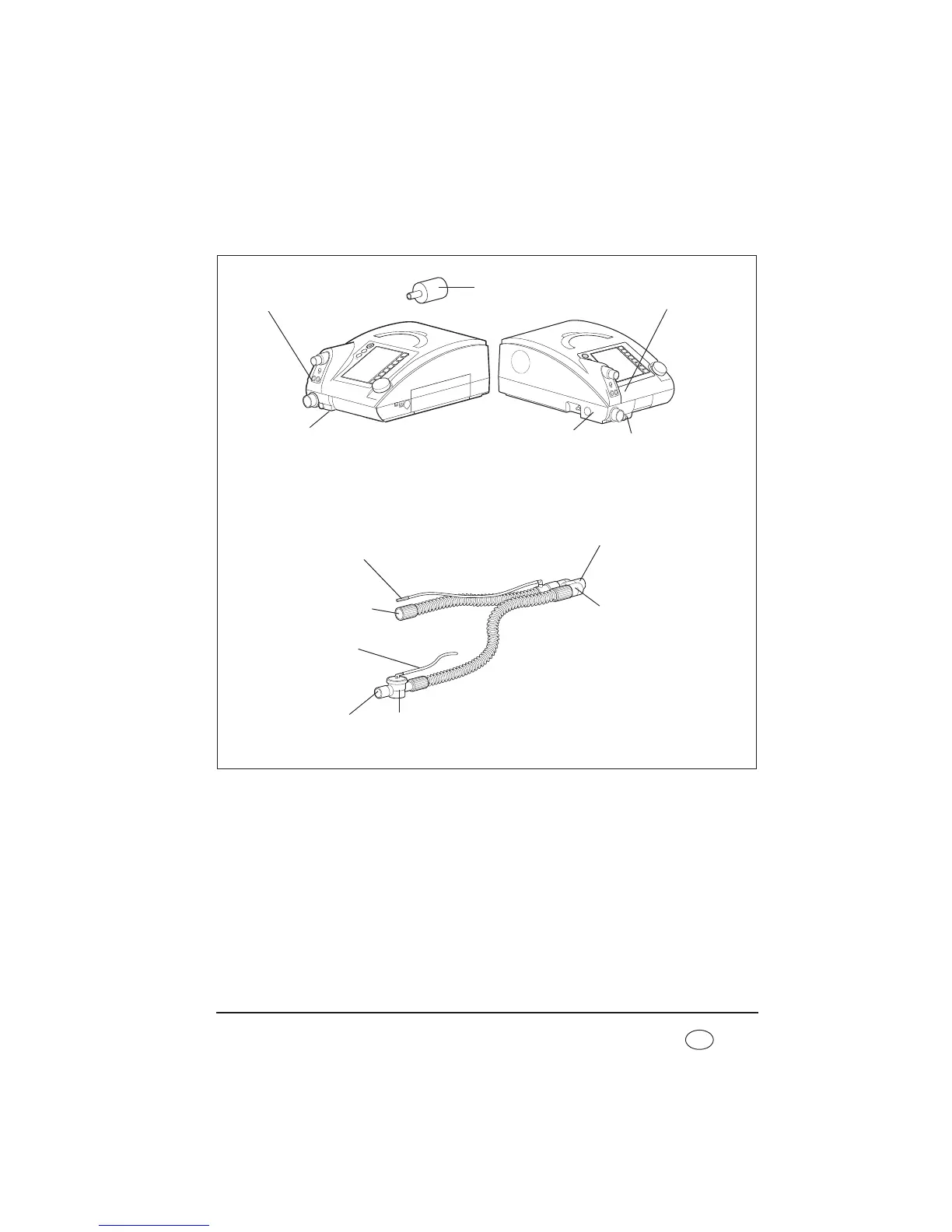

Therapy device, double patient circuit with patient valve
(VENTIlogic LS only)
35 Connection for O
2
sensor
For connecting an oxygen sensor which can be
used to measure oxygen concentration in
respiratory air (only with patient circuits with a
patient valve).
36 Connection for pressure-
measurement tube (marked blue)
For connecting the pressure measuring tube to
the device.
37 Test adapter
Required for the function check of the therapy
device.
38 Connection for valve control tube
For connecting the valve control tube to the
device.
39 Device connection for patient valve
For connecting the patient valve to the device
inlet port of the therapy device.
39 Device connection for
patient valve
36 Connection for pressure-
measurement tube
(marked blue)
41 Double patient circuit
43 Y-adapter
44 Patient valve
46 Valve control
tube
48 Pressure-
measurement tube
(marked blue)
38 Connection for
valve control tube
40 Opening for
exhaled air
42 Connection
for patient
45 Connection for
device inlet port
47 Connection for
device outlet port
37 Test adapter
35 Connection for O
2
sensor
