Weishaupt WG20 Series User Manual

17
3 Technical description
3

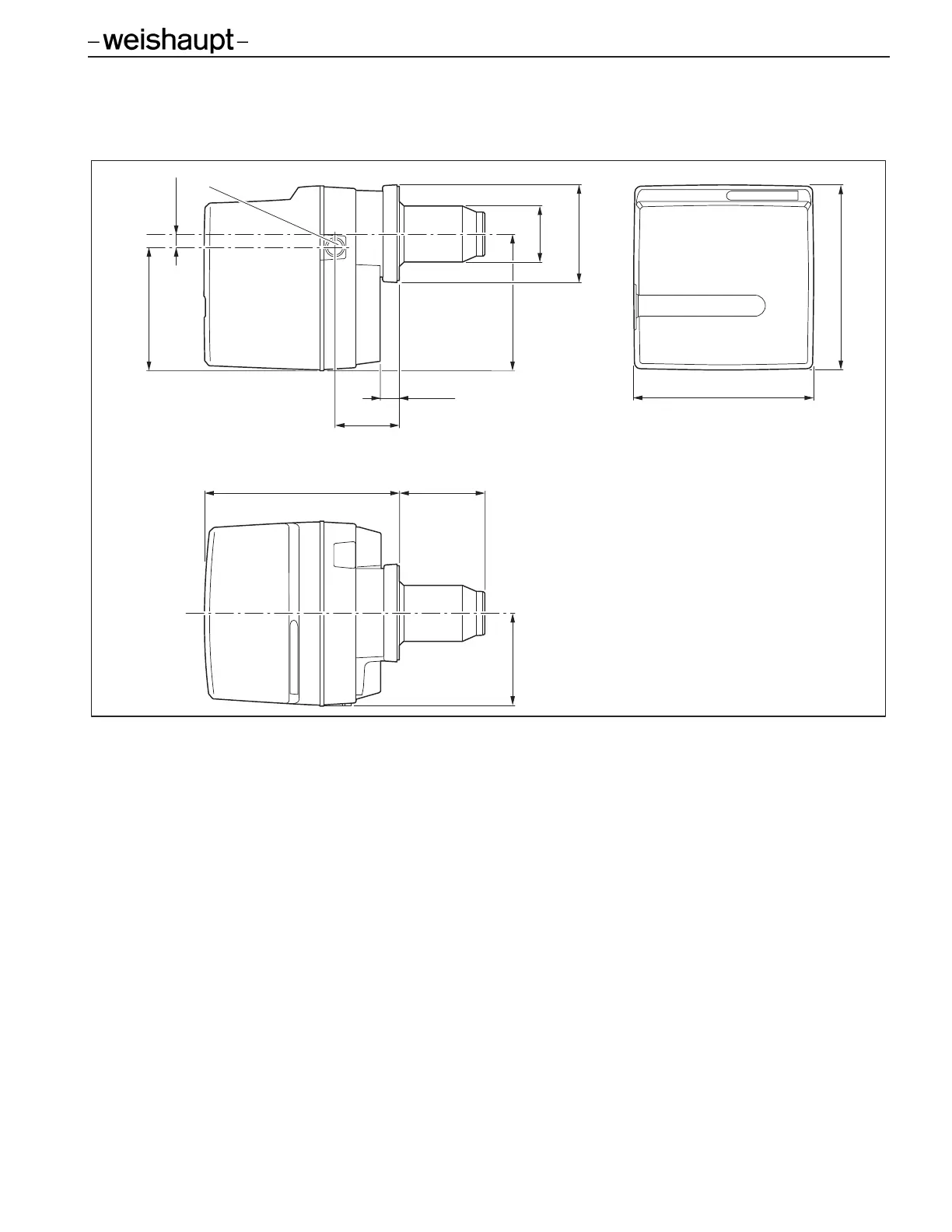

.4.5 Dimensions
–
weishaupt–
14-3/4” (376 mm)
14-1/8” (358 mm)
7” (178 mm)
15-5/8”
(397 mm)
4-3/4”
(120 mm)
7-1/8”
(182 mm)
10-3/8”
(264 mm)
3/4”
(20 mm)
6-1/4”
(158 mm)
1-1/4”
(32 mm)
10-5/8”
(270 mm)
Rp1”
1
Installation and Operating Instructions
G
as burner WG20.../1-C ZM-LN (W-FM 25)
83055116 • 1/2016-05
1 5-1/2” (140 mm) - without combustion head extension
9-1/2” (240 mm) - with 3-7/8” (100 mm) combustion head extension
13-3/8” (340 mm) - with 7-7/8” (200 mm) combustion head extension
17-3/8” (440 mm) - with 11-3/4” (300 mm) combustion head extension
3.4.6 Weight
Approx. 61 lbs (28 kg).
