Weishaupt WG20 Series User Manual

Installation and Operating Instructions
G
as burner WG20.../1-C ZM-LN (W-FM 25)
20
83055116 • 1/2016-05
20
83055116 • 1/2016-05
4 Installation
4

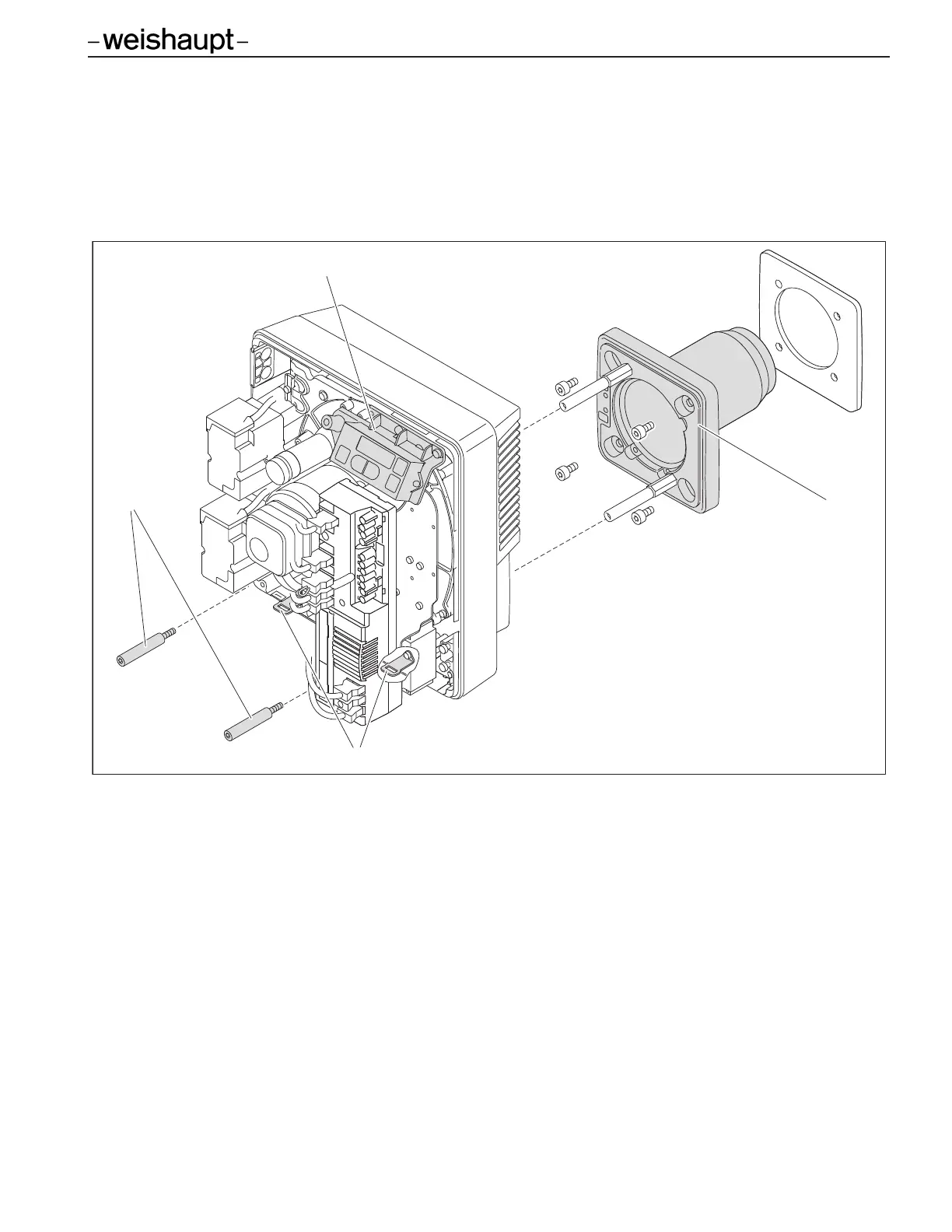

.2.1 Rotate burner by 180°
u Install the operating interface 1 on the opposite side of the burner’s housing.
u Install the fixing bracket of the burner housing 3 on the opposite side of the burner’s
housing.
u Rotate the burner flange 2 by 180° and installed it with the flange gasket.
u Rotate the burner by 180° and install screws 4 to the burner flange.
u The gap between the flame tube and the refractory should be filled with flame-proof,
resilient insulating material (do not make solid!).
u Check the ignition and ionization electrodes’ settings.
u Install the mixing head.
3
4
1
2
