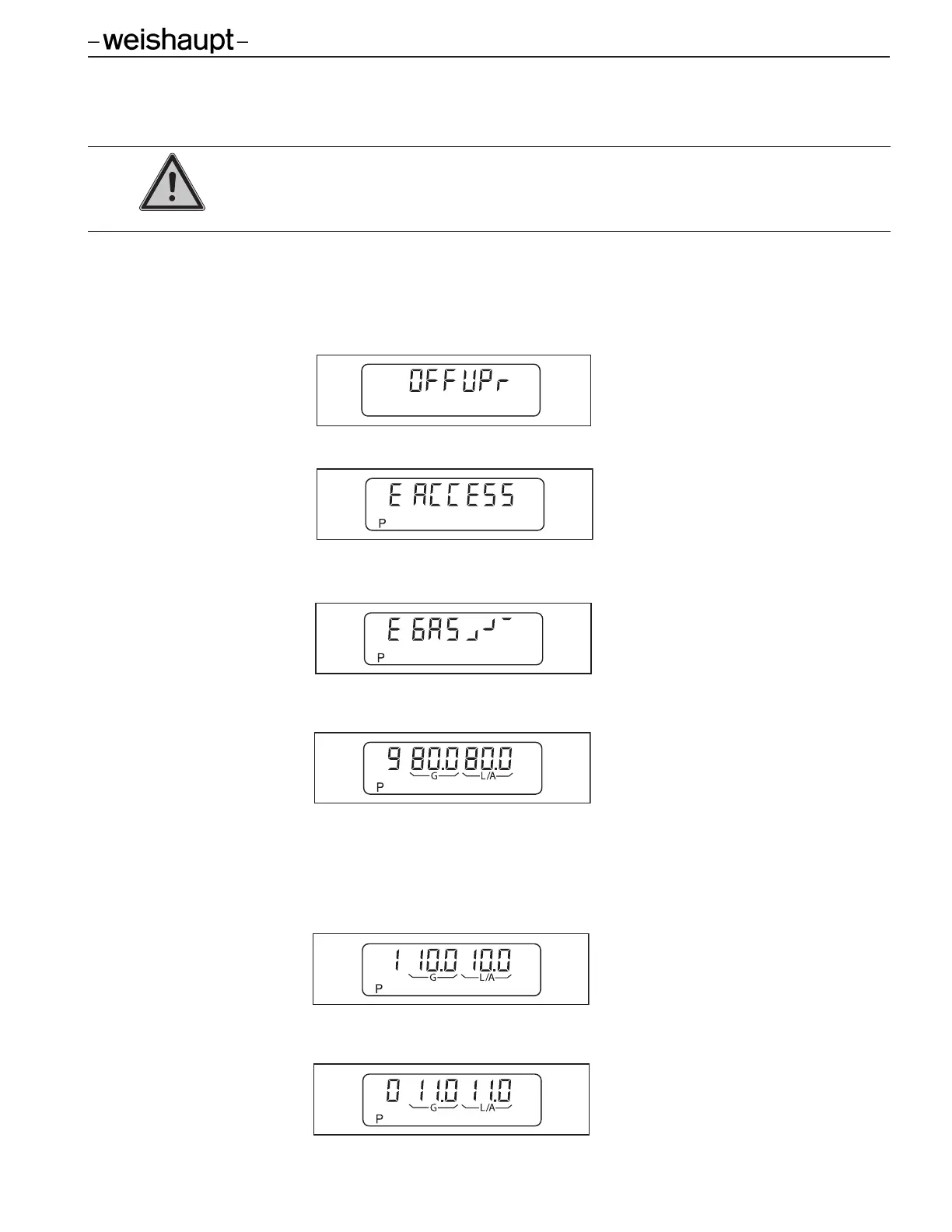

6 Commissioning and startup
6
.2 Burner setting
Risk of electric shock
Touching the ignition device can lead to electric shock.
u Do not touch the ignition device during the ignition process!
u Check the flame signal during commissioning (see Ch. 6.1.1)
1. Presetting the combustion manager
u Unplug the bridging plug No. 7 on the combustion manager.
u Turn on the power supply.
a The combustion manager drives to Stand-by.
u Press [G] and [L/A] keys simultaneously.
a The combustion manager changes to access level.
u Press [+] key.
a The combustion manager changes into the setting level for step points.
u Press [+] key.
a The factory setting operating point P9 is displayed.
u Press and hold [L/A] key and set the determined air damper setting using the [-] or
[+] keys.
u Press and hold [G] key and set the gas butterfly valve to the same value using the
[-] or [+] keys.
u Press [+] key.
a The factory setting operating point P1 is displayed.
u Press [+] key to confirm the factory setting.
a The factory setting operating point P0 (ignition position) is displayed.
35
Installation and Operating Instructions
G
as burner WG20.../1-C ZM-LN (W-FM 25)
83055116 • 1/2016-05
