8 Maintenance and service
8
.12 Removing and re-installing the gas butterfly valve
Observe the notes on maintenance and servicing (see Ch. 8.1).

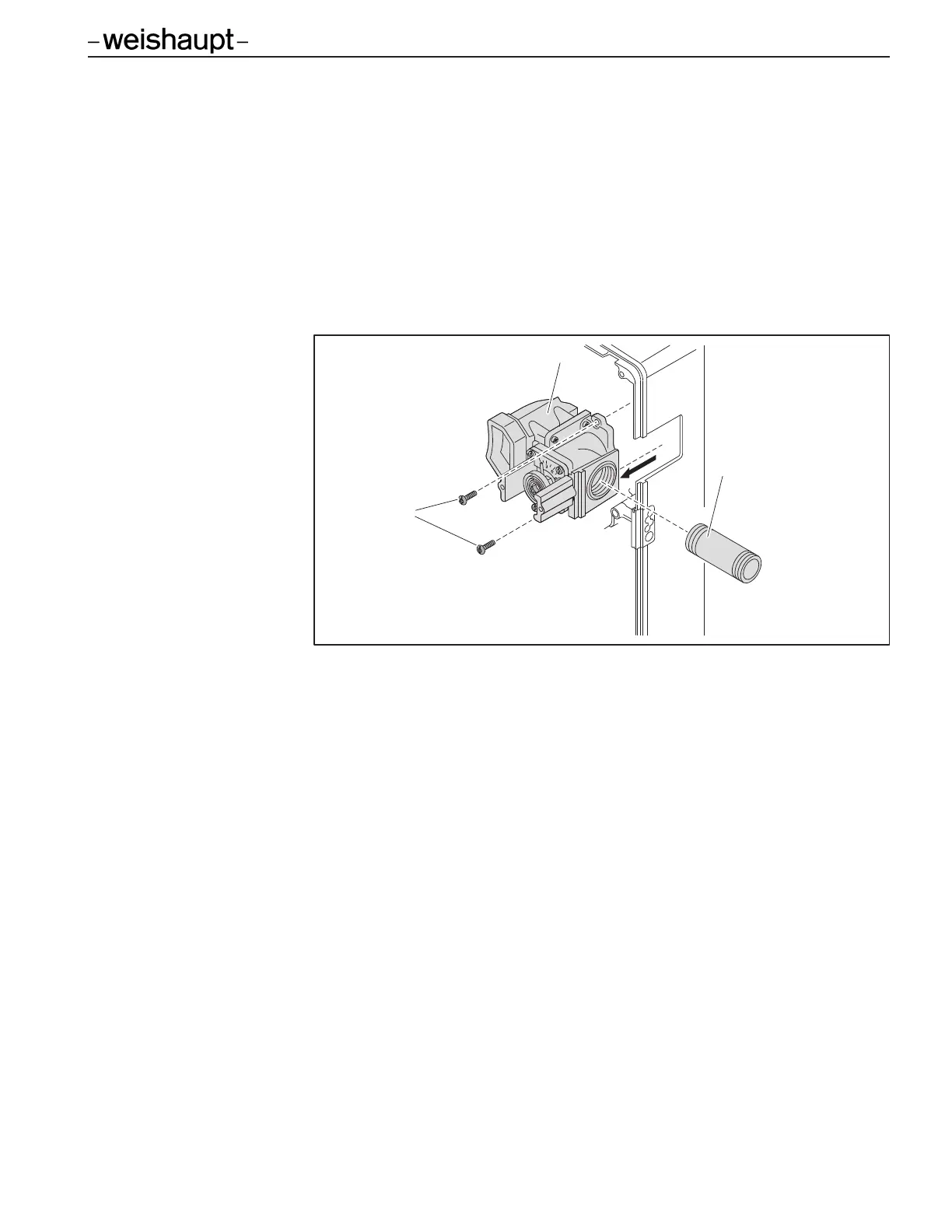

Removing
u Unscrew the double nipple R1”-1”NPT 3 from the gas butterfly valve.
u Remove the mixing head (see Ch. 8.4).
u Remove the screws 1 and remove the gas butterfly valve 2.
Re-installing
u Re-install the gas butterfly valve 2 in reverse order, screw the double nipple 3 and
perform a gas train soundness test.
