6 Commissioning and startup

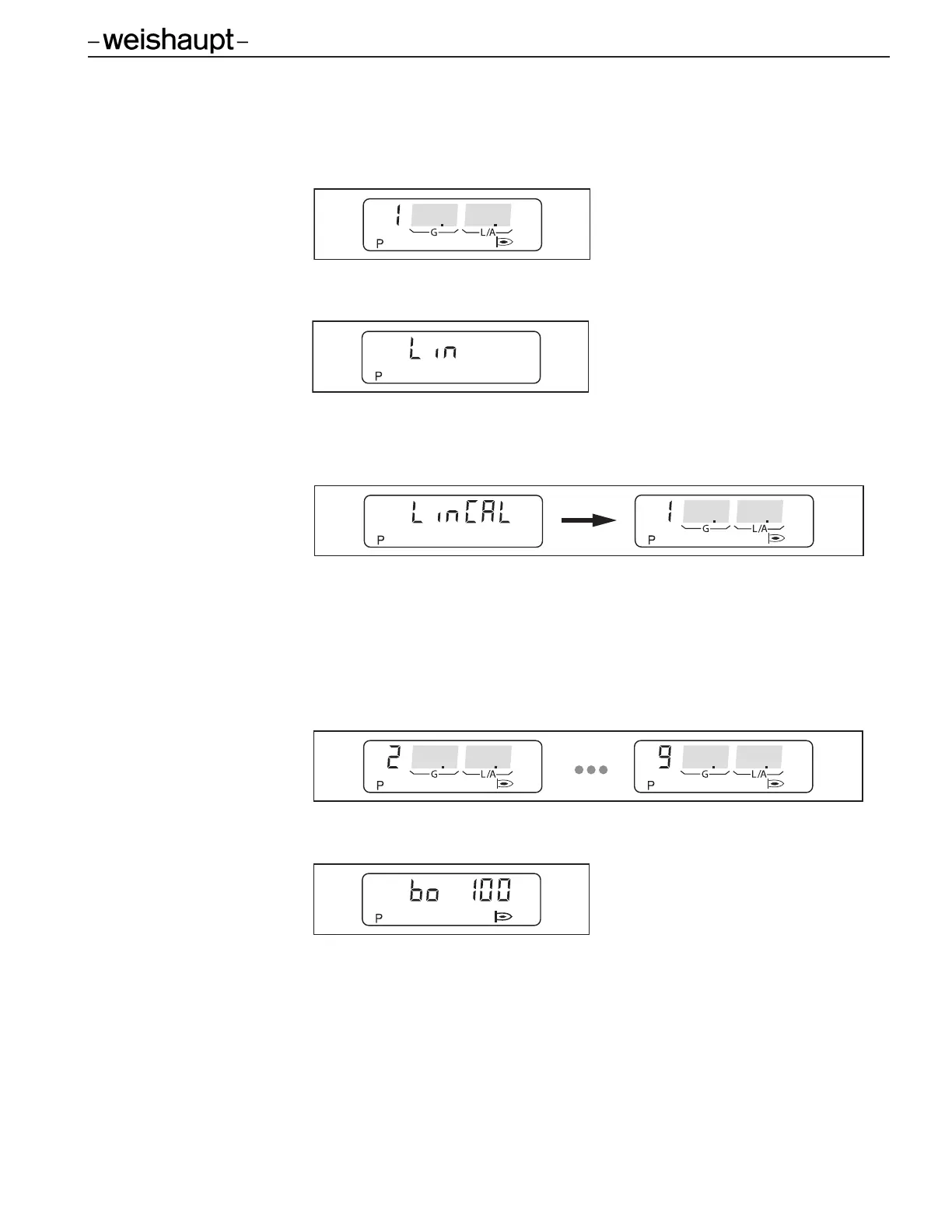

8. Performing the linearization process
u Press [+] key.
a
The burner drives to the operating point P1.
u Press [Enter] key.
a The combustion manager switches to linearization mode.
u Confirm with [+] key.
a The linearization is initiated.
a The display then shows operating point P1.
a The calculation from P1 to P9 has completed.
9. Optimizing the operating points
u Check the combustion values.
u Press and hold [G] and optimize the combustion values via the gas butterfly valve
setting using [-] or [+] keys.
u Press [+] key.
a The next operating point is selected.
u Repeat the steps for the operating points P2 to P9.
u Press [G] and [L/A] simultaneously.
a The upper operating limit (bo) is displayed.
83055116 • 1/2016-05
40
Installation and Operating Instructions
G
as burner WG20.../1-C ZM-LN (W-FM 25)
