Rotary indexing ring NR
Maintenance
WARNING
MOVING PARTS
Failure to follow these instructions can result in death, serious injury, and
equipment damage.
■
Verify that the zone of operation of the moving parts of the product/machine is
safeguarded.
WARNING
HOT SURFACES
The temperature of the motor and the holding brake can exceed 100 °C during
operation.
Failure to follow these instructions can result in death, serious injury, and
equipment damage.
■
Avoid unprotected contact with hot surfaces.
■
Do not allow flammable or heat-sensitive objects in the vicinity of hot surfaces.
■
Before performing work on the motor or the holding brake, verify that you wait for
a sufficient period of time to allow such parts to cool down to a temperature that
allows for safe contact.

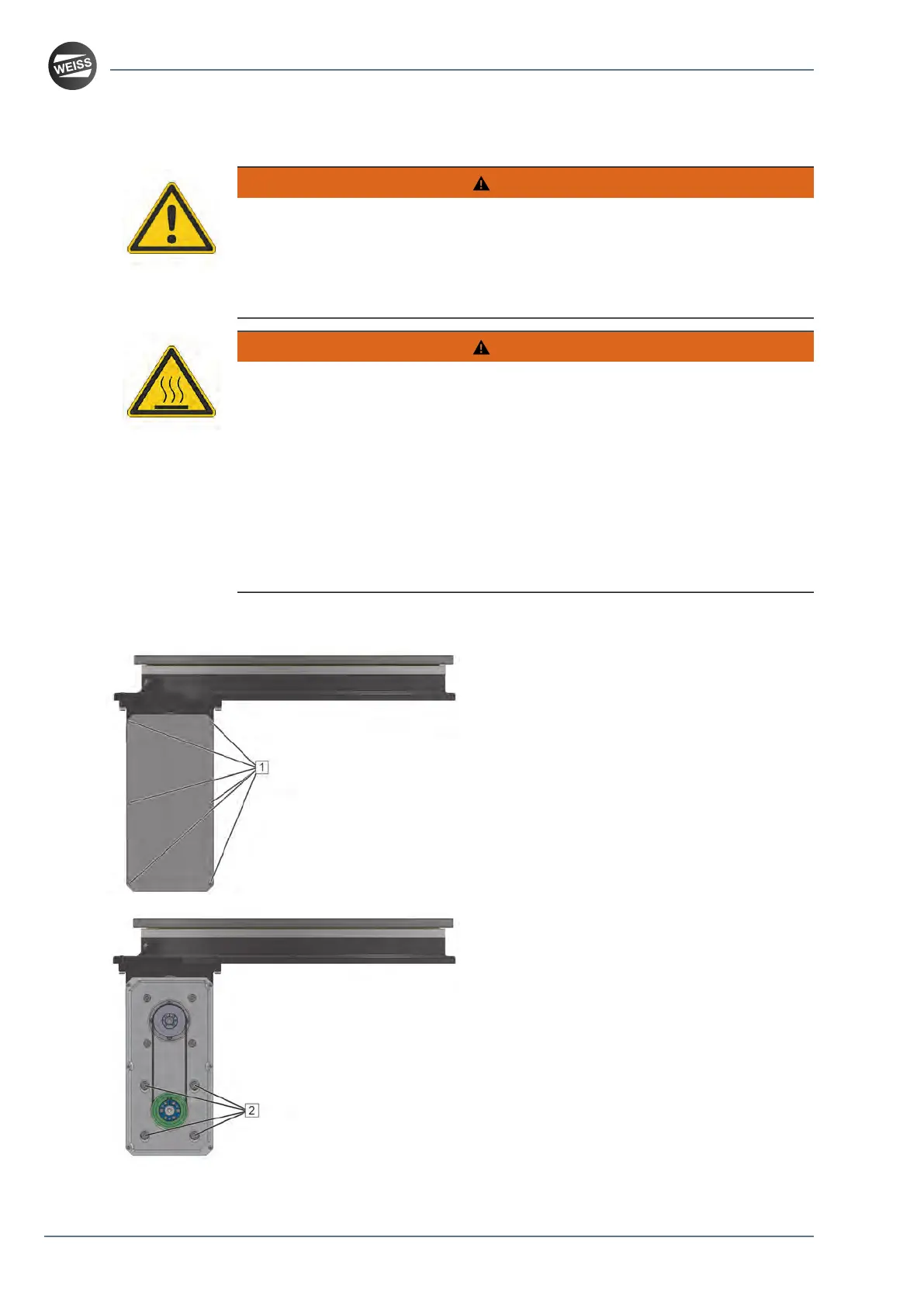

Dismounting the toothed belt
The product must be in a locked position
before the toothed belt is replaced.
1. Remove the cover [1] by removing the
screws.
2. Loosen the four screws [2] of the motor
flange.
56 / 62
Mounting instructions_062019_1.0_en
