Rotary indexing ring NR
Product description
3.3 Nameplate
The nameplate is attached to the housing of the product; it contains the following information:

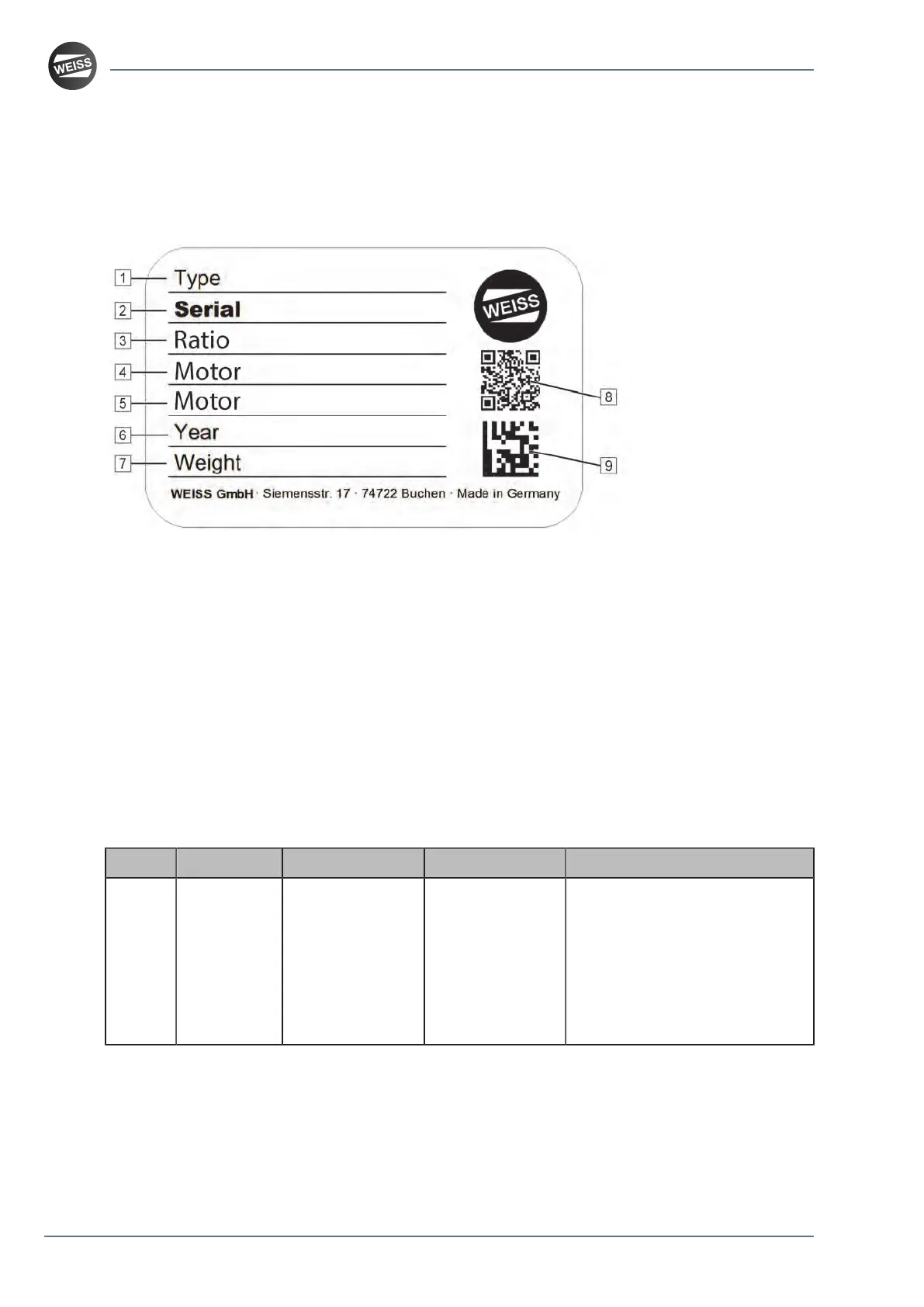

Figure 1: Example of nameplate
1 Type 6 Year of manufacture
2 Serial number 7 Weight
3 Gear ratio 8 QR code (company website)
4 Input speed of rotation 9 DM code (serial number)
5 Input torque of motor
The scope of delivery contains a second nameplate. If the factory-mounted nameplate is covered
by attachments, the second nameplate can be attached at a readily visible position of the product or
machine for identification of the product.
3.4 Type code
Structure of the type code:
Type Size Version - Gear
NR 0750
1100
1500
2200
Z A = Standard G = 180:1 (NR0750Z)
G = 176:1 (NR1100Z)
G = 224:1 (NR1500Z)
G = 440:1 (NR2200Z)
K = 90:1 (NR0750Z)
K = 88:1 (NR1100Z)
K = 112:1 (NR1500Z)
K = 220:1 (NR2200Z)
14 / 62
Mounting instructions_062019_1.0_en
