Rotary indexing ring NR
Mounting
6. Now you can mount a stationary plate onto
the raised ring.

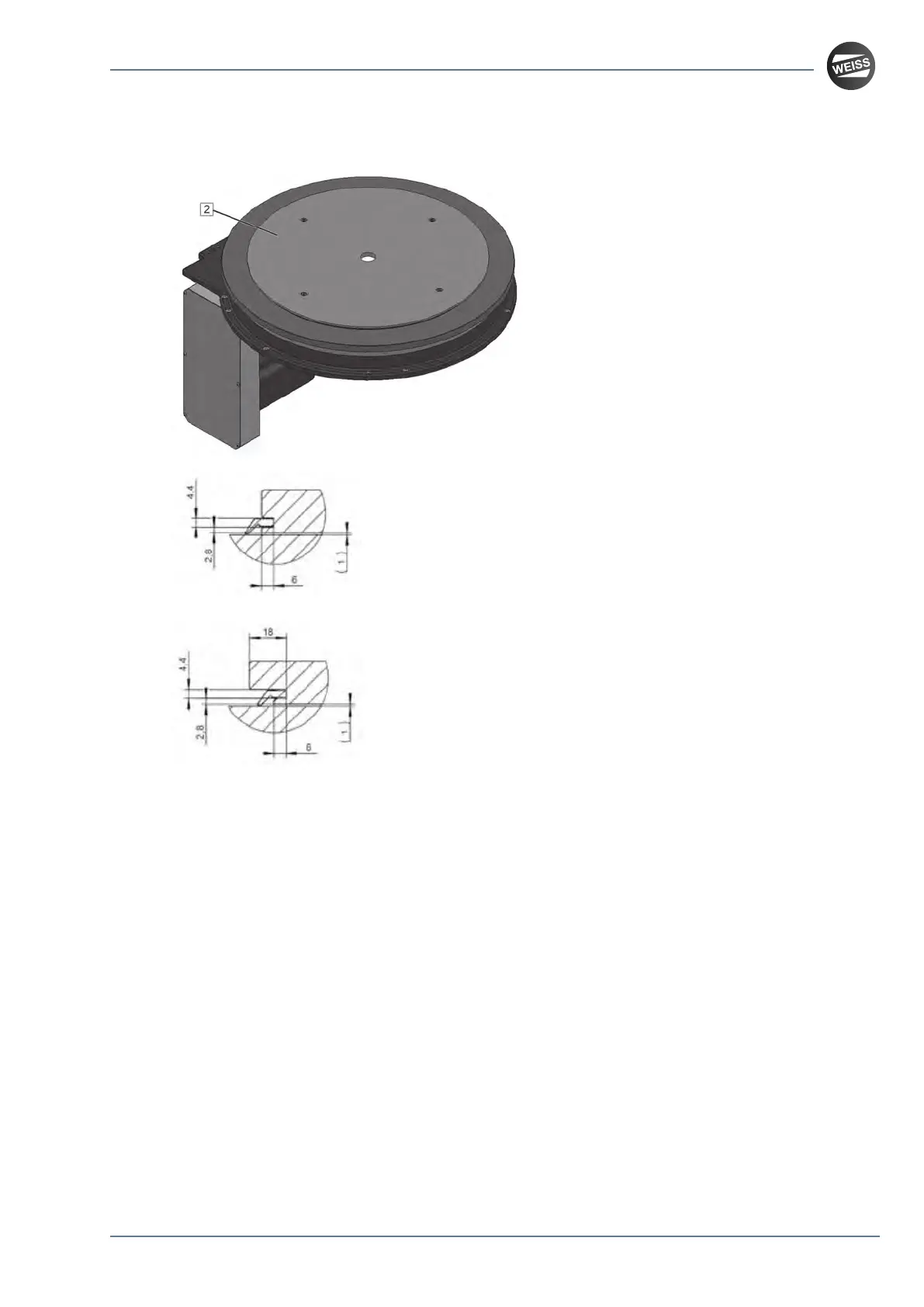

Lip seal outside
Lip seal inside
7. Mount a suitable lip seal between the rotary
ring and the stationary plate to help avoid the
ingress of extraneous objects.
8.7 Mounting safety equipment
The product is a partly complete machine pursuant to Directive 2006/42/EU and intended to be
incorporated into or assembled with other machinery. The requirements concerning functional safety
and the corresponding safety equipment result from the risk analysis and the risk assessment for the
final machine or plant.
Selection, mounting, installation, commissioning, operation and maintenance of the safety equipment
must be performed by the system integrator (the person who incorporates the product in a machine
pursuant to Directive 2006/42/EU, i.e., for example, the machine builder) and/or the operator.
The product requires at least the following safety equipment:
■
Emergency Stop system as per IEC 60204-1 / ISO 13850
■
Lockable main switch to interrupt the complete power supply to all electrical components of the
product
Mounting instructions_062019_1.0_en
37 / 62
