Rotary indexing ring NR
Product description

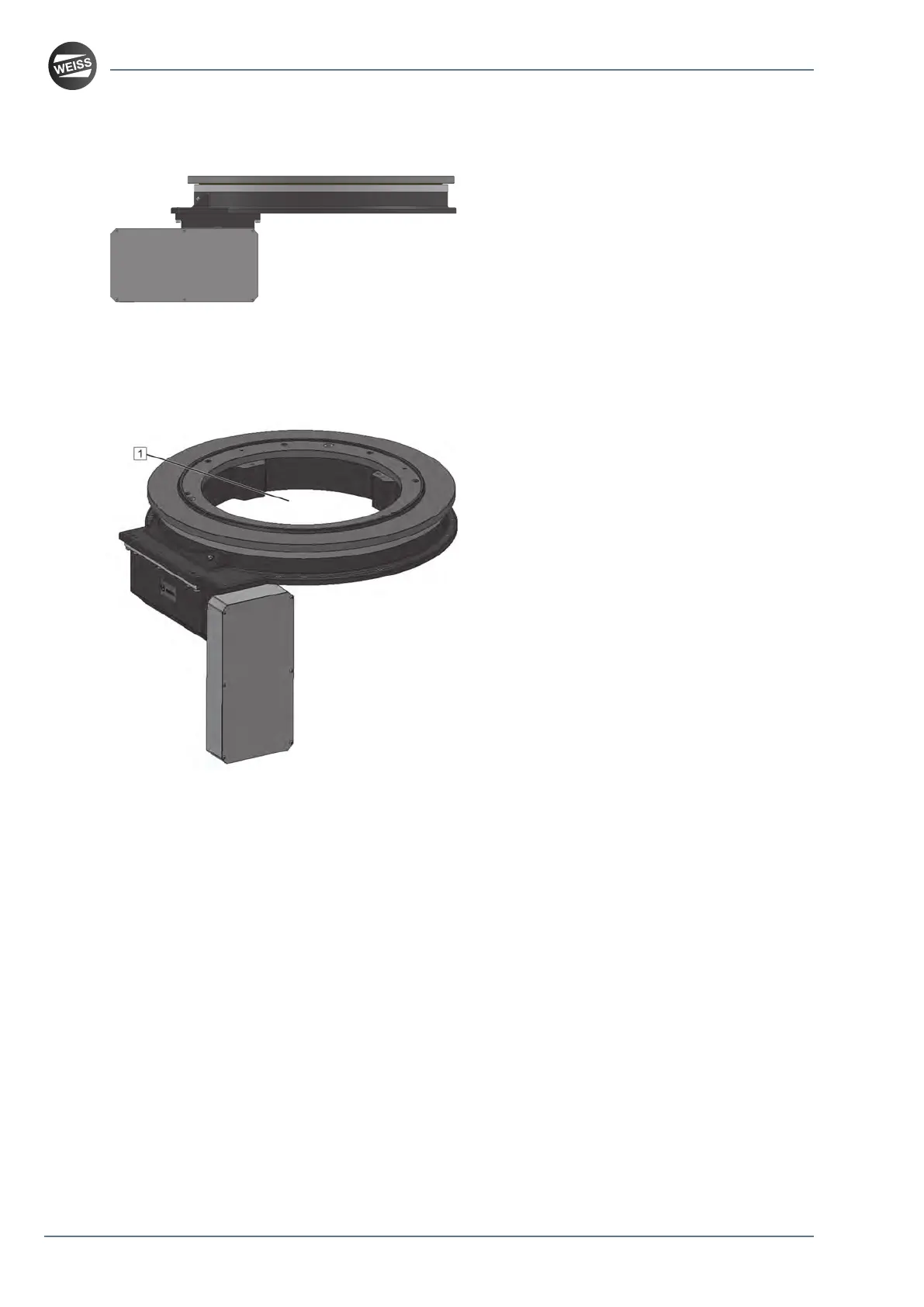

Drive housing outside by 90°
The position of the motor can be modified by changing the position of the drive housing.
3.7 Passage of media
The inner opening [1] can be used for the pas-
sage of media.
16 / 62
Mounting instructions_062019_1.0_en
