Rotary indexing ring TR
Maintenance

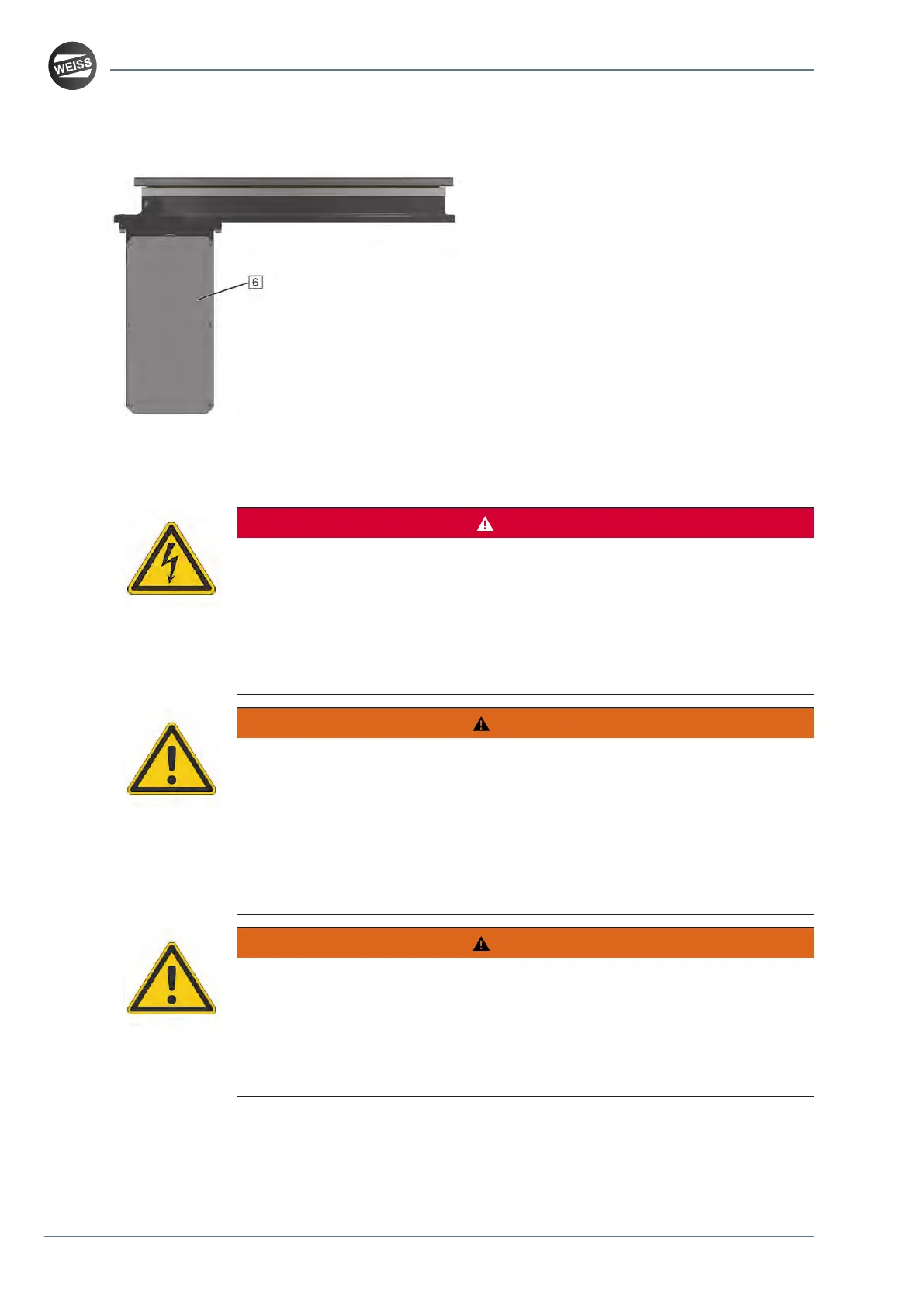

5. Mount the cover [6] by means of the screws.
6. Remove all tools and equipment.
7. Perform a test run.
15.6 Inspecting the holding brake
DANGER
ELECTRIC SHOCK CAUSED BY LIVE PARTS
Failure to follow these instructions will result in death or serious injury.
■
Disconnect the mains supply voltage before performing the work and ensure that
it cannot be switched on.
■
Verify that no hazards can be caused by electrically conductive objects.
■
Verify that all cables for the power supply are disconnected from power.
WARNING
UNANTICIPATED MOVEMENT OF THE ROTARY RING/THE ROTARY RING
The gear is not self-locking. When the drive and the output flange/rotary ring are
decoupled, the output flange/rotary ring can move.
Failure to follow these instructions can result in death, serious injury, and
equipment damage.
■
Block or safeguard the output flange/rotary ring in such a way that a movement
of the output flange/rotary ring is safely prevented before releasing the holding
brake or decoupling the drive and the output flange/rotary ring.
WARNING
MISSING PROTECTIVE EQUIPMENT
Failure to follow these instructions can result in death, serious injury, and
equipment damage.
■
Immediately reinstall protective equipment that you may have removed to
perform maintenance work after having completed the maintenance work and
verify the effectiveness of the protective equipment.
62 / 79
Mounting instructions_062019_4.0_en
