Rotary indexing ring TR
Product description
3.3 Nameplate

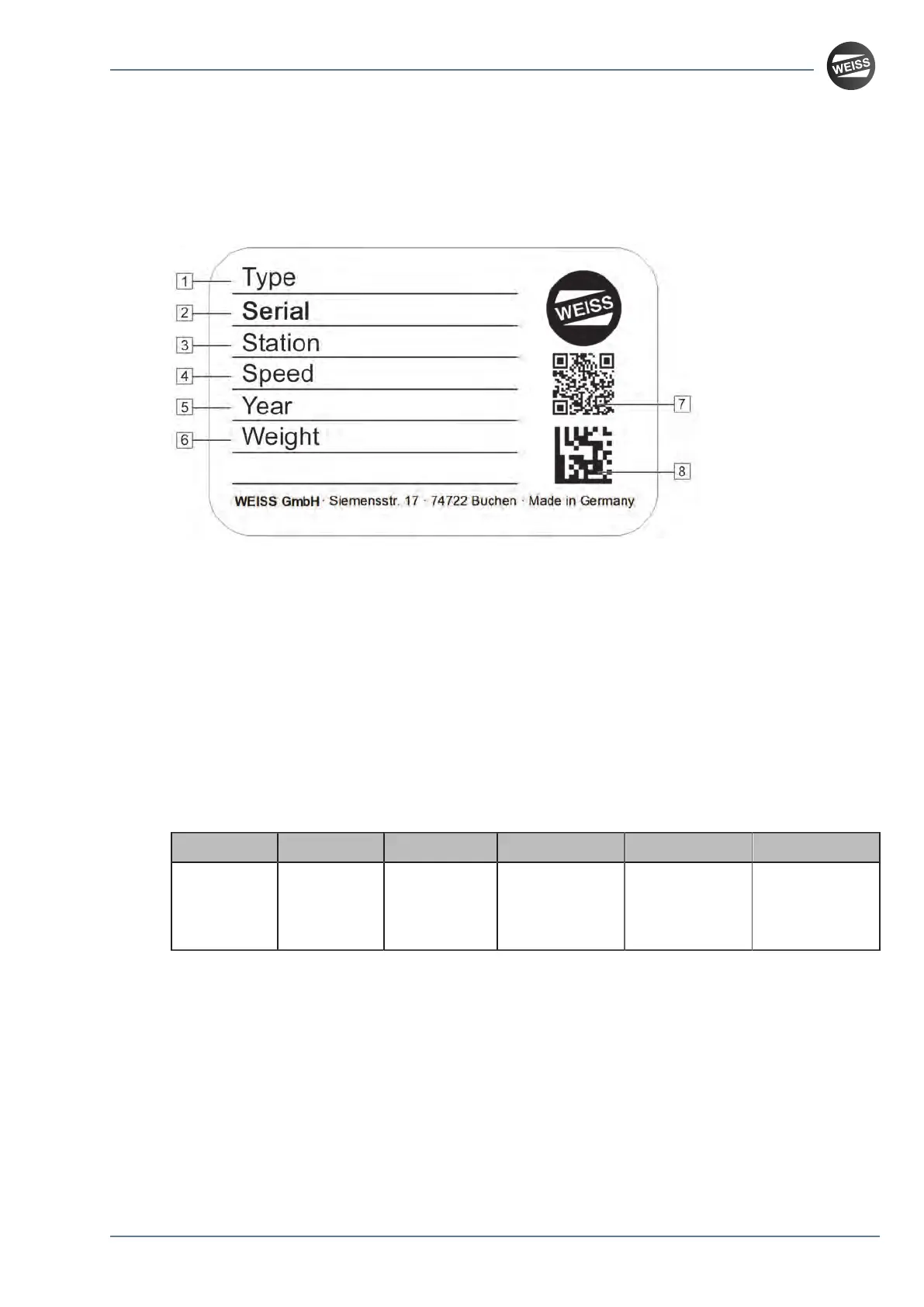

The nameplate is attached to the housing of the product; it contains the following information:
Figure 1: Example of nameplate
1 Type 5 Year of manufacture
2 Serial number 6 Weight
3 Indexing stops 7 QR code company website
4 Velocity stage 8 DM code serial number
The scope of delivery contains a second nameplate. If the factory-mounted nameplate is covered
by attachments, the second nameplate can be attached at a readily visible position of the product or
machine for identification of the product.
3.4 Type code
Structure of the type code:
Type Size Version Encoder Gear stage Motor
TR
0750
1100
1500
2200
A - - -
Mounting instructions_062019_4.0_en
13 / 79
