Rotary indexing ring TR
Maintenance

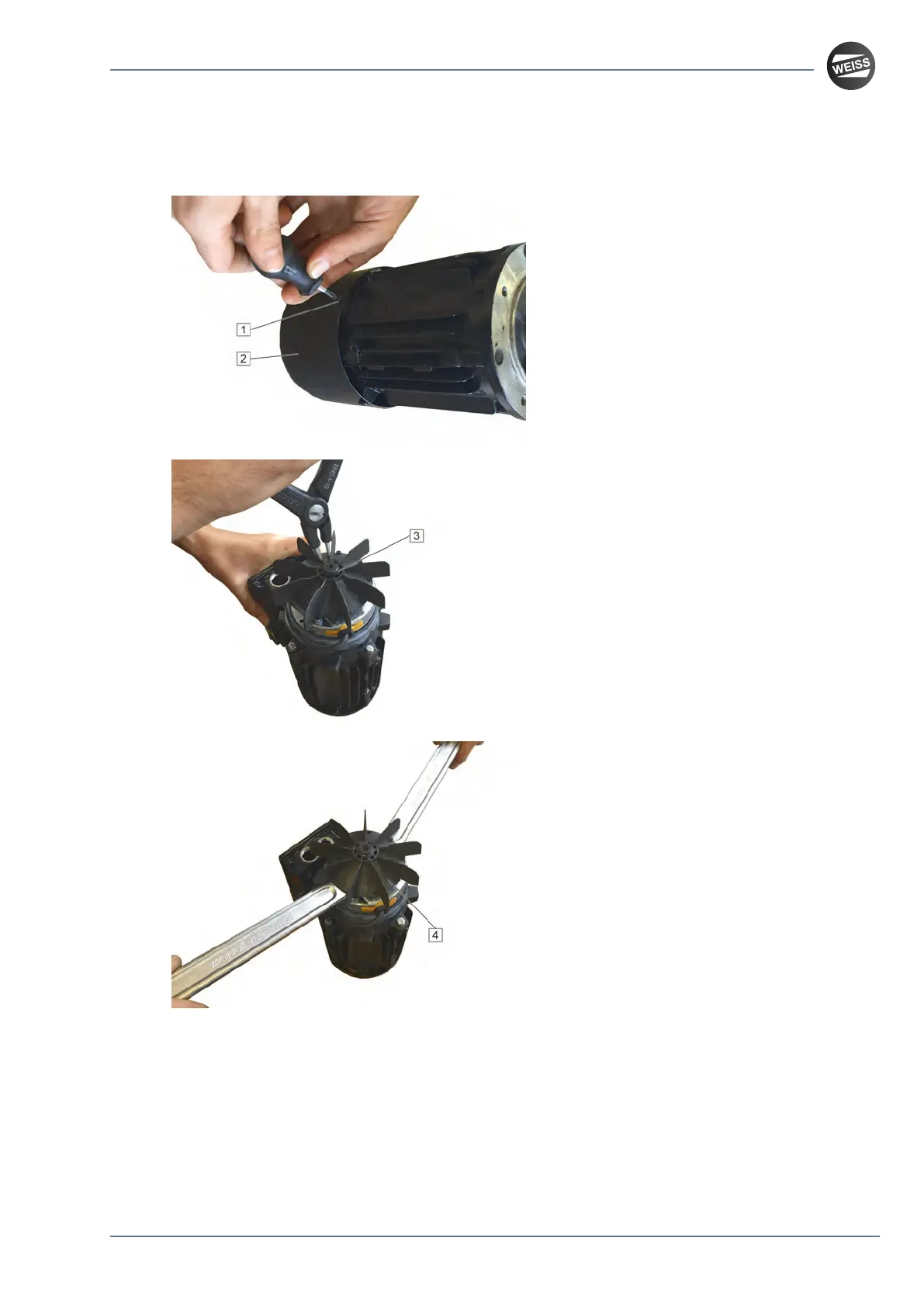

Dismounting the holding brake
1.
Remove all screws [1] of the fan cap [2] and
pull off the fan cap [2] from the motor
.
2.
Remove the circlip [3] from the fan wheel.
3.
Remove the fan wheel [4] with two mounting
levers at the inside of the plastic collar
.
4.
Disconnect the cables of the holding brake in
the terminal box of the motor (see operating
instructions of the motor manufacturer).
Mounting instructions_062019_4.0_en
69 / 79
68
70
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
5
About These Mounting Instructions
5
Intended Use
5
Predictable Incorrect Application
5
Applicable Documents
6
Warranty
7
2 Safety
8
Safety Messages and Hazard Categories
8
Hazard Symbols
8
Responsibilities of the System Integrator And/Or Operator
9
Qualification of Personnel
9
3 Product Description
10
Overview
10
Function Description
12
Nameplate
13
Type Code
13
Mounting Positions
14
Drive Positions
15
Passage of Media
16
4 Technical Data
17
General
17
Motor
17
Holding Brake
20
Inductive Sensor
20
DRIVE-Cliq Encoder (Optional)
20
Climatic Environmental Conditions "Operation
21
Climatic Environmental Conditions "Transportation and Storage
21
Dimensions
22
Load Data
26
5 Packaging
27
Types of Packaging
27
Unpacking the Product
27
Verification of the Delivery
27
6 Transportation
28
Transporting the Product
28
Load Lifting and Handling Equipment
29
Fastening the Load Lifting and Handling Equipment
29
7 Storage
31
Storing the Product
31
8 Mounting
32
Prerequisites for Mounting
32
Equipment and Tools
32
Tightening Torques and Property Classes
33
Bolting down the Product
33
Displacing the Drive Housing
34
Mounting Additional Components
36
Mounting Safety Equipment
39
9 Electrical Connection
40
Connection Diagram Supply Voltage
40
10 Controller
42
Basic Information on Control
42
External Controller (PLC)
43
11 Commissioning
45
Prerequisites for Commissioning
45
Performing Commissioning
45
12 Operation
47
Basic Information on Operation
47
13 Troubleshooting
48
Issue, Cause and Remedy
48
14 Cleaning
50
Performing Cleaning
50
15 Maintenance
52
Maintenance Plan
52
Lubricant
52
Replacing the Motor
52
Inspecting the Toothed Belt
57
Replacing the Toothed Belt
59
Inspecting the Holding Brake
62
Readjusting the Air Gap of the Holding Brake
64
Replacing the Holding Brake
67
Replacing the Inductive Sensor
72
16 Decommissioning
76
Decommissioning the Product
76
17 Dismounting
76
Dismounting the Product
76
18 Disposal
76
Disposing of the Product
76
19 Service and Spare Parts
77
Worldwide Service
77
Ordering Spare Parts
78
