Rotary indexing ring TR
Maintenance

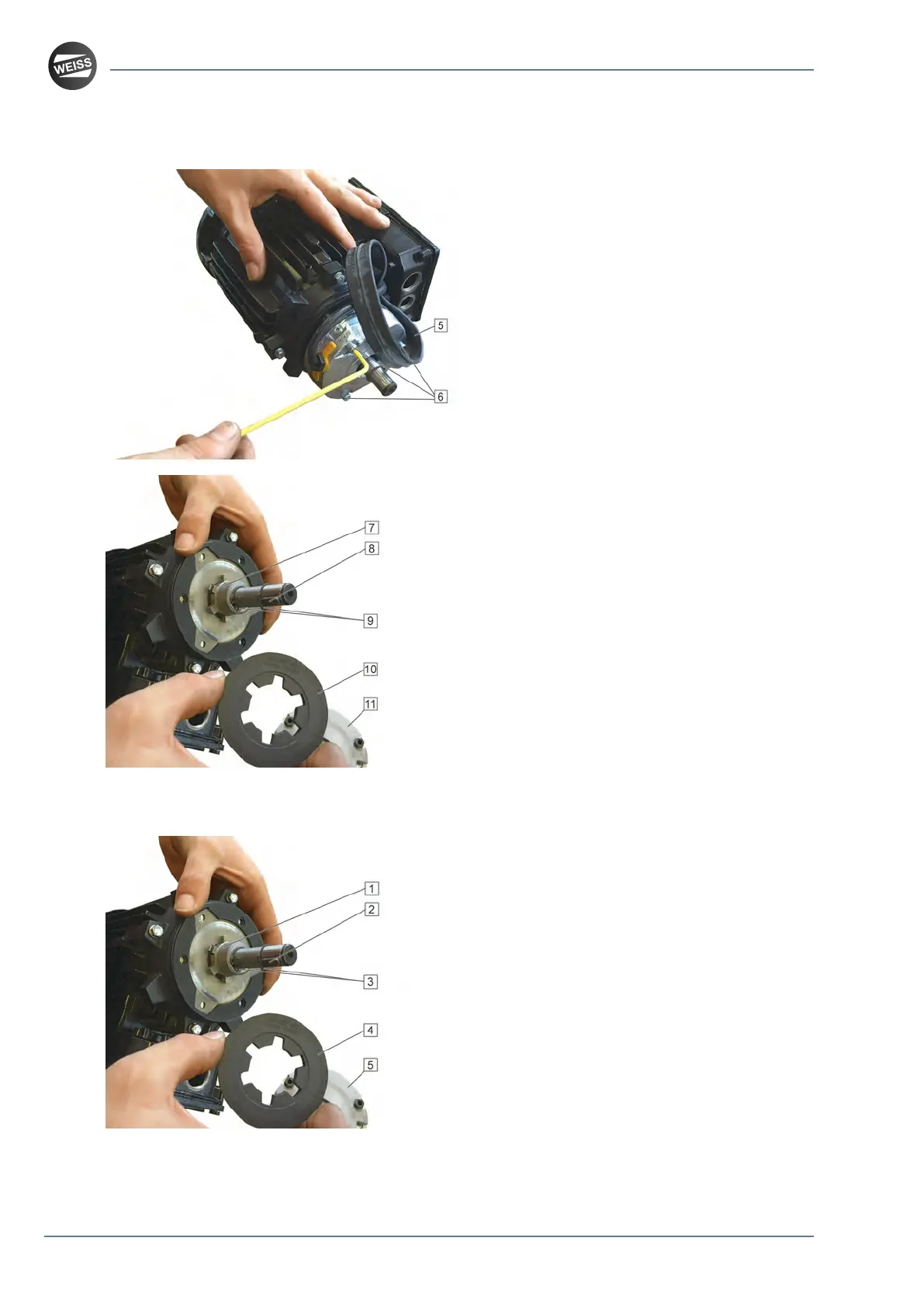

5. Remove the protective rubber [5].
6. Loosen the screws [6] of the holding brake.
7. Remove the holding brake [11] and the brake
lining [10].
8. To remove the hub [7], remove the two
circlips [9] and the parallel key [8].
9. Blow out abrasion material with compressed
air.
Mounting the holding brake
1. Insert the new hub [1] and fit the two circlips
[3] and the parallel key [2].
2. Fit the new brake lining [4] and the holding
brake [5].
70 / 79
Mounting instructions_062019_4.0_en
