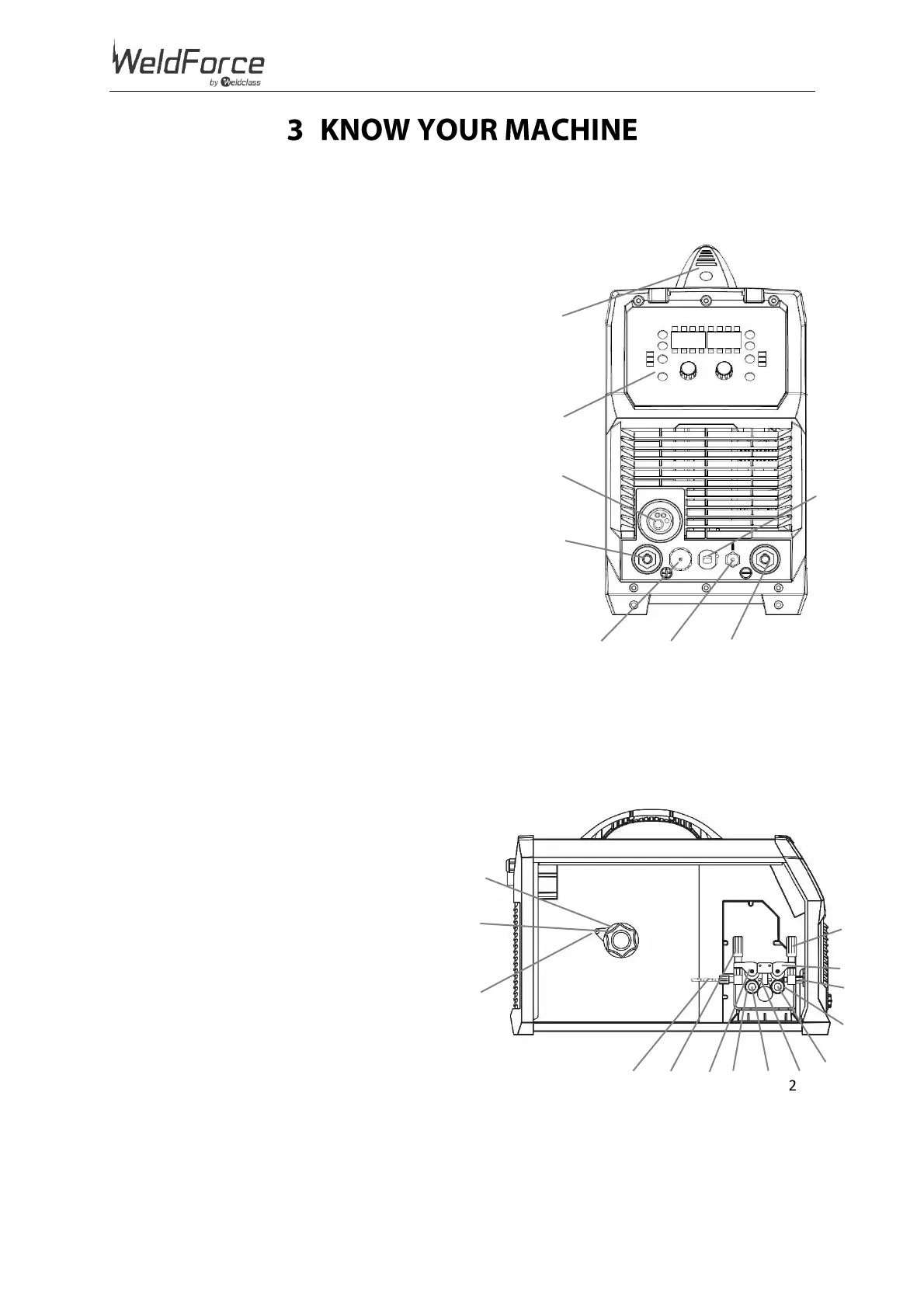

Weldclass WeldForce WF-255MST - 3 Know Your Machine; Machine Front; Machine Side

.
10 © Weldclass 2019 | E.&O.E. | Edition 2.2
3.1 Machine Front
1. Carry Handle
2. Control panel
3. Positive (+) Welding Power Output Connection Socket
4. MIG Torch Euro Connector
5. Spool Gun/TIG torch Interface Connector
6. TIG Torch Gas Connector
7. Negative (-) Welding Power Output Connection Socket
8. MIG Torch Polarity Change Tail
3.2 Machine Side
9. Spool Post
10. Spool Nut
11. Spool Lock Pin
12. Wire Inlet Guide
13. Left Wire Feed Tension Adjustment Lever
14. Left Wire Feed Tension Arm/Top Roller
15. Left Drive Roller
16. Left Drive Roller Retainer Knob
17. Centre Wire Guide Tube
18. Right Drive Roller Retainer Knob
19. Right Drive Roller
20. Outlet Wire Guide Tube
21. Right Wire Feed Tension Arm/Top Roller
22. Right Wire Feed Tension Adjustment Lever
Figure 1
Figure 2
4
3
5
6
7
2
1
8
11
20
14
12
13
16
10
9
15
19
21
22
18
20
