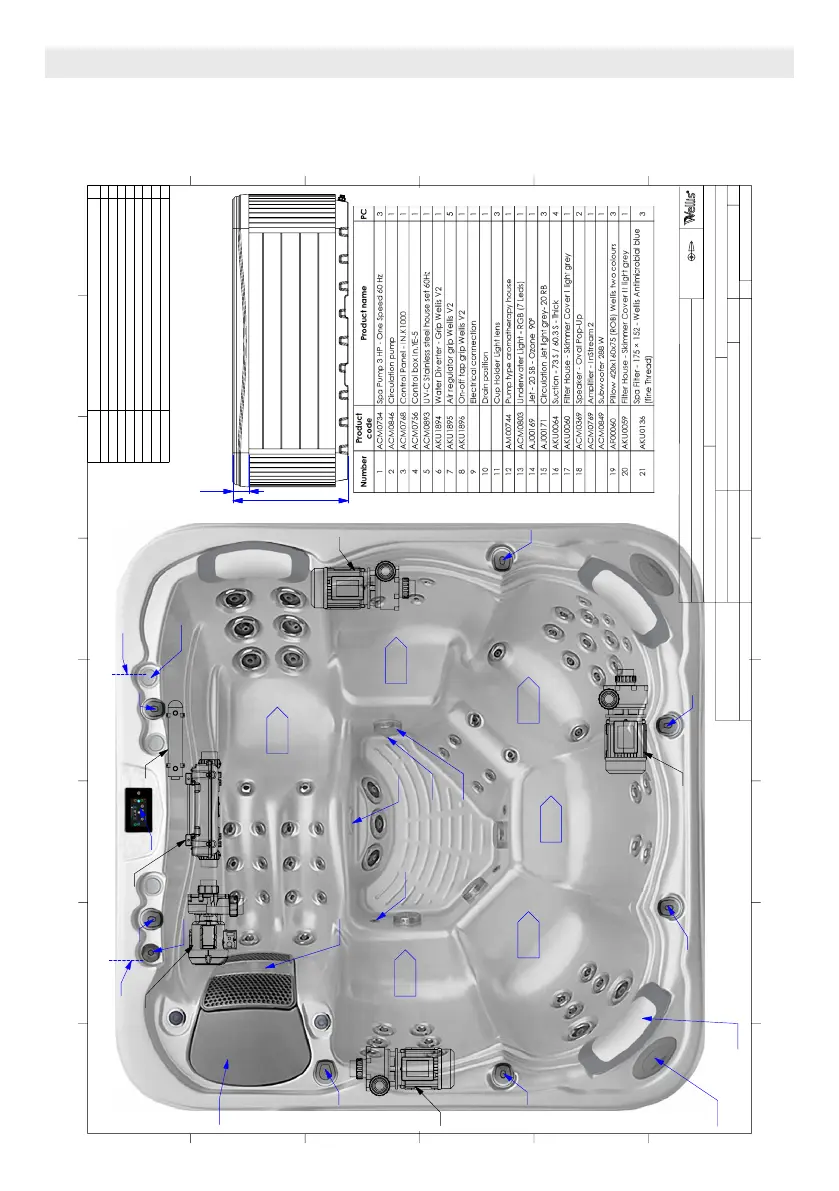

Wellis MARBELLA - Page 20

100
940
1
5
100
4
1
1
2
6
3
700
716 716
686
590
697
7
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Product code
Jets
PC
AJ00214
Jet 2" - transparent 1 Hole transparent V3 Wellis
27
AJ00216
Jet 3" - transparent 1 Hole transparent V3 Wellis
16
AJ00217
Jet 3" - transparent 1 Hole rotational transparent V3 Wellis
10
AJ00218
Jet 5" - transparent 1 Hole transparent V3 Wellis
7
AJ00219
Jet 5" - transparent 1 Hole rotational transparent V3 Wellis
4
AJ00226SET
2" jet body V3 transparent set
27
AJ00228SET
3" jet body V3 transparent set
26
AJ00230SET
5" jet body V3 transparent set
11
100
940
A
B B
C C
D D
E E
F F
8 8
7 7
6 6
5 5
4 4 3 2 1
P-000000
387 kg
FJ_WM00571_ENG_USA_Kilimanjaro medence
Kilimanjaro USA
Samu József
A3
page 1 / 1
File path - - - - > d:\WELLIS_PDM\Uj_Dokumentum rendezés\FJ_WM_100\
File name:
A
M
1:15
WM00571
Number:
Sheet name: Created:
2019. 05. 30.
Drawer:
szomo - 2019. 05. 30. 14:03:09
Approved by:
Weight of the SPA:
Pr. No:
Wellis Magyarország Zrt.
Projection
Fe. No:
F-000000
Dimension SPA:
2300x2300x940 mm
Raklap (ELB230,KIL) 2320x940x145 USA - AE00611
Min. electrical needs:
2x120 V - 48A - 60Hz - 4 kW Heater
Rim height:
100 mm
Control box
:
GECKO YE-5 + K1000
Product family:
USA Line
Minimum water:
1500 liter 484 kg
Water disp.: 1 person ~75 kg
MAJOR COMPONENTS OF THE PRODUCT
MONTE ROSA (KILIMANJARO)
20
