Wellis MARBELLA - Page 26

MILANO (PALERMO 2018)

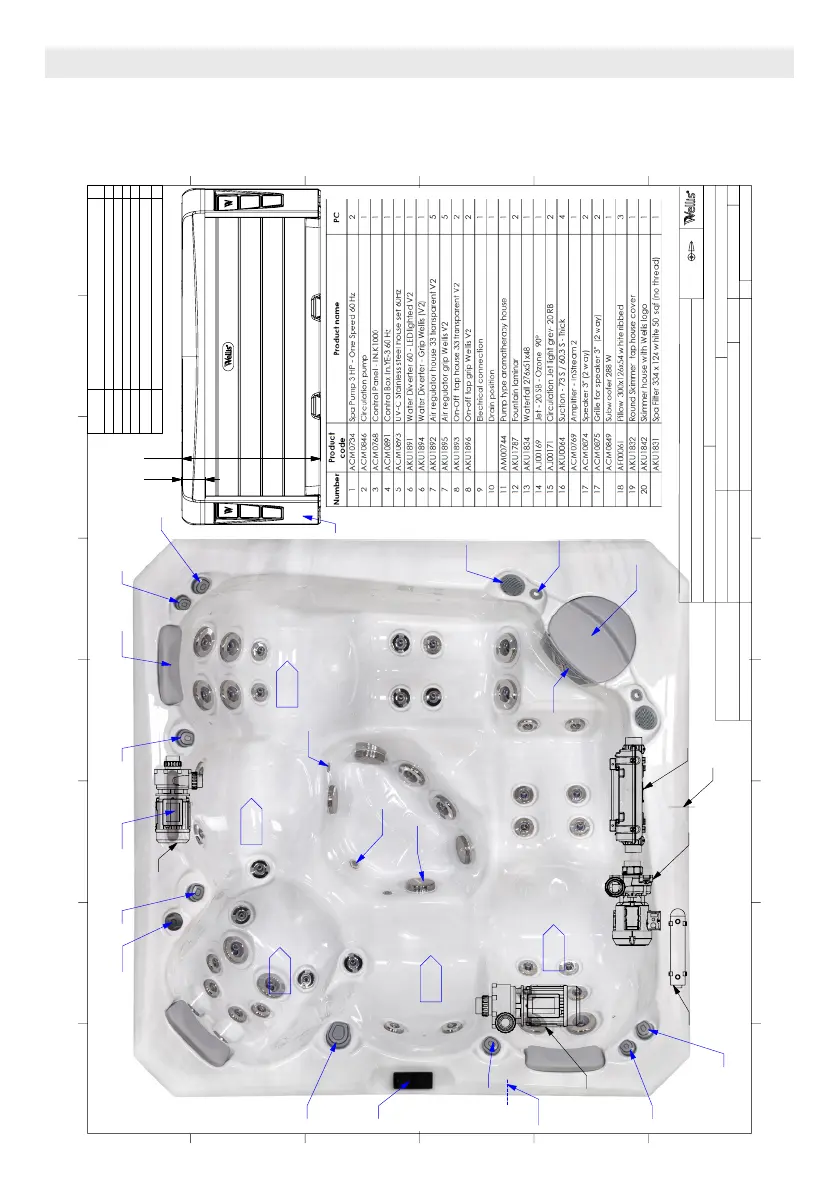

MAJOR COMPONENTS OF THE PRODUCT
140
900
1
1
5
4
9
2
3
7
8
7
877
6
7
458
10
458
592
592
678
11
12
13
14
15
16
17
18
19
20
20
Cikkszám
Jetbetét
db
AJ00216
Jet 3" - transparent 1 Hole transparent V3 Wellis
20
AJ00217
Jet 3" - transparent 1 Hole rotational transparent V3 Wellis
10
AJ00218
Jet 5" - transparent 1 Hole transparent V3 Wellis
6
AJ00219
Jet 5" - transparent 1 Hole rotational transparent V3 Wellis
6
AJ00228SET
3" jet body V3 transparent set
30
AJ00230SET
5" jet body V3 transparent set
12
140
900
A
B B
C C
D D
E E
F F
8 8
7 7
6 6
5 5
4 4 3 2 1
P-000000
335 kg
FJ_WM00577_ENG_USA_Palermo 2018 medence
Palermo 2018 Deluxe USA
A3
page 1 / 1
File path - - - - > d:\WELLIS_PDM\Uj_Dokumentum rendezés\FJ_WM_100\
File name:
M
1:15
WM00577
Number:
Sheet name: Created:
2019. 05. 30.
Drawer:
szomo - 2019. 05. 30. 15:18:37
Approved by:
Weight of the SPA:
Pr. No:
Wellis Magyarország Zrt.
Projection
Fe. No:
F-000000
Dimension SPA:
2180x2180x900 mm
Pallet MAL PAL ELB18 2200x900x144 - AE00610
Min. electrical needs:
2x120 V - 37A - 60Hz - 4 kW Heater
Rim height:
140 mm
Control box
:
Gecko IN.YE-3 + IN.K1000
Product family:
USA Line
Minimum water:
1050 liter 383 kg
Water disp.: 1 person ~75 kg
