Standard ACL can allow or block any communication from a network or to a network, or prohibit all communica‑
tion.
Extended ACL provides extended setting options for source and destination networks within an ACL. Protocols from
dierent levels can be selected. This means that individual services such as Web (http), FTP, Telnet, etc. can be
allowed or forbidden.

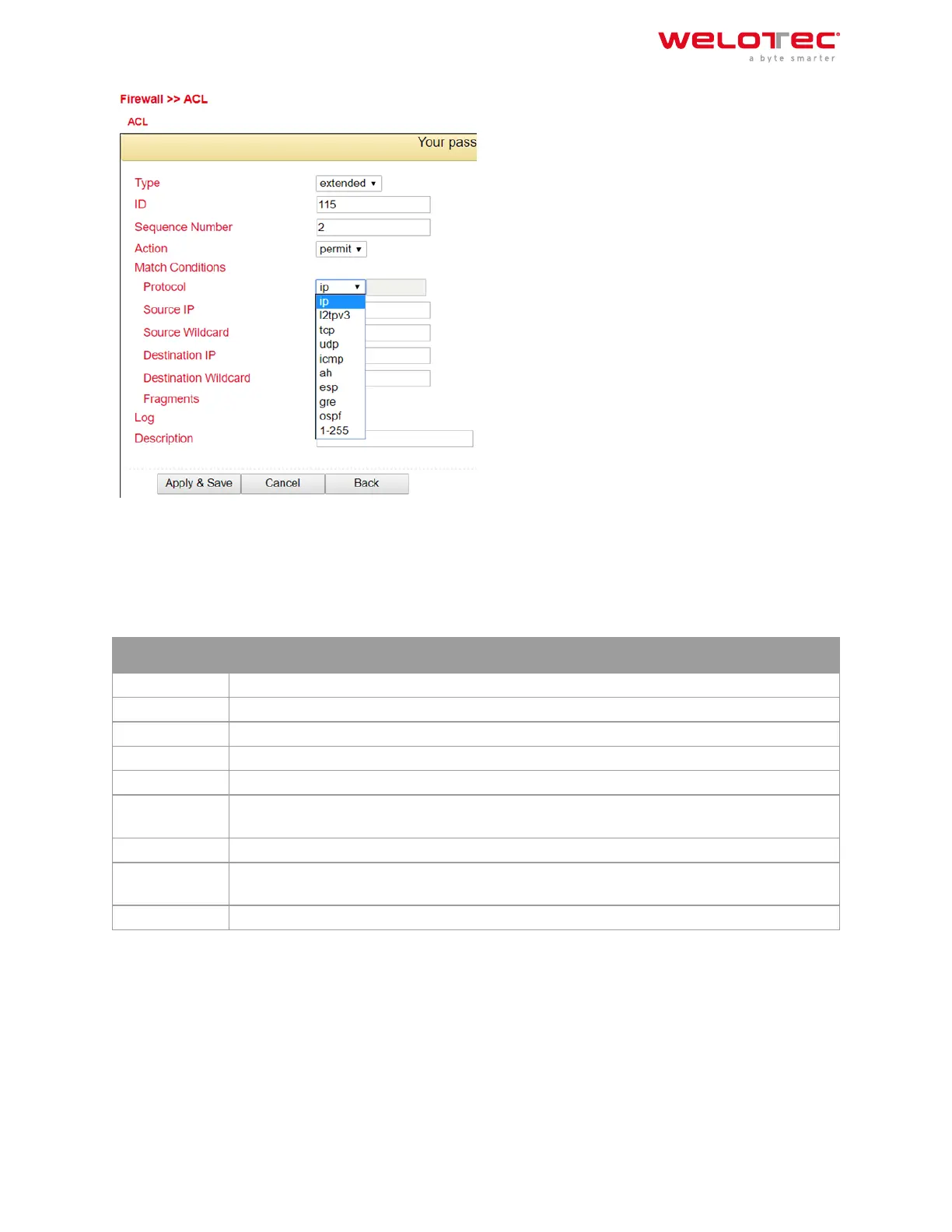

Parameter
Description
Type extended or standard
ID ID 100 is preconfigured by default. Further IDs can be configured freely.
Action Permit / Deny
Protocol Protocols that are available
Source IP Source IP address or network e.g. 192.168.2.0
Source Wild‑
card
Source wildcard is the wildcard address of the subnet. E.g. for the subnet mask 255.255.255.0
the wildcard address is 0.0.0.255
Destination IP Destination IP address or network e.g. 172.16.0.0
Destination
Wildcard
Target wildcard is the wildcard address of the target subnet e.g. with subnet mask 255.255.0.0
the wildcard address is 0.0.255.255
Description Text Description field for the ACL
