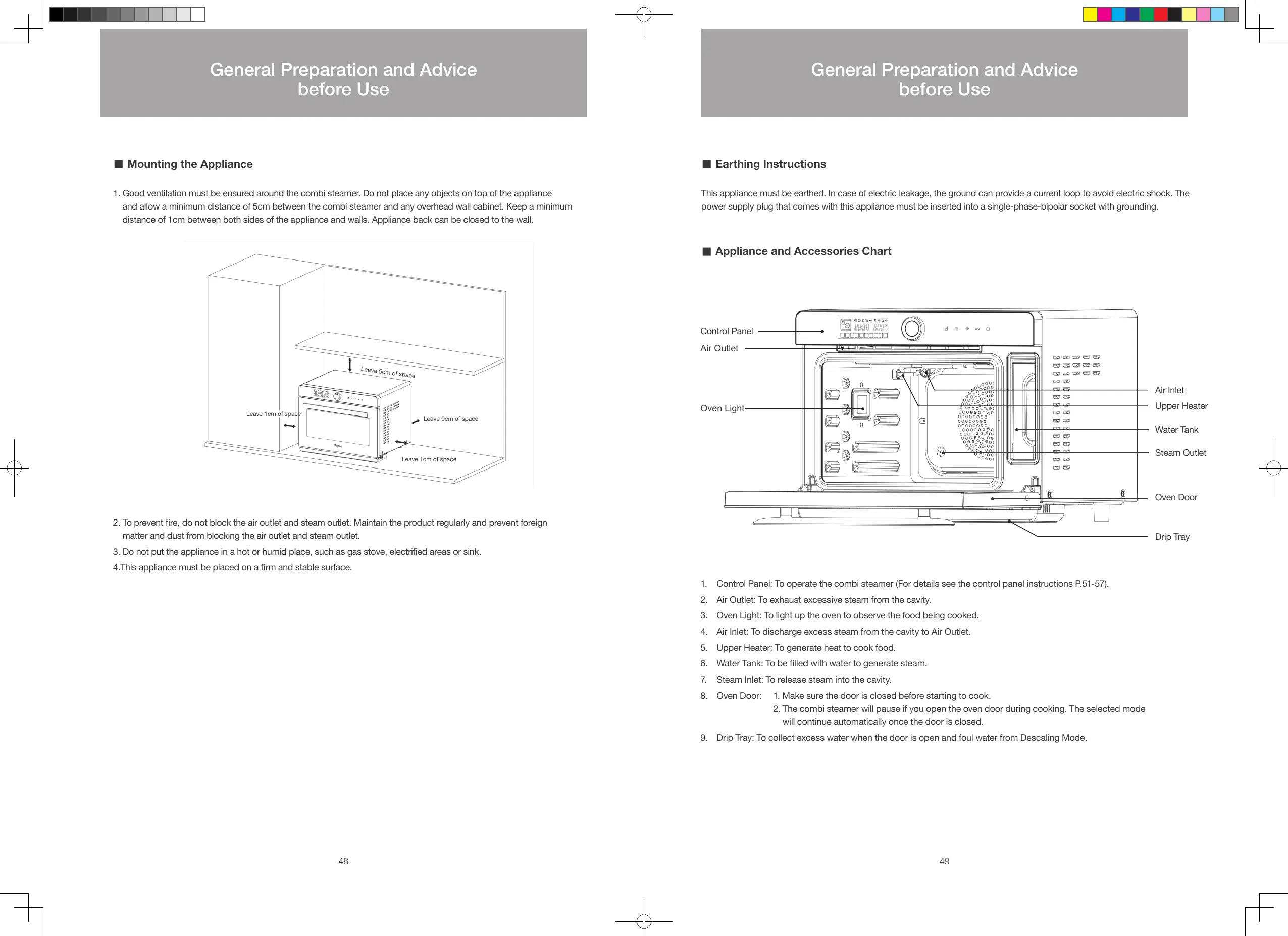

Mounting the Appliance
1. Good ventilation must be ensured around the combi steamer. Do not place any objects on top of the appliance
and allow a minimum distance of 5cm between the combi steamer and any overhead wall cabinet. Keep a minimum
distance of 1cm between both sides of the appliance and walls. Appliance back can be closed to the wall.
1. Control Panel: To operate the combi steamer (For details see the control panel instructions P.51-57).
2. Air Outlet: To exhaust excessive steam from the cavity.
3. Oven Light: To light up the oven to observe the food being cooked.
4. Air Inlet: To discharge excess steam from the cavity to Air Outlet.
5. Upper Heater: To generate heat to cook food.
6. Water Tank: To be lled with water to generate steam.
7. Steam Inlet: To release steam into the cavity.
8. Oven Door: 1. Make sure the door is closed before starting to cook.
2. Th e co mbi s teame r will pa use if you o pen the oven doo r dur ing coo king. Th e se lecte d mo de
will continue automatically once the door is closed.
9. Drip Tray: To collect excess water when the door is open and foul water from Descaling Mode.
Control Panel
Air Inlet
Upper Heater
Water Tank
Steam Outlet
Oven Door
Drip Tray
Air Outlet
Oven Light
Leave 1cm of space
Leave 5cm of space
Leave 1cm of space
Leave 0cm of space
2. To prevent re, do not block the air outlet and steam outlet. Maintain the product regularly and prevent foreign
matter and dust from blocking the air outlet and steam outlet.
3. Do not put the appliance in a hot or humid place, such as gas stove, electried areas or sink.
4.This appliance must be placed on a rm and stable surface.
■
Earthing Instructions
This appliance must be earthed. In case of electric leakage, the ground can provide a current loop to avoid electric shock. The
power supply plug that comes with this appliance must be inserted into a single-phase-bipolar socket with grounding.
■
