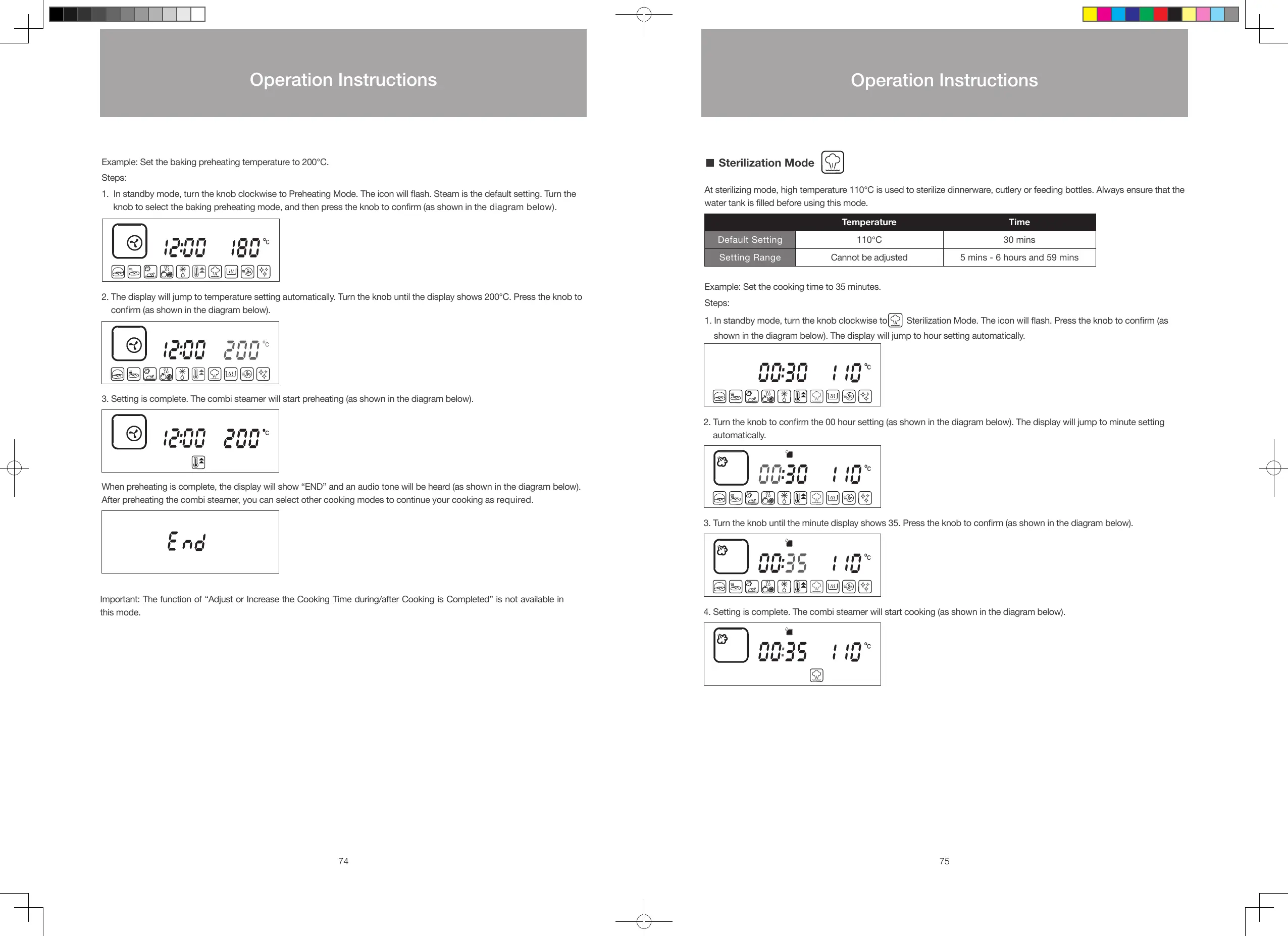

Whirlpool CS2320 - Sterilization Mode Operation

2. The display will jump to temperature setting automatically. Turn the knob until the display shows 200°C. Press the knob to
conrm (as shown in the diagram below).
3. Setting is complete. The combi steamer will start preheating (as shown in the diagram below).
When preheating is complete, the display will show “END” and an audio tone will be heard (as shown in the diagram below).
After preheating the combi steamer, you can select other cooking modes to continue your cooking as required.
Example: Set the baking preheating temperature to 200°C.
Steps:
1. In standby mode, turn the knob clockwise to Preheating Mode. The icon will ash. Steam is the default setting. Turn the
knob to select the baking preheating mode, and then press the knob to conrm (as shown in the diagram below).
Important: The function of “Adjust or Increase the Cooking Time during/after Cooking is Completed” is not available in
this mode.
■
Sterilization Mode
At sterilizing mode, high temperature 110°C is used to sterilize dinnerware, cutlery or feeding bottles. Always ensure that the
water tank is lled before using this mode.
Temperature Time
Default Setting 110℃ 30 mins
Setting Range Cannot be adjusted 5 mins - 6 hours and 59 mins
Example: Set the cooking time to 35 minutes.
Steps:
1. In standby mode, turn the knob clockwise to
Sterilization Mode. The icon will ash. Press the knob to conrm (as
shown in the diagram below). The display will jump to hour setting automatically.
2. Turn the knob to conrm the 00 hour setting (as shown in the diagram below). The display will jump to minute setting
automatically.
3. Turn the knob until the minute display shows 35. Press the knob to conrm (as shown in the diagram below).
4. Setting is complete. The combi steamer will start cooking (as shown in the diagram below).
74 75
Operation Instructions
Operation Instructions
S48893-Whirlpool Combi Steamer User Manual_EN_V12.indd 74-75 26/7/2016 下午12:55
