15.4 Connecting the drain hose
The hose may not be shortened or damaged.
Do not bend the hose when laying it.
The drain hose is located in the machine.
INFO The machine is equipped with a drain pump. The on-site water drain must have a trap. The maxi-
mum height of the on-site water drain is 650 mm.

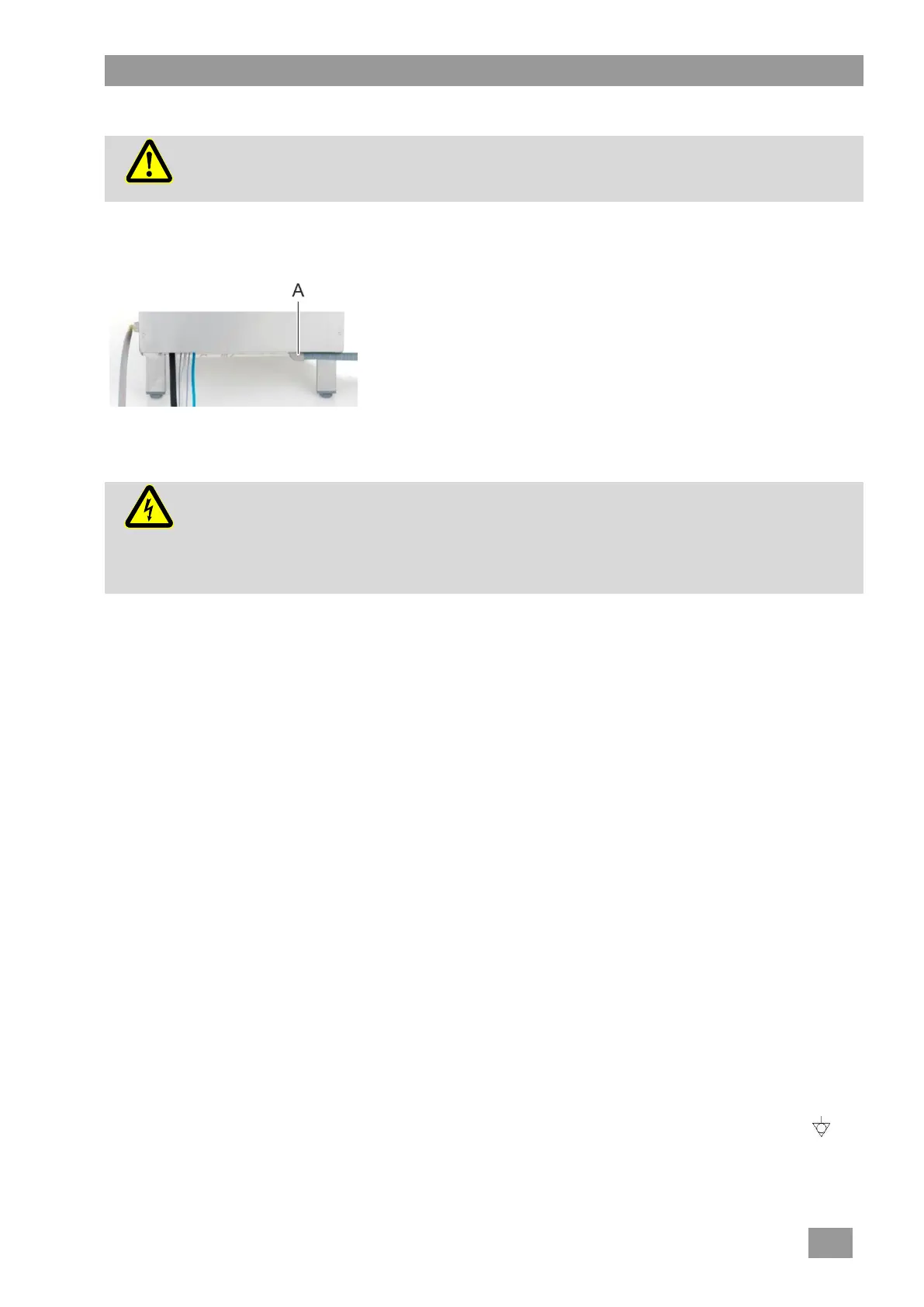

Connect the drain hose (A) to the machine.
Connect the drain hose to the on-site water drain.
16 Electrical connection
Danger to life. Live components.
The machine and the relevant additional devices must be connected by an electrical compa-
ny authorised by the relevant electricity supplier as per the locally applicable standards and
regulations.
When performing installation and maintenance work, unplug the machine from the power
network. Check that there is no voltage.
IMPORTANT Observe the connection diagram for detailed information.
The electrical safety of this machine is guaranteed only if it is connected to a correctly installed protective
circuit and a residual current circuit breaker. It is very important that this basic safety requirement is test-
ed and in case of doubt the house installation is checked by a qualified electrician.
The circuit diagram must be observed.
The electrical connection of the machine must correspond with the data of the rating plate.
A fixed connection must as a priority be installed for machines that are delivered without a plug.
When the machine is connected permanently (without a plug), a mains disconnector with all-pole separa-
tion from the network must be installed. The mains disconnector switch must have a contact opening
width of at least 3 mm, and must also be lockable in the neutral position. The installation site must be
near the machine and easily accessible.
The electrical connection must be secured as a separately fused circuit with slow fuses or circuit break-
ers. The protection depends on the total power consumption of the machine. The total connected load is
specified on the rating plate of the machine.
Install a residual current circuit breaker in the electrical supply line.
16.1 Requirements for the mains cable
Cable type: Type H07 RN-F or equivalent
The wires must be fitted with wire end ferrules.
Cross section and number of cores: suitable for on-site power and protection
for more information see the sticker in the front panel
16.2 Establishing an earth connection
Connect the machine into the equipotential bonding system.
INFO The terminal screw is located behind the right rear leg of the machine. It is identified with the
symbol.
