Before working with the machine
4
4 Before working with the machine
 Have the machine installed by an authorised service technician or your Winterhalter dealer ( 14).
 Have the machine connected as per the locally applicable standards and the regulations by authorised
mechanics (water, waste water, electrical system) ( 15 and 16).
 After connecting the water and the power properly, contact the relevant Winterhalter dealer or your dealer
for the commissioning of the machine and for providing training in its operation. Get yourself and your op-
erating personnel trained in the operation of the machine.
5 Machine description

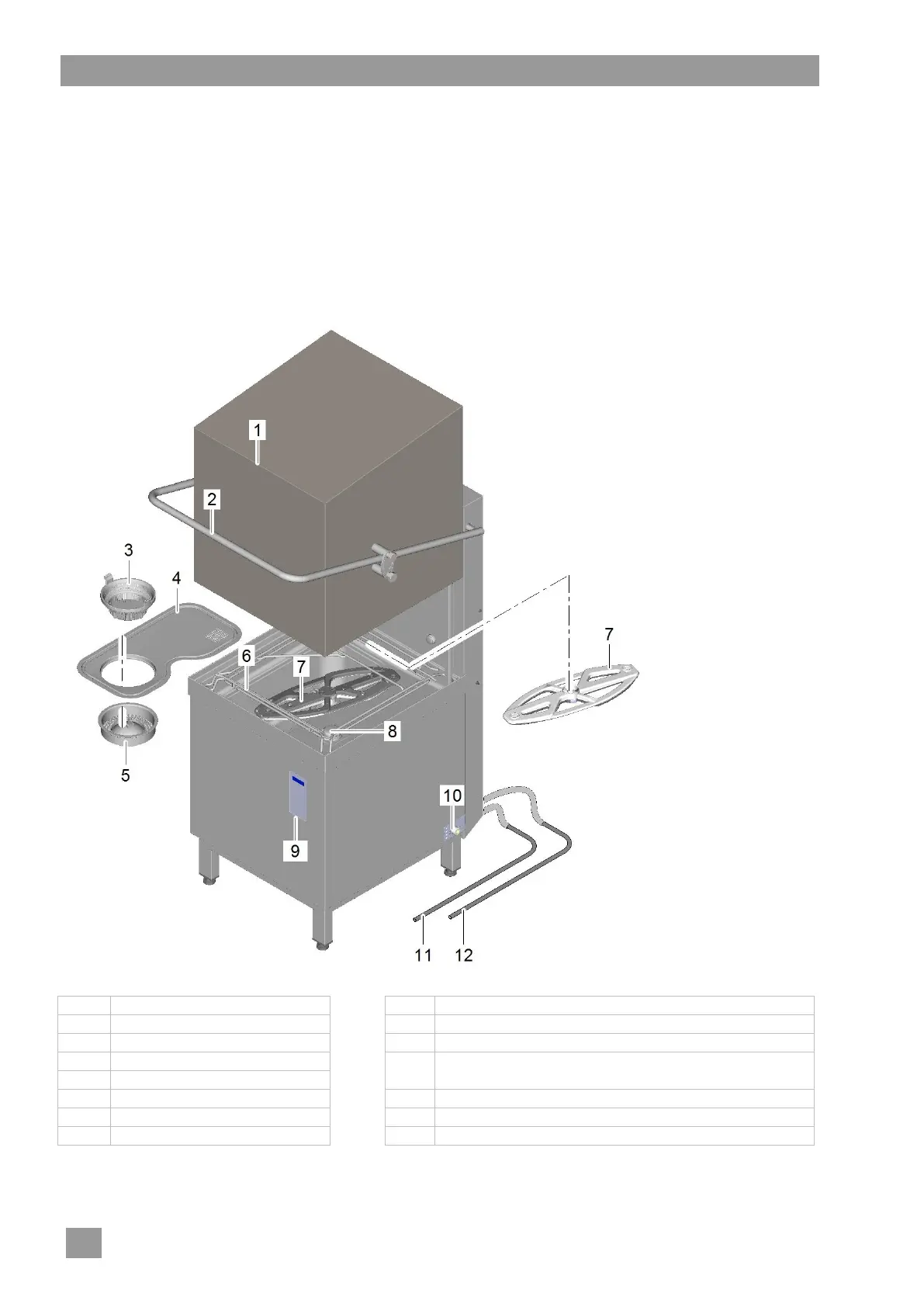

5.1 Overview
Pos.
Designation
Pos.
Designation
(1)
Hood
(8)
Integral water softener (optional)
(2)
Handle
(9)
Operating panel
(3)
Filter basket
(10)
Connection for water supply hose and bushings for
cables and hoses
(4)
Strainer
(5)
Pump inlet filter
(11)
Suction stick for rinse aid (blue dosing hose)
(6)
Rack guide
(12)
Suction stick for detergent (transparent dosing hose)
(7)
Rotating wash field
