Shadow 8 User Manual 1139300
Installation and Checkout 2-19

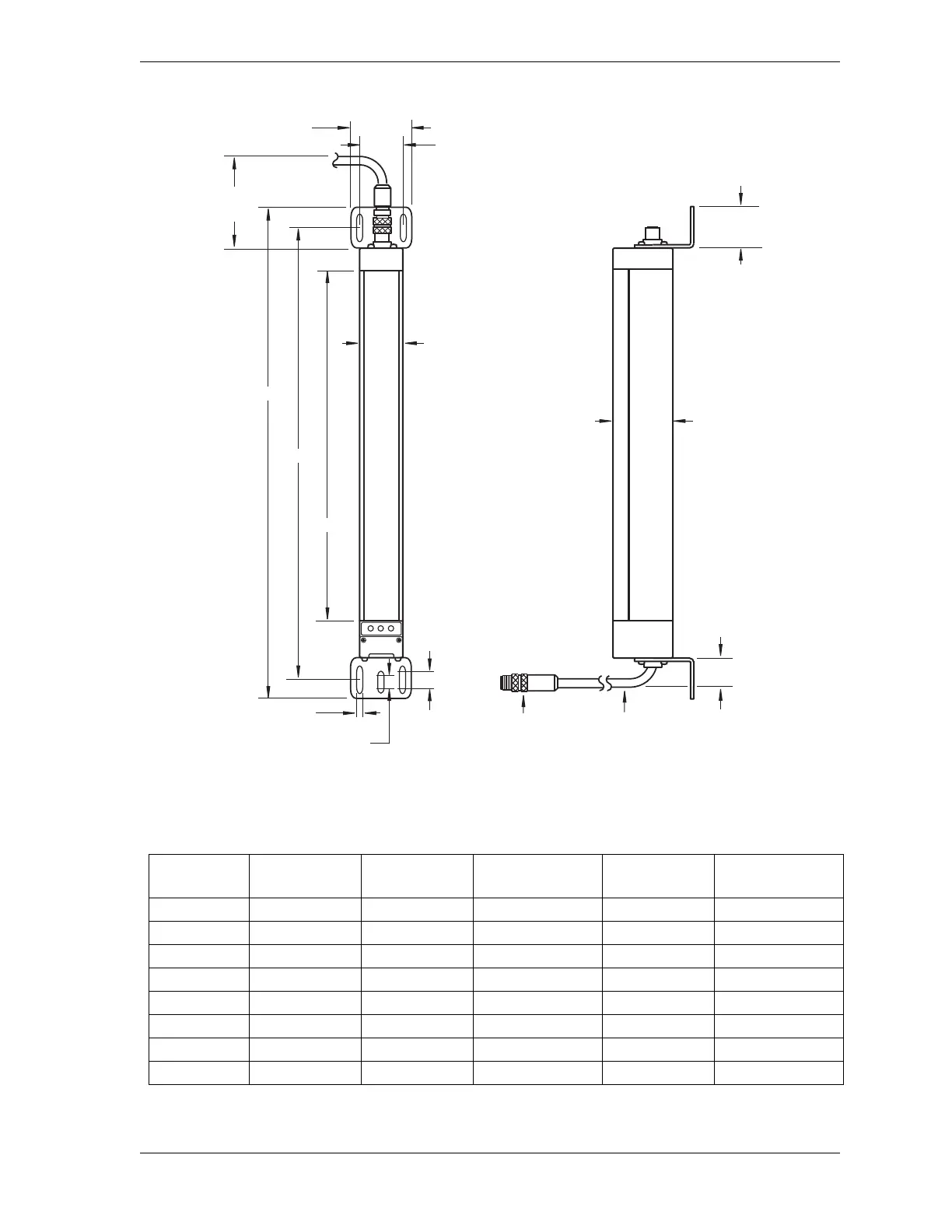

Figure 2-6. Shadow 8 Optic Heads: Mounting Dimensions
Table 2-2. Light Curtain Dimensions in Inches (Millimeters) (see Figure 2-6)
Scanning
Height
A B (Main) B (Extension) C (Main) C (Extension)
9.4 (240) 9.6 (244.6) 13.5 (341.9) 12.7 (323.3) 15.0 (380.6) 14.3 (362.1)
12.6 (320) 12.8 (324.8) 16.6 (422.1) 15.9 (403.5) 18.1 (460.8) 17.4 (442.3)
17.3 (440) 17.5 (443.9) 21.3 (541.2) 20.6 (522.6) 22.8 (579.9) 22.1 (561.4)
23.6 (600) 23.8 (604.1) 27.6 (701.4) 26.9 (682.8) 29.1 (740.1) 28.4 (721.6)
29.9 (760) 30.0 (763.0) 33.9 (860.3) 33.1 (841.7) 35.4 (898.0) 34.7 (880.5)
36.2 (920) 36.3 (922.5) 40.2 (1019.8) 39.5 (1001.2) 41.7 (1058.5) 41.0 (1040.0)
47.2 (1200) 47.4 (1203.8) 51.2 (1301.1) 50.5 (1282.5) 52.8 (1339.8) 52.0 (1321.3)
59.8 (1520) 59.9 (1521.5) 63.7 (1618.8) 63.0 (1600.2) 65.3 (1657.5) 64.5 (1639.0)
Dimensions:
inches
(mm)
0.28
(7.0)
DIA
1.50
(38.1)
0.91
(23.2)
4 places
1.97
(50.0)
0.58
(14.2)
O.D.
1.58
(40.1)
0.73
(18.5)
2 places
0.27
(6.8)
6 places
1.50
(38.1)
C
B
A
2.08
(52.8)
1.00
(25.4)
min.
2.50
(63.5)
min.
