1139300 Shadow 8 User Manual
2-24 Installation and Checkout

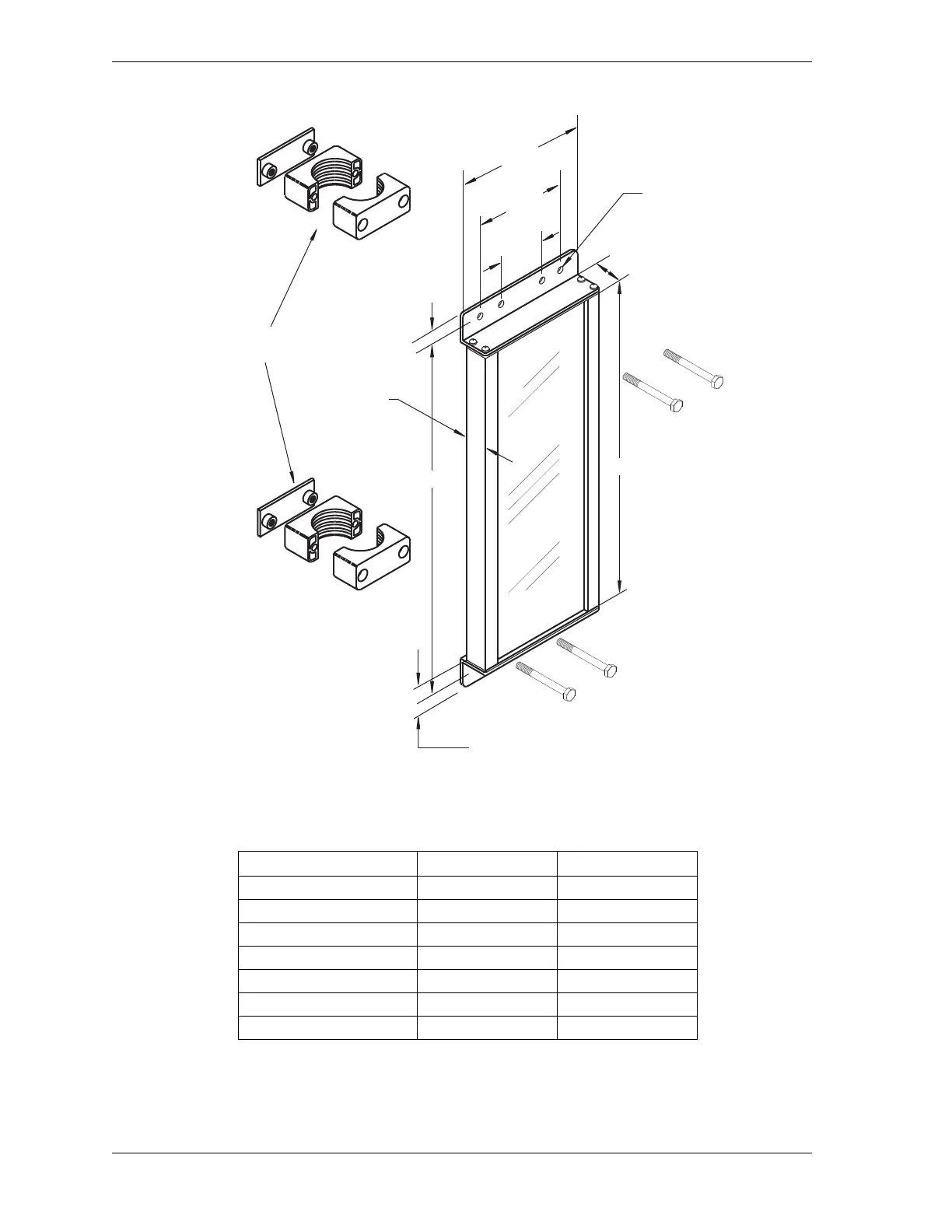

Figure 2-11. Shadow 8 Mirror Dimensions
Table 2-4. Shadow 8 Mirror Dimensions (see Figure 2-11)
Light Curtain Model A (in./mm) B (in./mm)
12.8 in. (320 mm) 13.5 (343) 15.18 (386)
17.5 in. (440 mm) 19.5 (495) 21.18 (538)
23.8 in. (600 mm) 25.5 (648) 27.18 (690)
30.0 in. (760 mm) 31.5 (800) 33.18 (843)
36.3 in. (920 mm) 37.5 (953) 39.18 (995)
47.4 in. (1200 mm) 49.5 (1257) 51.18 (1300)
59.9 in. (1520 mm) 61.5 (1562) 63.18 (1605)
2.05
(52)
0.270
(7)
8 places
1.25
(32)
0.94
(24)
Clamp assemblies
included
0.50
(13)
1.34
(34)
Dimensions:
inches
(mm)
A
B
5.72
(145)
4.0
(102)
