Wintriss Shadow 8 - Figure 2-7. Shadow 8 Universal Mounting Brackets: Dimensions and Rotation (Top View); Figure 2-8. Shadow 8 Universal Mounting Brackets: T-Slot Configuration

1139300 Shadow 8 User Manual
2-20 Installation and Checkout

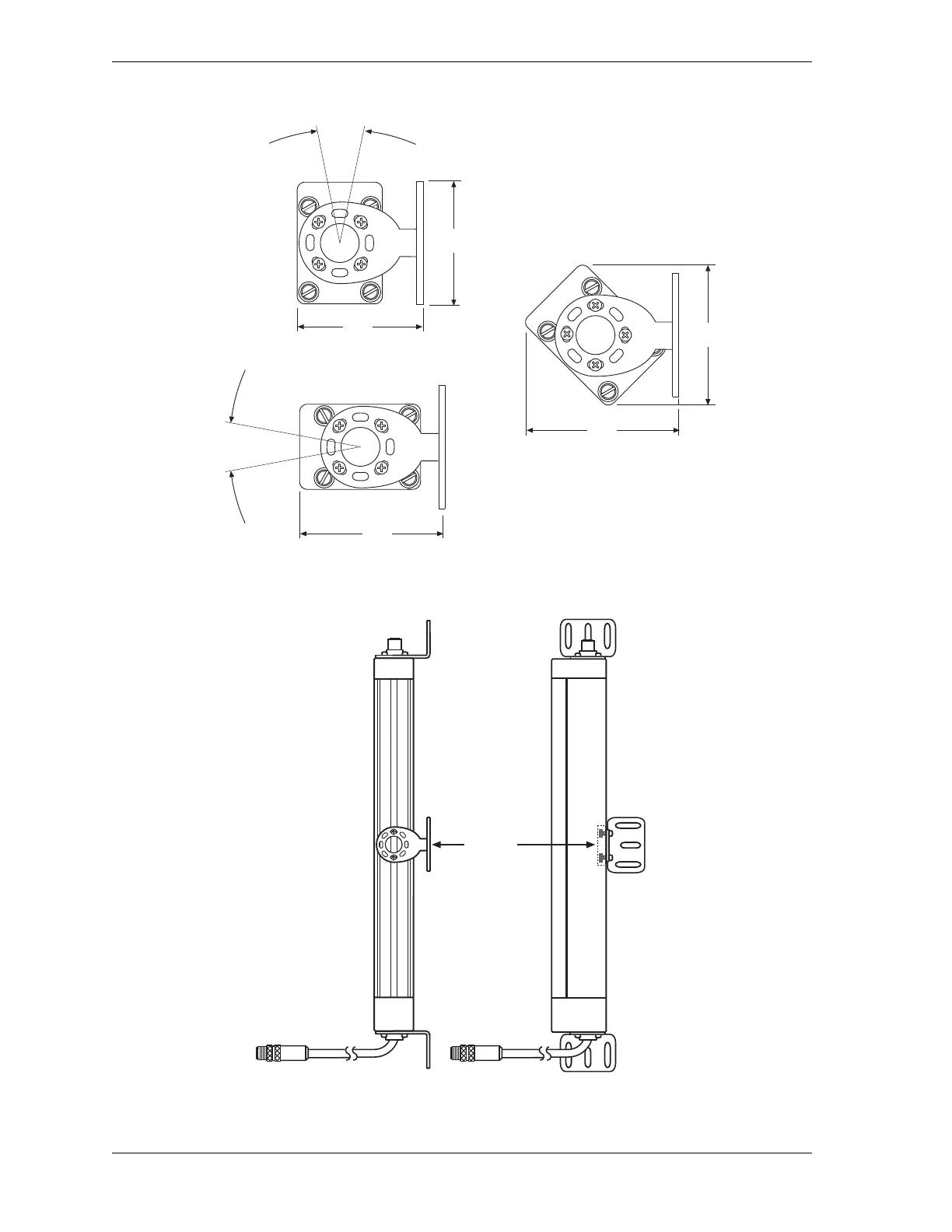

Figure 2-7. Shadow 8 Universal Mounting Brackets: Dimensions and Rotation (Top View)
Figure 2-8. Shadow 8 Universal Mounting Brackets: T-Slot Configuration
1.92
(48.8)
2.08
(52.8)
2.23
(56.6)
2.38
(60.5)
2.33
(59.1)
Dimensions:
inches
(mm)
16°
16°
Back view Side view
Universal
bracket
mounted
in T-slot
configuration
