2.4.10 Digital Input (DI) Transducer
a. Install the battery into its compartment.
(Attention: CR2032 battery positive side up)
b. Connect the wiring pin of 3rd party device by DI/DO (dry contact).
c. The Pin functions are as below:
Wire 1- (Red) Dry contact Input (Positive)
Wire 2- (White) Dry contact Input (Negative)

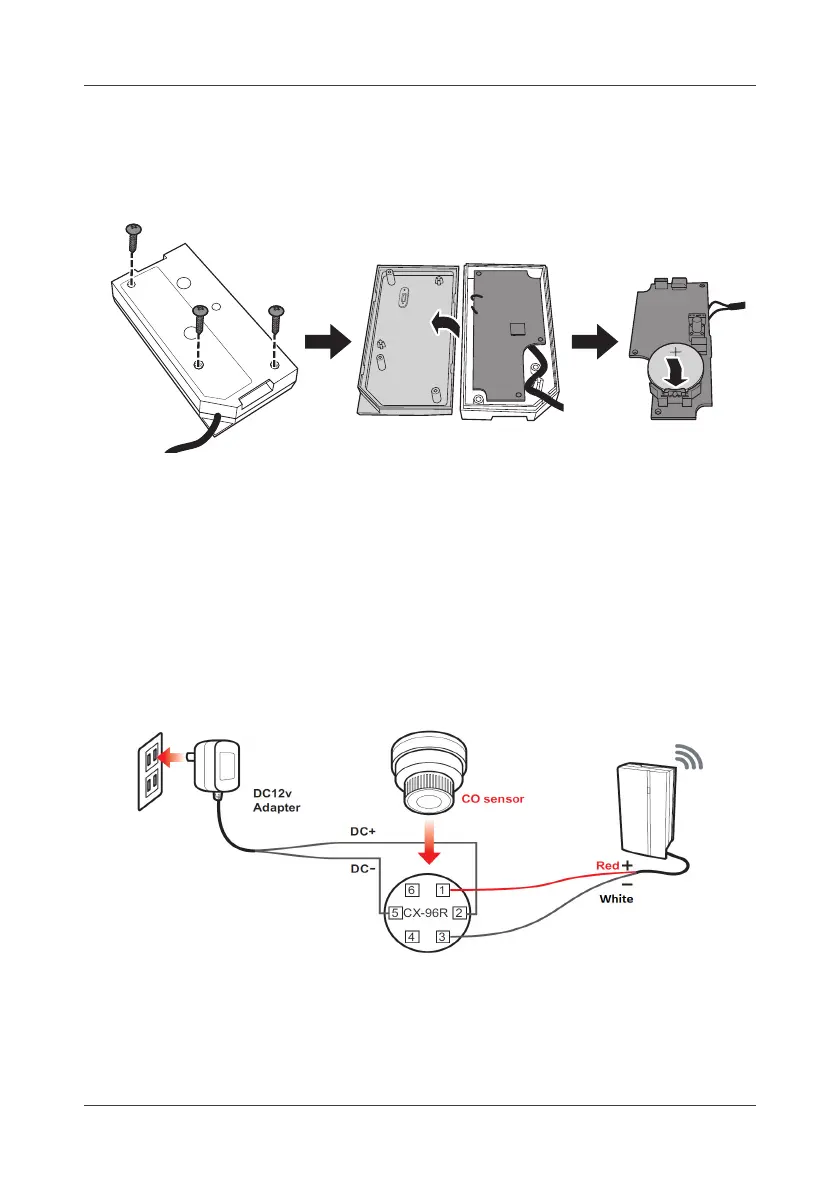

d. To connect the CX-96R CO detector as example, please see the following
diagram:
e. Mount the bracket on the wall.
Remove the 3 screws Remove the back cover
Install the battery. Then
replace the back cover
and attach the 3 screws.
