Chapter 4: Web Management
EN-77

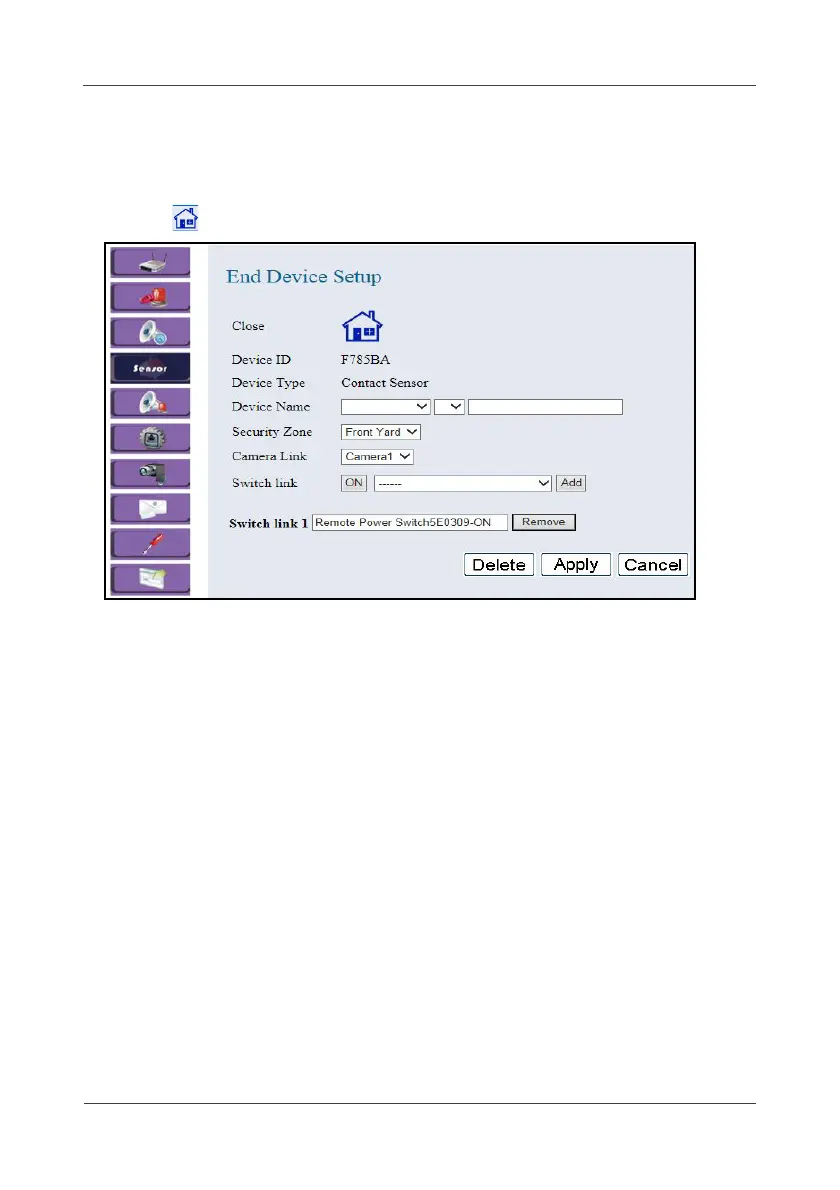

4.4.3 Contact Sensor
This option allows you to configure the Wireless Contact Sensor settings.
1. Click .
2. Select the location, device number, and specify the sensor name.
Click on the pull-down menu to see more options.
3. Select the security zone while enabling partial arm.
4. In Camera Link field, select the camera for enabling the event-triggered
recording.
5. To bind multiple links with the automation-type controllers to enable
remote automatic control, select the controller ID in the Switch link field
and click Add. Select ON or OFF the device when the alarm is
triggered.
6. In the Switch link field, click Remove to delete the current binded
automation-type device.
7. Click Apply to save the settings.
