Operating manual Lubricator
Revision: 02
2022-D064493
en-11
• Observe the instructions for safety and use of the thread locking
compound used
Apply a thread-locking compound (e.g. Loctite
®
243)
to the fastening screws.

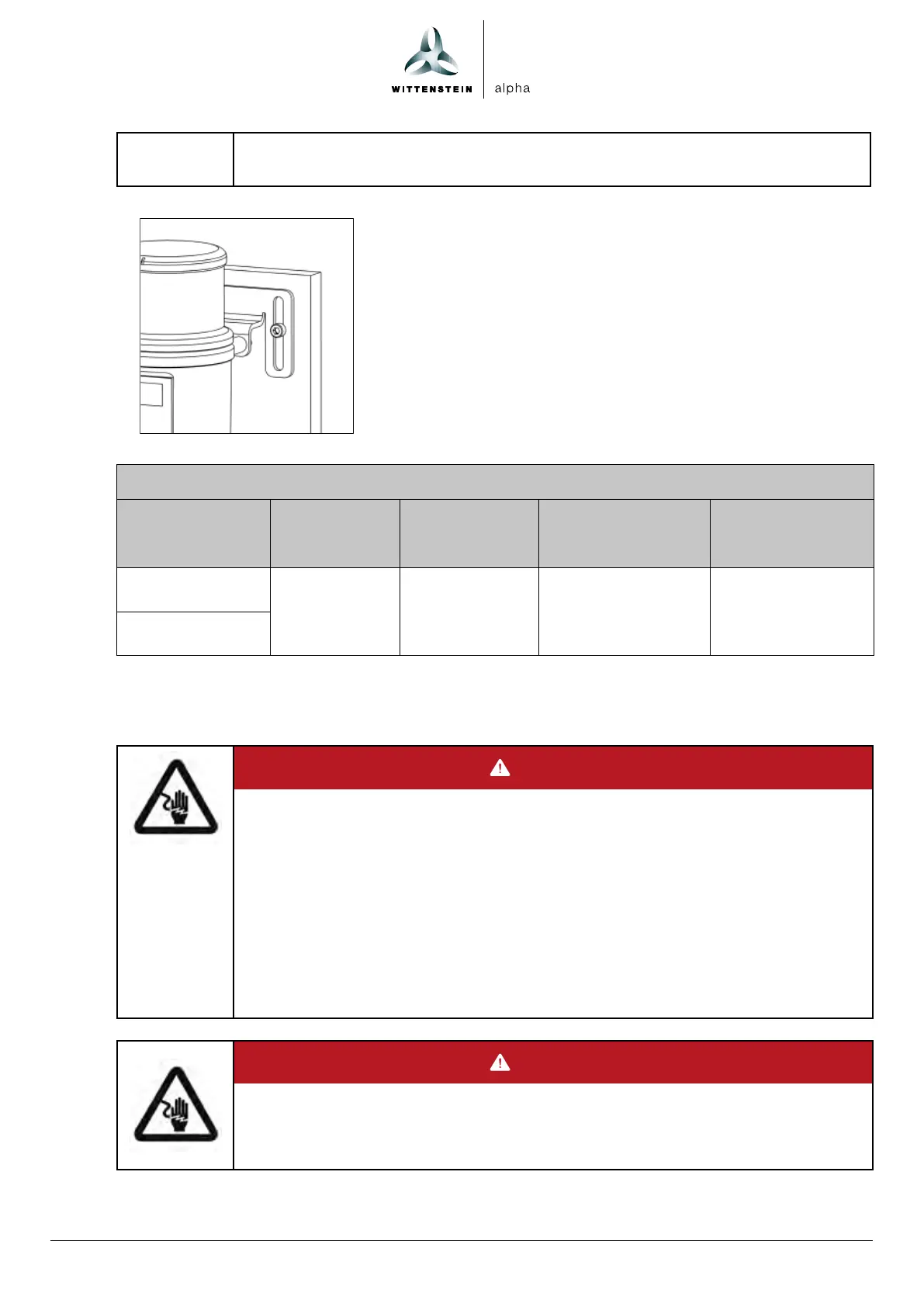

• Fasten the lubricator with the pre-mounted hold-
ing bracket in the intended position. Fine adjustment
of the installation height is possible by means of the
slotted holes. The prescribed screw sizes and tighten-
ing torques can be found in Table 2.
Through-holes in the mounting bracket
Type/size Hole spacing
[mm]
Number x
diameter
[ ] x [mm]
For screw size /
property class
Tightening torque
[Nm]
LUC
+
125
95 2 x 6.6 M6 / 8.8 9.0
LUC
+
250
Table 2: Through-holes in the mounting bracket
5.3 Installing the electrical connections
DANGER
If touched, live components will lead to electric shocks which can cause
serious injuries or even death.
• Before carrying out electrical installation work, observe the five safety rules of
electrical engineering:
– Switch off.
– Secure against unintentional restart of power.
– Check that no voltage is present.
– Ground and short circuit.
– Cover adjacent and electrically live parts.
• Check whether the protective caps are fitted to the plugs.
Check the plugs for damage and dirt if protective caps are missing.
DANGER
In the presence of moisture electrical work can lead to electric shocks which
can cause serious injuries or even death.
• Carry out the electrical assembly only in dry rooms.
