Operating manual Lubricator
Revision: 02
2022-D064493
en-19
6.7 Triggering the filling function (venting/filling)
The lubricator is delivered vented with a screwed-on cartridge and mounting bracket mounted.
You can trigger the filling function of the lubricator for venting or filling.
The lubricator then automatically performs 40 pumping strokes with a total lubricating quantity of 6 cm³
of lubricant.
You can abort the filling function again manually.

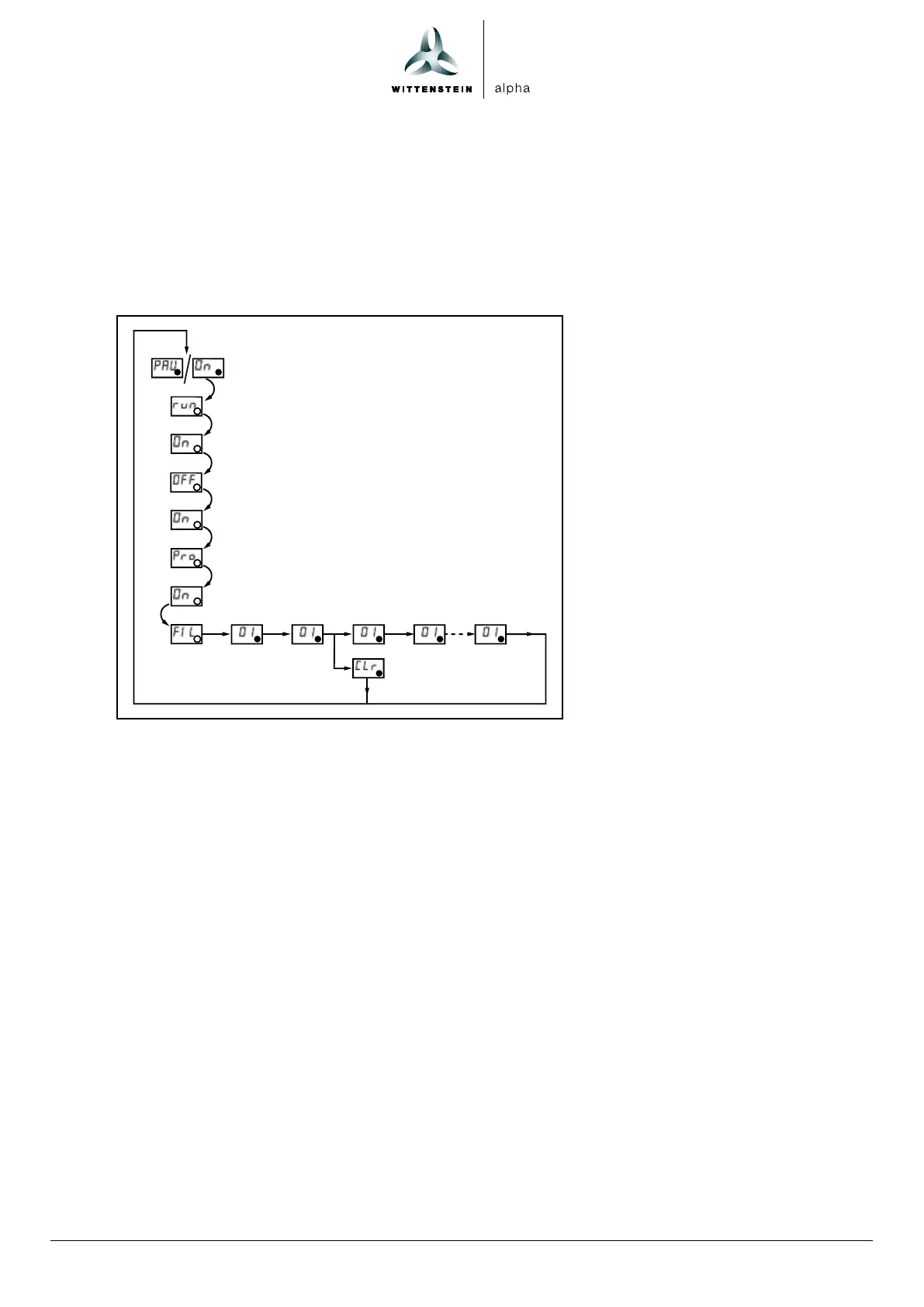

MAX1 MAX2 MAX1 MAX2MAX1
aLubricator in operation (PAU / On)
1. Hold the magnetic pin against the action field.
The LED flashes red and run, On, OFF, On, Pro, On, and FIL are displayed in succession
on the LCD.
2. Remove the magnetic pin when the display indicates FIL.
The lubricator begins with the filling procedure.
The LCD displays the approximate counter pressure and the pumping piston.
On completion of the lubrication sequence the lubricator returns automatically to operation.
Aborting the filling procedure
1. Hold the magnetic pin against the action field during the filling procedure.
The LCD displays CLr.
2. Remove the magnetic pin.
The filling function is aborted.
The lubricator goes automatically into operation.
