Matboard Size
1. Make sure the matboard size is sucient for the mat being
cut. Since we’re cutting a small design, the default setting
should be acceptable.
Outside Cut
1. Since we’re using
a pre-cut piece of matboard for this project, we don’t need to cut
the outside of the mat. Click the Outside Cut toggle to O.

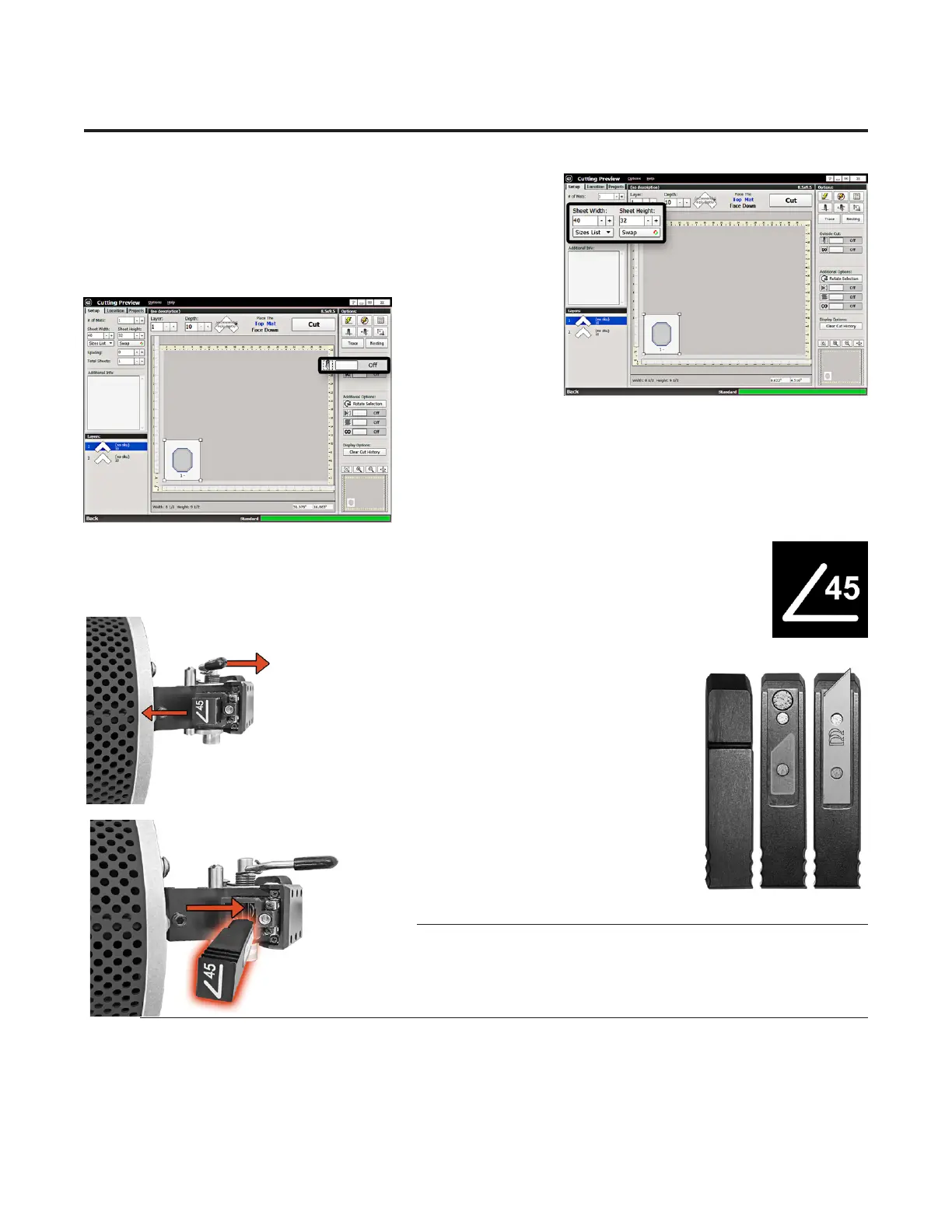

Install a Blade
The 45° cartridge is labeled 45 on the end and is black.
1. Push blade cartridge release down to eject the blade cartridge.
2. Remove the previous blade. The blade cartridge
displays a diagram of the blade orientation (shown in
contrast). Place new blade into cartridge with the longest
straight side to the right and the bevel face down, lining up
the holes of the blade over the pins in the cartridge. The
blade should t snugly into the recess space provided for
it.
3. Turn cartridge over and reinsert into the head with the
blade facing the CMC board and the notch on
the back of the cartridge facing the head, until it
clicks into place. It can only be inserted one way.
WARNING: Do not run the CMC without the
blade cartridge in place or damage to the
blade cartridge release lever could occur.
