Wizard CMC 9000 - Changing the Blade; Using the 45º Cartridge

8.The Head plunges at the home position and
applies the current pressure and prompts for
the requested pressure.

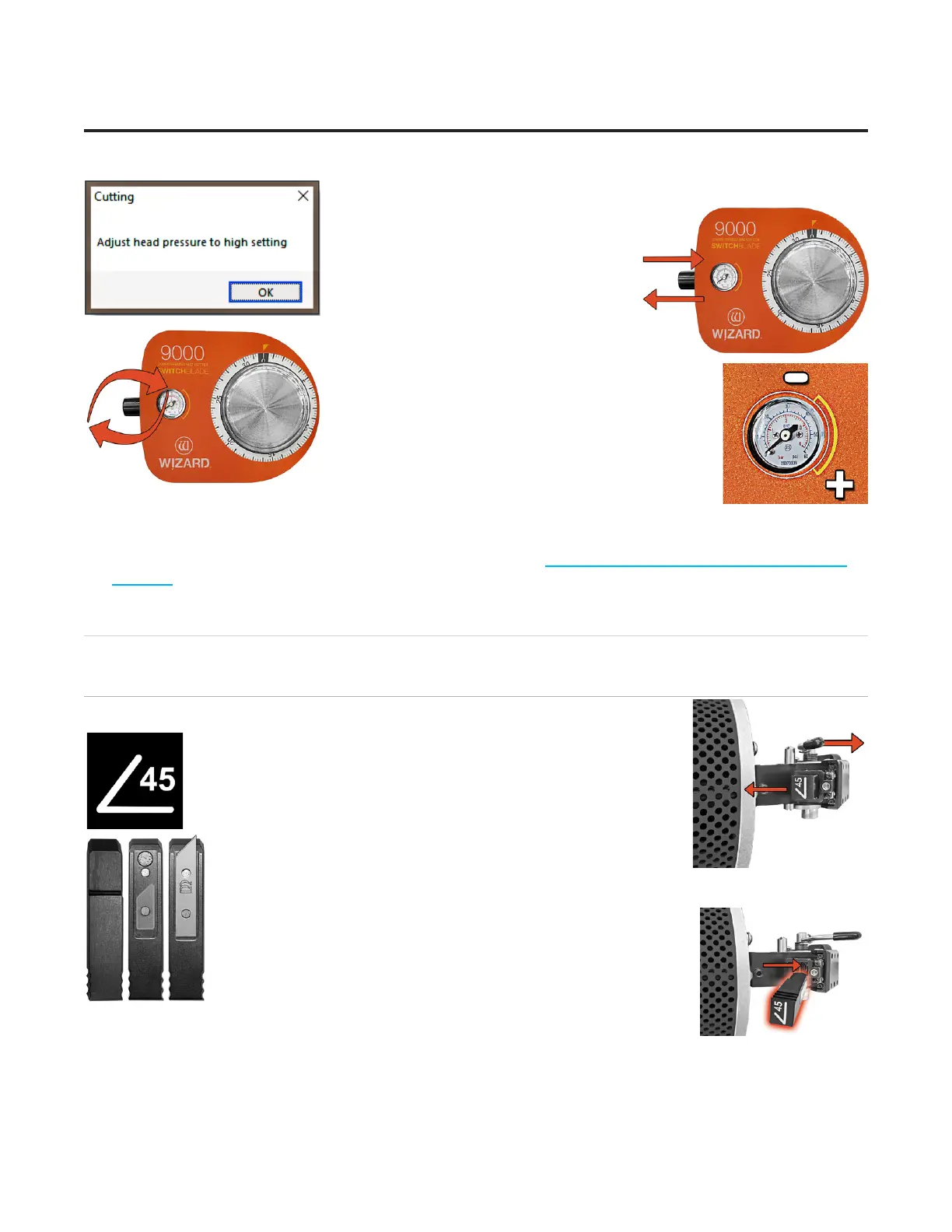

9. Pull out the air regulator pressure knob
by pulling it to the left.
10. Turn the air regulator pressure knob
clockwise until the marker on the gauge is
at the high setting. Make sure the gauge does not go
above 60 psi.
11. Set it by pushing the air regulator pressure knob
back in.
12. Click OK to cut the mat with this setting.
90° Cartridge
See the Knowledge Base topic on 90° Cartridge and Blades at https://wizardcutters.atlassian.net/wiki/x/
vhEoYw to nd additional information on the 90° cartridge and changing the blades.
Changing the Blade
Using the 45º Cartridge
Changing the Blade
The 45° metal cartridge is labeled 45 on the end and is black.
1. Push the blade cartridge release down to eject the blade cartridge.
2. Remove the blade from blade cartridge.
3. The blade cartridge displays a diagram of the blade orientation (shown in contrast). Place
new blade into cartridge with the longest straight side to the right
and the bevel face down lining up the holes of the blade over the
pins in the cartridge. The blade should t snugly into the recess
space provided for it.
4. Turn the cartridge over and reinsert into the head with the blade facing the CMC
board and the notch on the back of the cartridge facing the head, until it clicks into
place. It can only be inserted one way.
