5. Overview of KLM air handling
and ventilation module

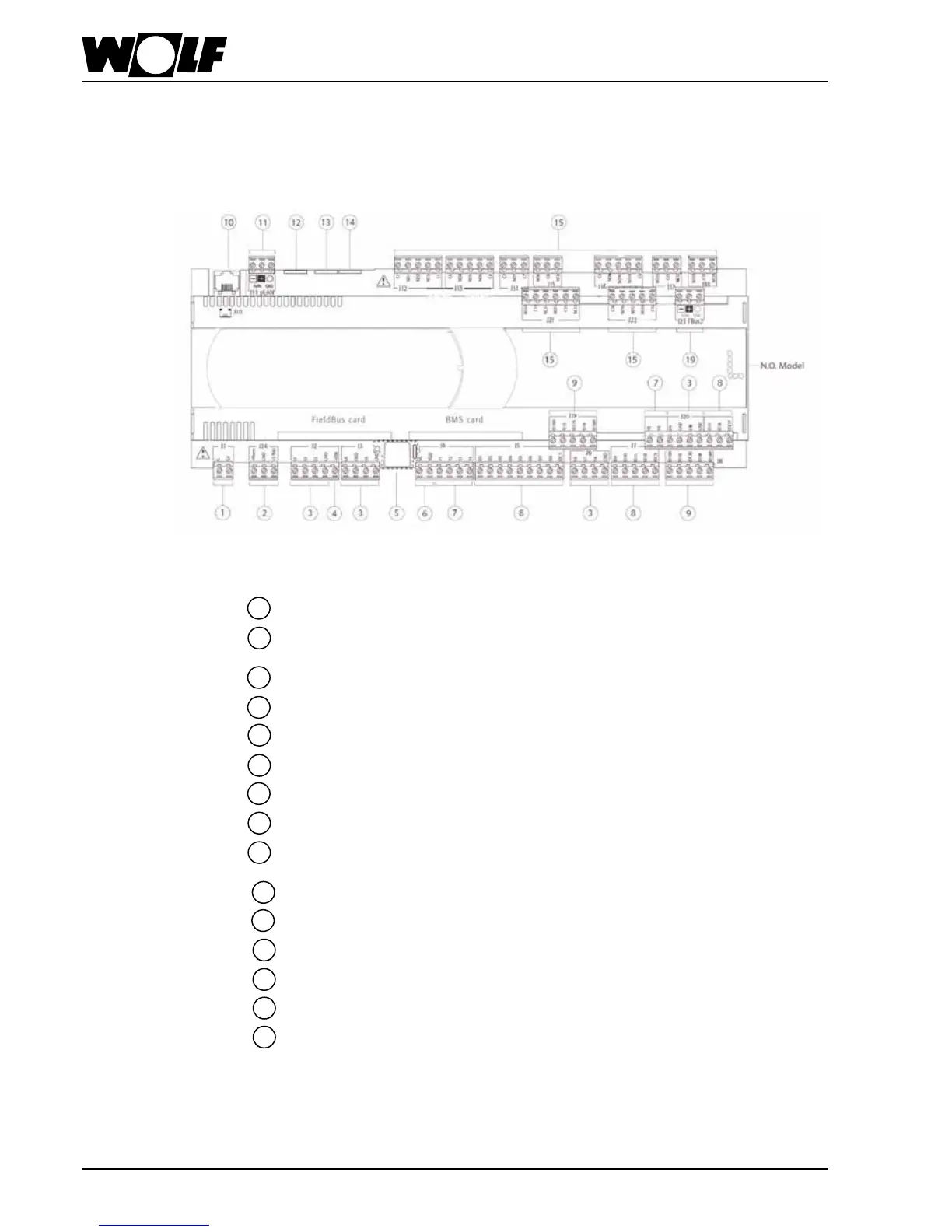

Assignment of KLM air handling and ventilation module
1 Power supply for control unit
2 Supply for additional programming unit (+Vterm); ratiometric 0…5 V
sensor (+5 VREF)
3 Universal inputs/outputs
4 Power supply for active sensors (+VDC)
5 Display
6 Power supply for opto-isolated analogue outputs
7 Analogue outputs
8 ID: digital inputs 24 V AC or 28 .. 36 V DC
9 ID: digital inputs 24 V AC or 28 .. 36 V DC
IDH: digital inputs 230 V AC – 50/60 Hz
10 Plug-in connection for BMK programming unit
11 Plug-in connection for BMK-F remote control (pLAN)
12 Spare
13 Spare
14 Spare
19 Plug-in connection for a KLM-E extension module
