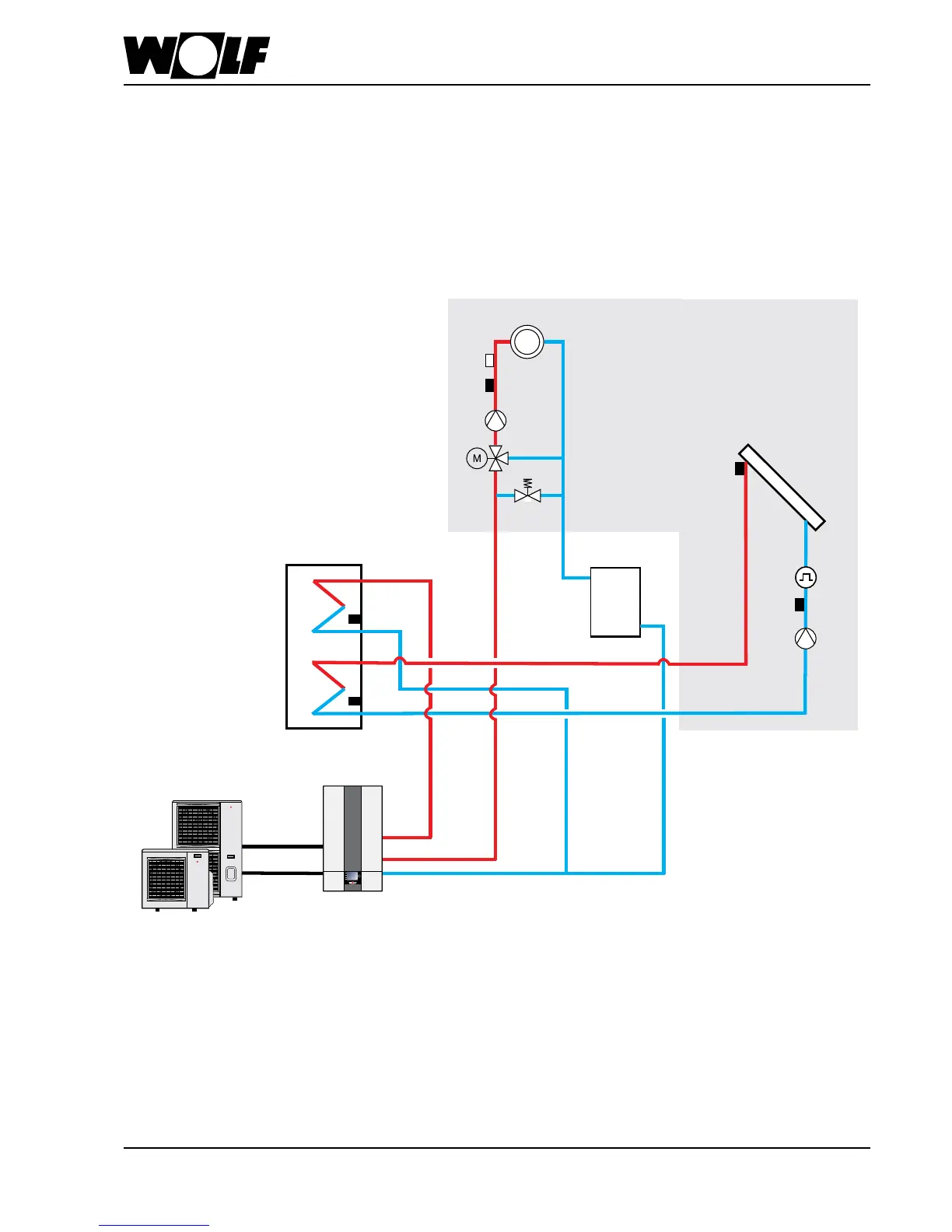

Systemconguration02
Cylinder in series
A 3-way diverter valve for
central heating/DHW and a
feed/heating circuit pump
are integrated into the
indoor module
Indoor module
MCP
MaxTh
FS
MM
CTS
Outdoor module
Solar circuit
SColS
SCP
FT
RTS
Circuit with mixer
Solar DHW cylinder
SCylS
Important information:
In this schematic diagram, shut-off valves, air vent valves and safety equipment are not fully represented.
These should be provided for each individual system, in line with the applicable standards and regulations.
Hydraulic and electrical data can be found in the Hydraulic System Solutions technical guide.
BWL-1S(B)
● Split air/water heat pump
● Cylinder in series
● Extension, circuit with mixer, with MM
● DHW heating
● Solar DHW cylinder
● Solar circuit extension with SM1
Extension options
