68 3064298_201507
Important information:

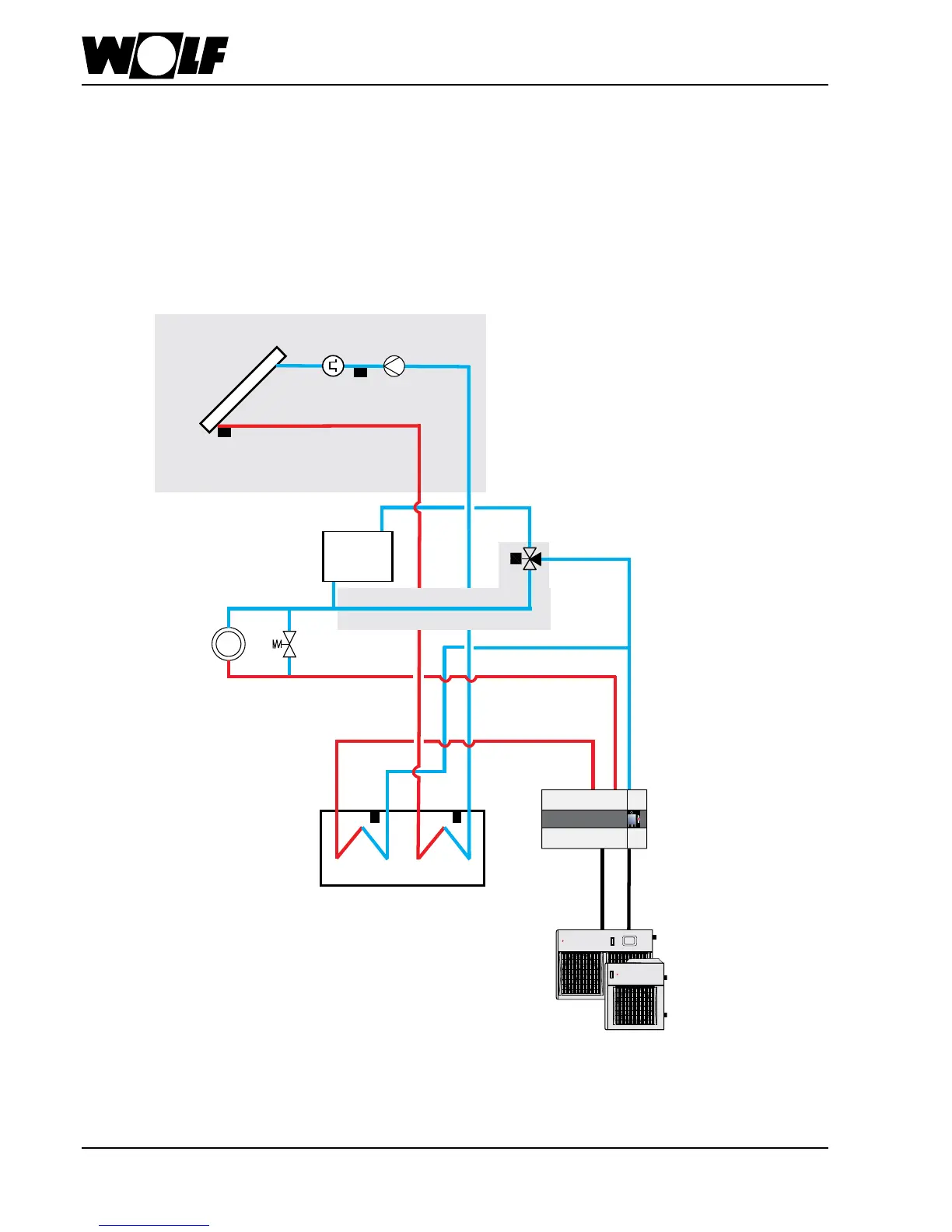

In this schematic diagram, shut-off valves, air vent valves and safety equipment are not fully represented.
These should be provided for each individual system, in line with the applicable standards and regulations.
Hydraulic and electrical data can be found in the Hydraulic System Solutions technical guide.
BWL-1S(B)
● Split air/water heat pump
● Cylinder in series
● One heating circuit
● DHW heating
● Solar DHW cylinder
● Solar circuit extension with SM1
●Active cooling possible
Systemconguration05
Cylinder in series
Heating circuit
CTS
Solar circuit
Solar DHW cylinder
SCylS
SColS
SCP
FT
RTS
A 3-way diverter valve for
heating/DHW and a feed/
heating circuit pump are
integrated into the indoor
module
Indoor module
Outdoor module
Extension options
In conjunction with
active cooling
