Systemconguration11
Separating cylinder
Heating circuit
A 3-way diverter valve for
central heating/DHW and a
feed/heating circuit pump
are integrated into the
indoor module
Indoor module
DHW cylinder
CTS
Outdoor module
HTS
HCP
Important information:

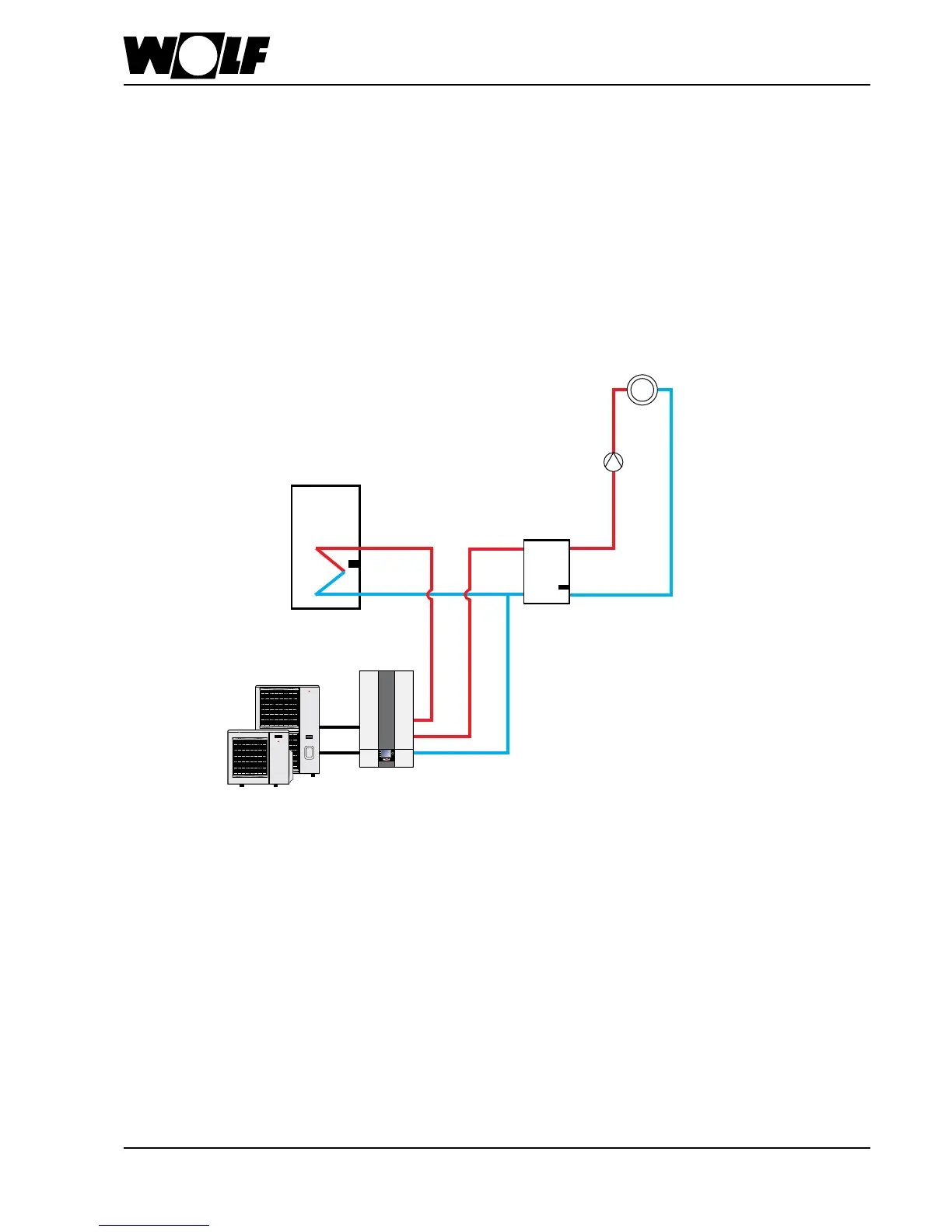

In this schematic diagram, shut-off valves, air vent valves and safety equipment are not fully represented.
These should be provided for each individual system, in line with the applicable standards and regulations.
Hydraulic and electrical data can be found in the Hydraulic System Solutions technical guide.
BWL-1S(B)
● Split air/water heat pump
● Separating cylinder
● One heating circuit
● DHW heating
Please note:
Header temperature sensor HTS must be
installed in the return area of the low loss
header or separating cylinder.
