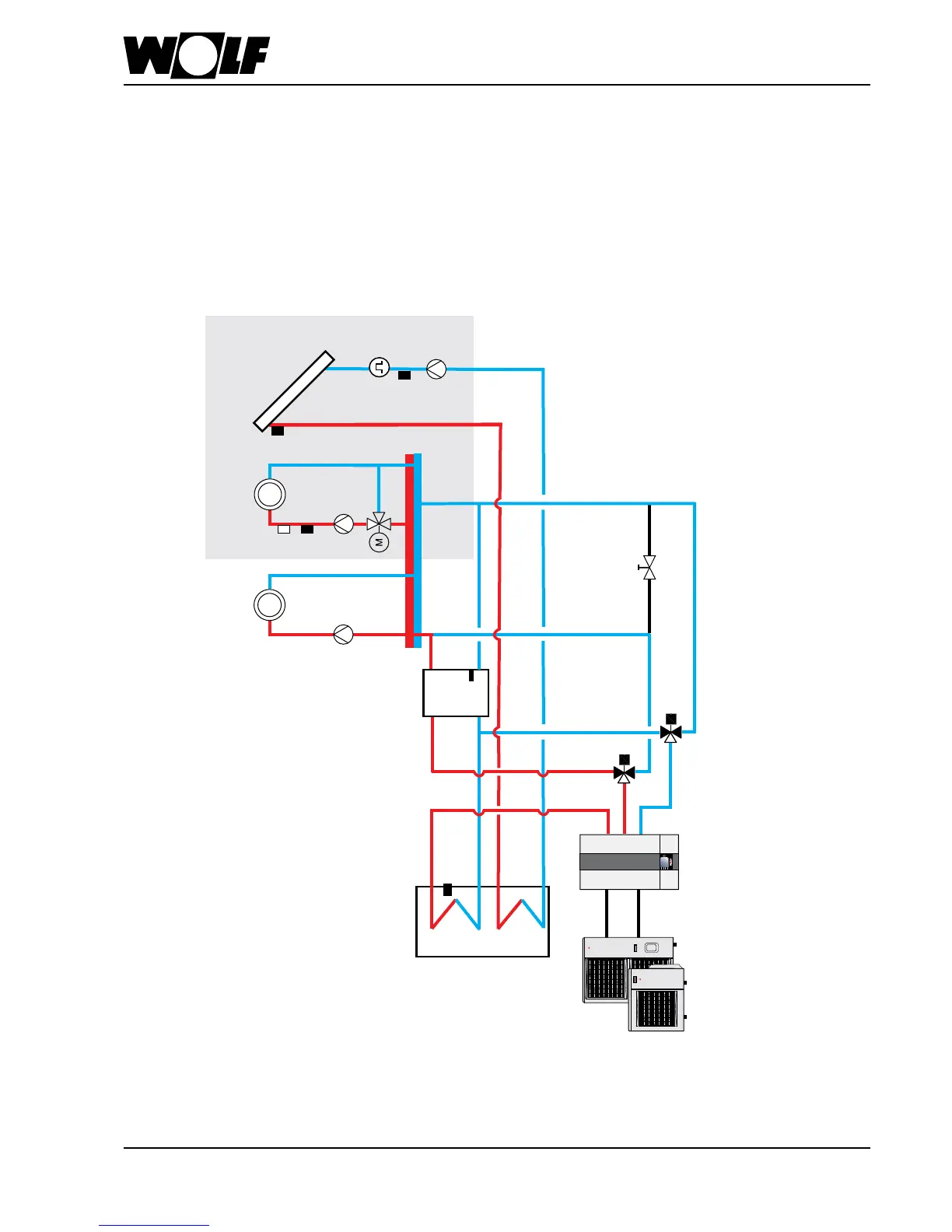

Systemconguration15
BWL-1S(B)
● Split air/water heat pump
● Separating cylinder
●SolarDHWcylinder
● Heating circuit
● Extension, circuit with mixer, with MM
● Solar circuit extension with SM1
● DHW heating
●Active cooling with direct heating circuit possible
Important information:
In this schematic diagram, shut-off valves, air vent valves and safety equipment are not fully represented.
These should be provided for each individual system, in line with the applicable standards and regulations.
Hydraulic and electrical data can be found in the Hydraulic System Solutions technical guide.
SColS
SCP
FT RTS
Separating cylinder
Heating circuit
HCP
Circuit with mixer
MCP
MaxTh
FS
MM
A 3-way diverter valve for central heating/DHW and a feed/heating circuit pump are integrated into the indoor module
Indoor module
Outdoor module
Solar DHW cylinder
Please note: Header temperature sensor HTS must be installed in the return area of the low loss header or separating cylinder.
HTS
Extension options
