Wood-mizer LT70 Series User Manual

REPLACEMENT PARTS
Engine Bracket Set
3
3-7 doc072321 REPLACEMENT PARTS

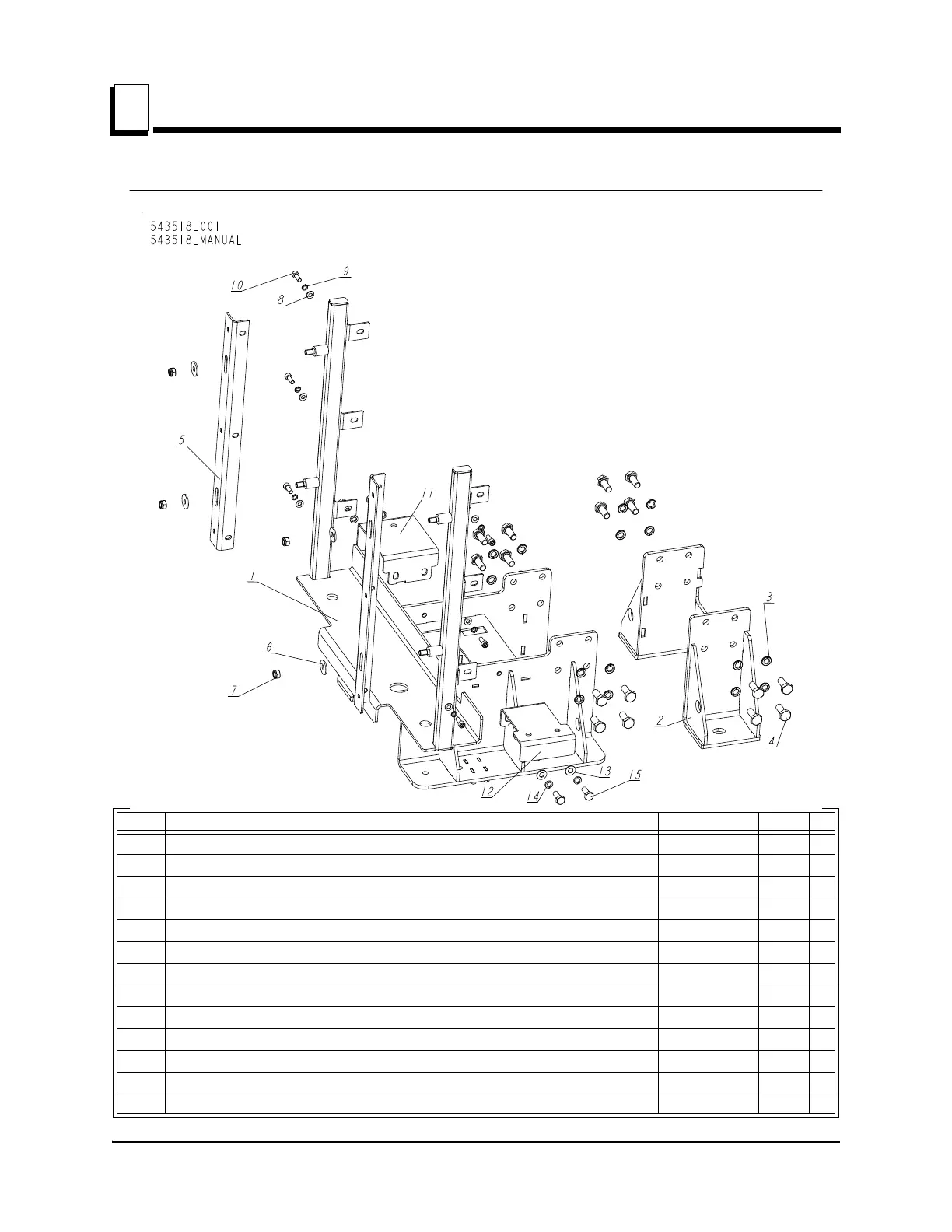

3.5 Engine Bracket Set
REF. DESCRIPTION (* indicates parts available in assemblies only) PART # QTY
- BRACKET SET, ENGINE 543518 1
1 BRACKET WELDMENT, G57 ENGINE REAR 540670-1 1
2 BRACKET WELDMENT, G57 ENGINE FRONT 540662-1 1
3 WASHER, 10.2 SPLIT LOCK ZINC F81055-2 16
4 BOLT, M10x1.25x25-8.8-A HEX HEAD FULL THREAD ZINC F81003-29 16
5 BRACKET, RADIATOR 543517-1 2
6 WASHER, 8.5 SPECIAL FLAT ZINC F81054-11 4
7 NUT, M8-8-B HEX NYLON ZINC LOCK F81032-2 4
8 WASHER, 6.4 FLAT ZINC F81053-1 6
9 WASHER, Z 6.1 SPLIT LOCK ZINC F81053-3 6
10 SCREW, M6x16 HEX SOCKET HEAD CAP ZINC F81001-21 6
11 PLATE, LEFT 545961-1 1
12 PLATE, RIGHT 545962-1 1
