Wood-mizer LT70 Series User Manual

REPLACEMENT PARTS
G57 Engine Alternator Assembly
3
3-9 doc072321 REPLACEMENT PARTS

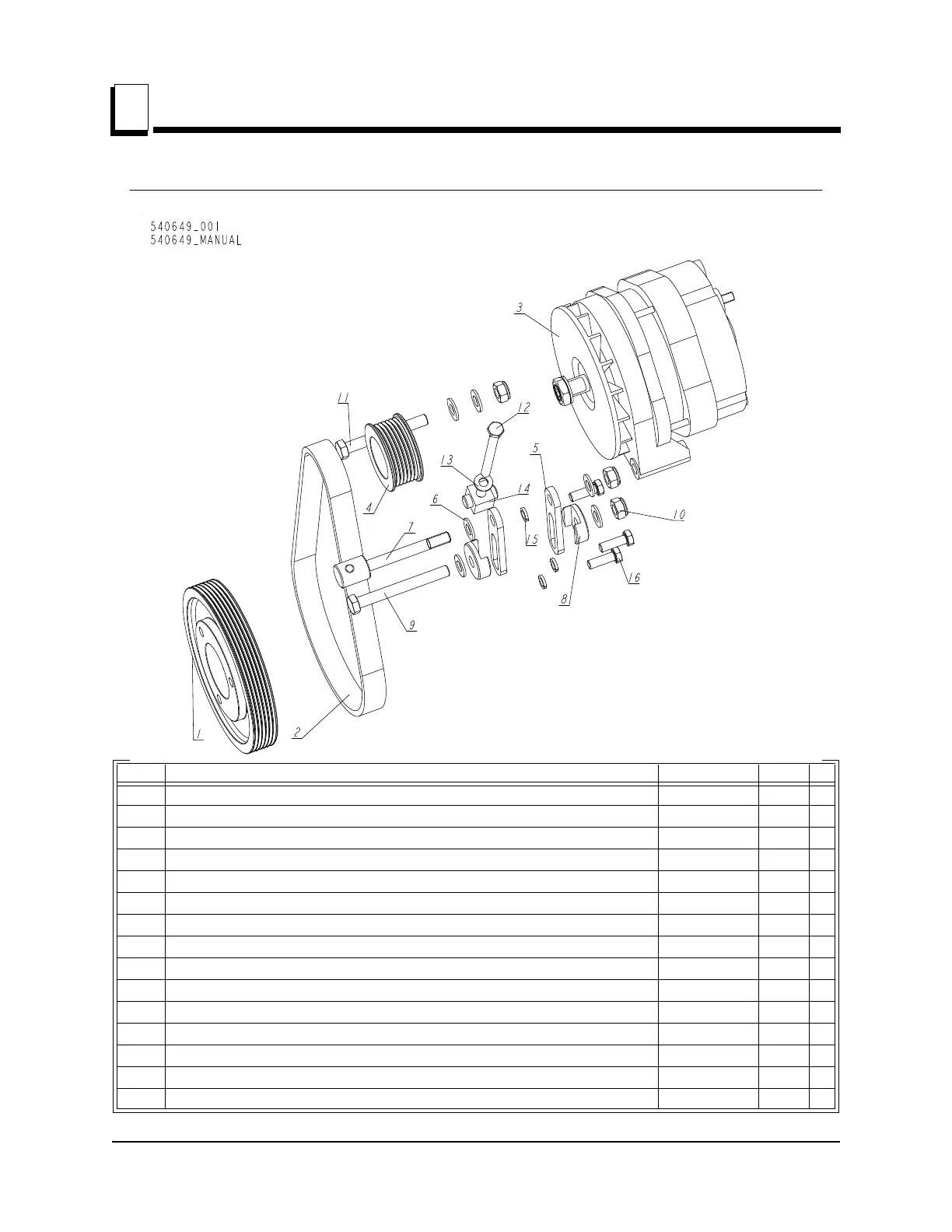

3.6 G57 Engine Alternator Assembly
REF. DESCRIPTION ( indicates parts available in assemblies only) PART # QTY
- ALTERNATOR ASSEMBLY, G57 540649 1
1 PULLEY, ALTERNATOR DRIVE 540657-1 1
2 BELT, 6PK 775 ALTERNATOR 089465 1
- ALTERNATOR, 190A LT60 COMPLETE 089466 1
3 ALTERNATOR, 140 AMP 034499 1
4 SHEAVE, 190A ALTERNATOR ZINC-PLATED 089441-1 1
5 PLATE, D190 ALTERNATOR BELT TENSIONER 088933-1 2
6 WASHER, 10.5 FLAT ZINC F81055-1 6
7 BOLT, M10 SPECIAL 089472-1 1
8 WASHER, SPECIAL ZINC-PLATED 088932-1 2
9 BOLT, M10X90-8.8-B HEX HEAD ZINC F81003-66 1
10 NUT, M10-8-B HEX NYLON ZINC LOCK F81033-1 3
11 BOLT, M10x80-8.8 HEX HEAD ZINC F81003-50 1
12 BOLT, M8x100-8.8 HEX HEAD FULL THREAD ZINC F81002-86 1
13 WASHER, 8.4 FLAT ZINC F81054-1 1
