REPLACEMENT PARTS
Fuel Tank Assembly, LT70 - G57
3
3-21 doc072321 REPLACEMENT PARTS

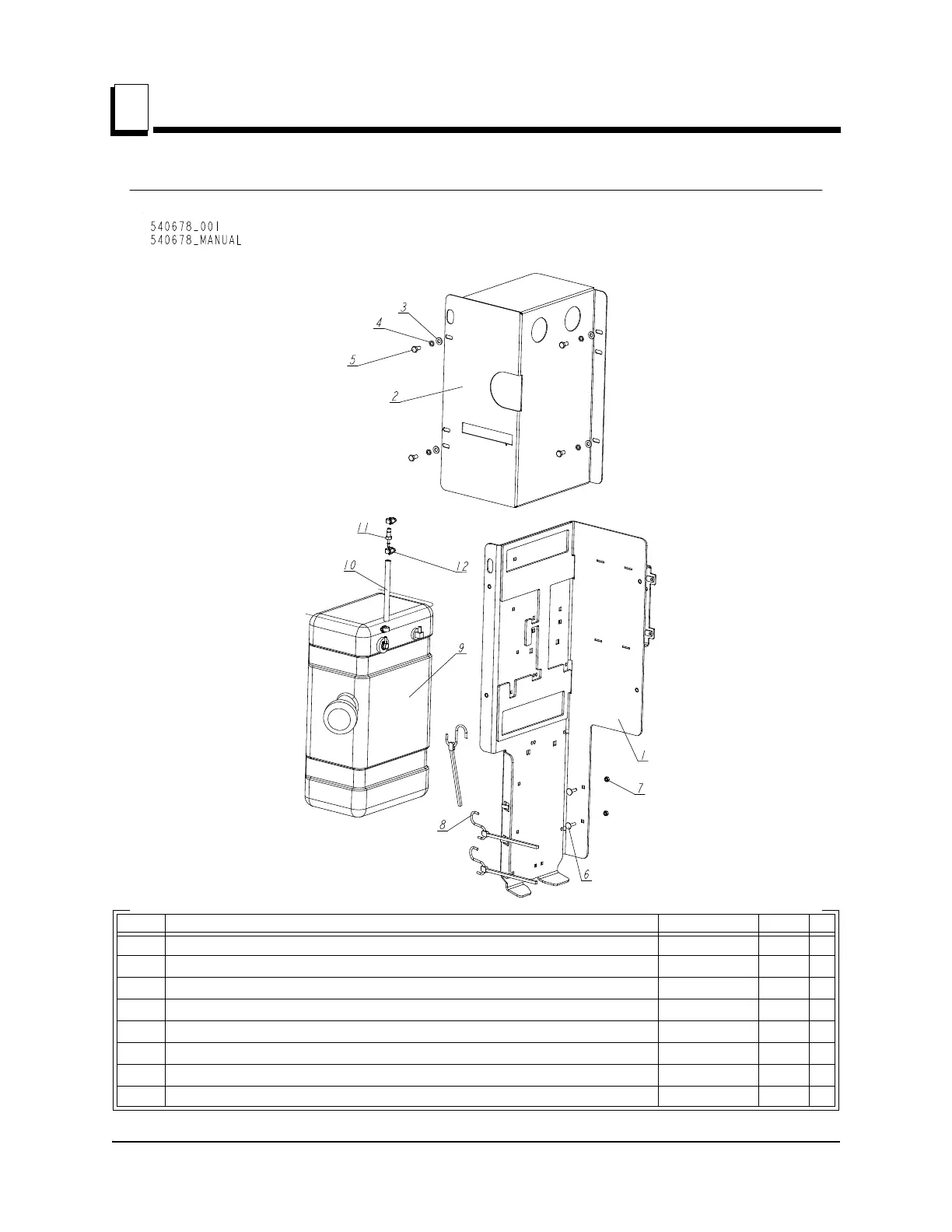

3.12 Fuel Tank Assembly, LT70 - G57
REF. DESCRIPTION ( indicates parts available in assemblies only) PART # QTY
- TANK ASSEMBLY, LT70 - G57 FUEL 540678 1
1 PLATE WELDMENT, FUEL TANK MOUNT 540648-1 1
2 COVER, TANK 518303-1 1
3 WASHER, 6.5 SPECIAL FLAT ZINC F81054-1 4
4 WASHER, 8.2 SPLIT LOCK ZINC F81054-4 4
5 BOLT, M8x16-8.8-B HEX HEAD FULL THREAD ZINC F81002-20 4
6 BOLT, M6x25-8.8 CARRIAGE ZINC F81001-20 2
7 NUT, M6-8 HEX ZINC F81031-1 2

Wood-mizer LT70 Series Specifications

General

Hydraulic Log Handling	Optional
Computer Setworks	Optional
Blade Width	1.5 inches (3.8 cm)
Power Options	Electric or diesel
Head Controls	Manual
Cutting Method	Horizontal bandsaw
