Wood-mizer LT70 Series User Manual

REPLACEMENT PARTS
Acceleration & Braking Mechanism
3
3-13 doc072321 REPLACEMENT PARTS

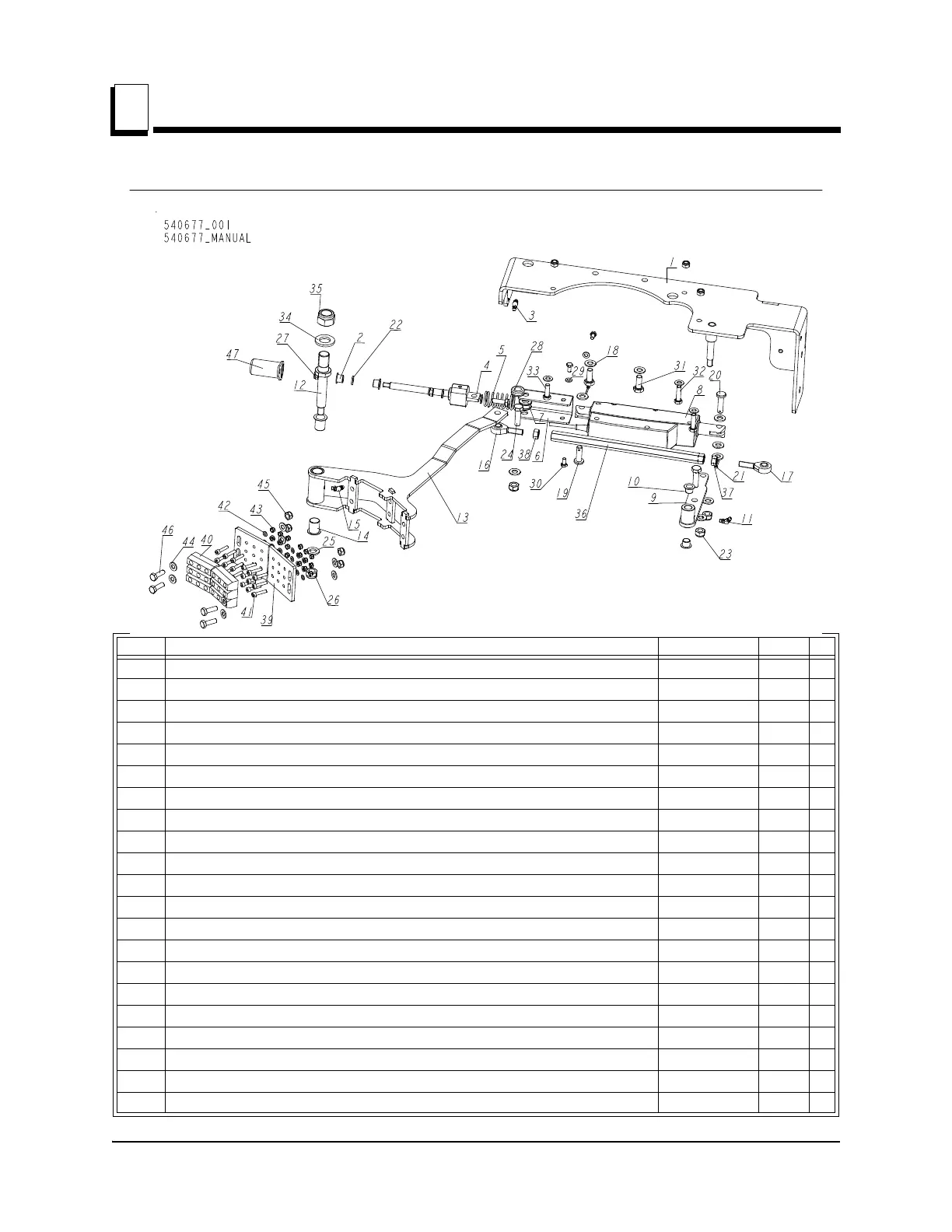

3.8 Acceleration & Braking Mechanism
REF. DESCRIPTION ( indicates parts available in assemblies only) PART # QTY
- ACCELERATION & BRAKING MECHANISM, LT70 G57 540677 1
1 MOUNT WELDMENT, ACCELERATION AND BRAKING MECHANISM 540655-1 1
2 BUSHING, XFM-1214-12 FLANGED 088934 2
3 FITTING, M6 ìBî TYPE PN-M/86003 GREASE 094213 1
4 BLOCK, ACTUATOR MOUNT W/SHAFT ZINC LA12 091342-1 1
5 SPRING, 60X23X3 ZINC-PLATED 088992 1
6 COVER, SPRING 089435-1 1
7 PAD, LINEAR ACTUATOR SLIDE 089436 2
8 ACTUATOR, LA121000-20401210 LINEAR 091309 1
- LEVER, COMPLETE 096426 1
9 LEVER 096427-1 1
10 BUSHING, XFM-1214-12 FLANGED 088934 2
11 FITTING, M6 ìBî TYPE PN-M/86003 GREASE 094213 1
12 SHAFT, BRAKE LEVER PIVOT ZINC-PLATED 096424-1 1
- LEVER, BRAKE - COMPLETE 096418 1
13 LEVER, BRAKE 096419-1 1
14 BUSHING, GFM 1719-25 094142 2
15 FITTING, M6 ìBî TYPE PN-M/86003 GREASE 094213 1
16 ROD END, SA10 094236 1
17 ROD END, SAL 10-T/K LEFT 096431 1
18 WASHER, 10.5 FLAT ZINC F81055-1 9

Wood-mizer LT70 Series Specifications

General

Hydraulic Log Handling	Optional
Computer Setworks	Optional
Blade Width	1.5 inches (3.8 cm)
Power Options	Electric or diesel
Head Controls	Manual
Cutting Method	Horizontal bandsaw
