G57 Engine Kit
REPLACEMENT PARTS doc072321 3-2
3

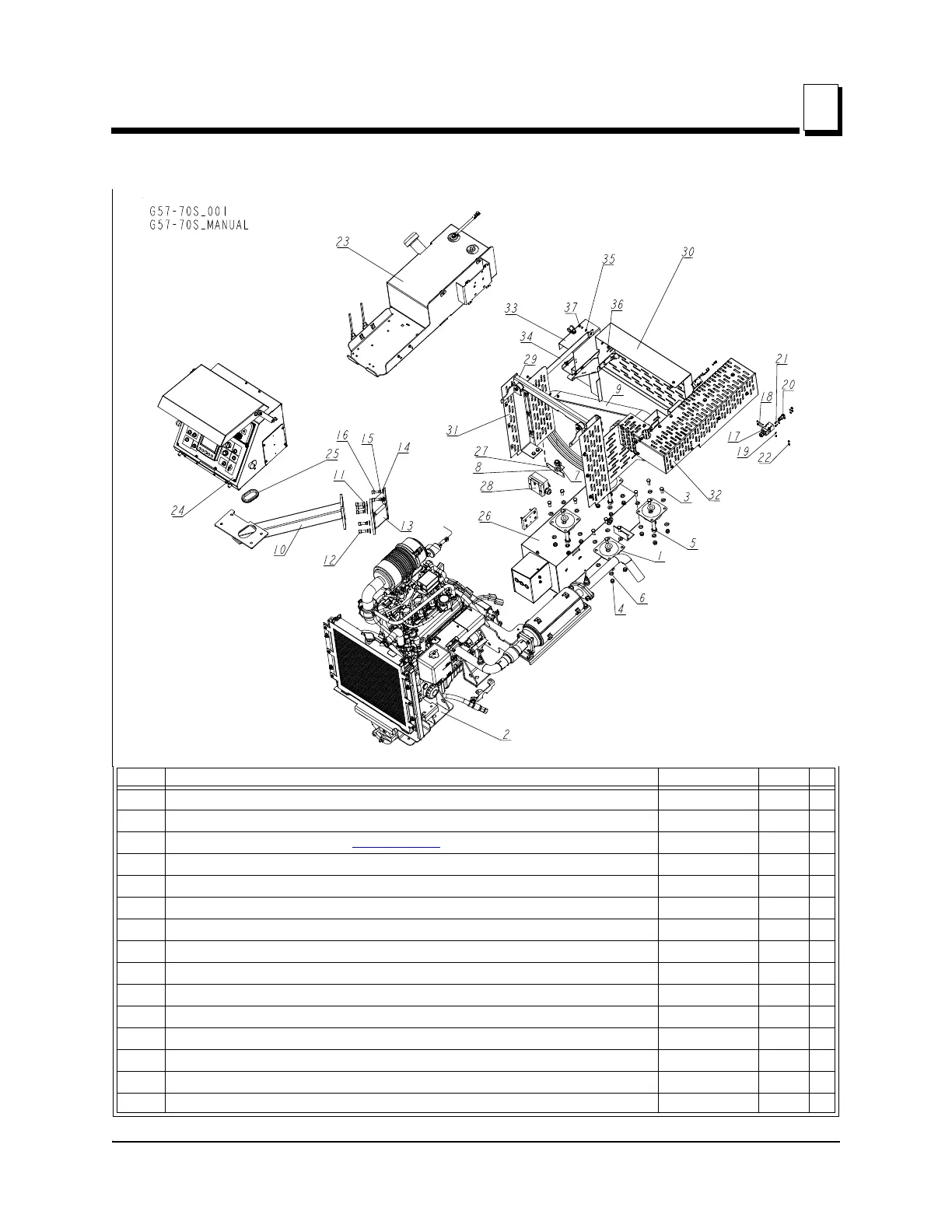

3.3 G57 Engine Kit
REF. DESCRIPTION ( indicates parts available in assemblies only) PART # QTY
- ENGINE KIT, G57S LT70 G57-70S 1
1 VIBROISOLATOR, RUBBER-METAL(70 Sh) 100080 4
2 ENGINE ASSEMBLY, G57 See Section 3.4
540640 1
3 BOLT, M10 X 25 8.8 HEX HEAD FULL THREAD ZINC F81003-31 16
4 NUT, M10-8-B HEX NYLON ZINC LOCK F81033-1 16
5 BOLT, M16x80 8.8-B HEX HEAD FULL THREAD ZINC F81006-11 4
6 WASHER, 10.5 FLAT ZINC F81055-1 37
7 NUT, M16-8 HEX NYLON ZINC LOCK F81036-2 4
8 WASHER, 17 FLAT ZINC F81058-1 4
9 BELT, 3BX 2437 Lp 089464 1
10 MOUNT WELDMENT, STANDARD CONTROL BOX 086732-1 1
11 WASHER, 10.2 SPLIT LOCK ZINC F81055-2 5
12 SCREW, M10 X 25 8.8 HEX SOCKET HEAD CAP ZINC F81003-32 5
- SPACER, LT70 CONTROL BOX - COMPLETE 522517 1
13 SPACER WELDMENT, LT70 CONTROL BOX 522169-1 1
