Wood-mizer LT70 Series User Manual

REPLACEMENT PARTS
Exhaust System w/Mount
3
3-11 doc072321 REPLACEMENT PARTS

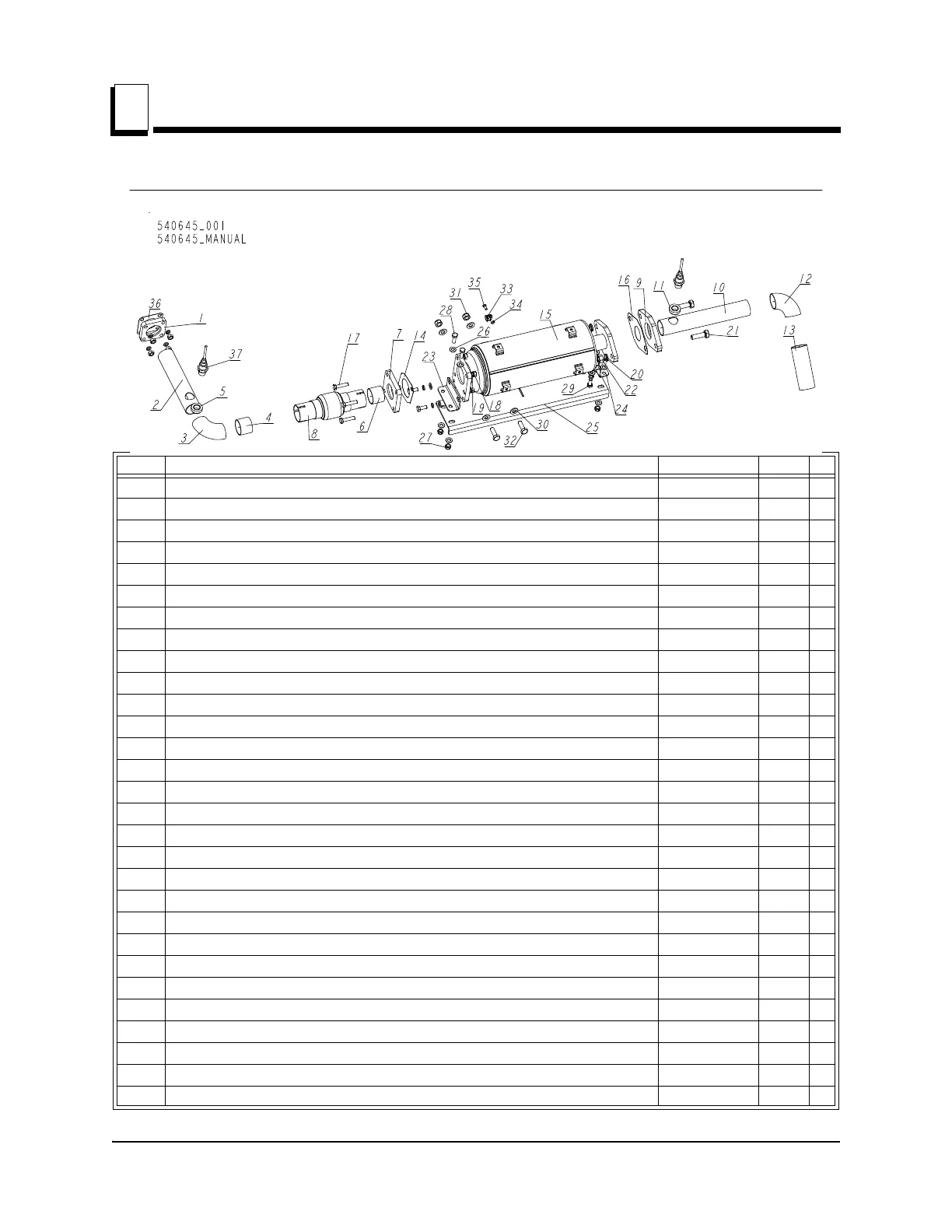

3.7 Exhaust System w/Mount
REF. DESCRIPTION ( indicates parts available in assemblies only) PART # QTY
- EXHAUST SYSTEM W/MOUNT - COMPLETE 540645 1
- PIPE ASSEMBLY, 1 & 3 WELDED 540644 1
- PIPE (1) 540635 1
1 PLATE (1) 540631 1
2 PIPE, 42.4X2X200 540633 1
3 ELBOW, 32003 540637 1
4 PIPE, 42.4X2X33 540634 1
5 BUSHING, M18X1.5 540636 1
- PIPE (3) 540646 1
6 PIPE, 42.4X2X33 540634 1
7 PLATE (2) 540632 1
8 CONNECTOR, 43x200 FLEXIBLE 543526 1
- PIPE (2) 540641 1
9 PLATE (3) 540642 1
10 PIPE, 42.4x2x250 540643 1
11 BUSHING, M18x1.5 540636 1
12 ELBOW, 32003 540637 1
13 PIPE, 42.4x2x115 540647 1
14 GASKET, EXHAUST SYSTEM 2 546508 1
15 MUFFLER/CATALYTIC CONVERTER, G57 545984 1
16 GASKET, EXHAUST SYSTEM 3 546509 1
17 BOLT,M8x35-8.8 HEX HEAD FULL THREAD ZINC F81002-13 4
18 NUT, M8-8-B HEX ZINC F81032-1 8
19 WASHER, 8.2 SPLIT LOCK ZINC F81054-4 12
20 WASHER, Z12.2 SPLIT LOCK ZINC F81056-2 2
21 BOLT, M12x40 8.8 HEX HEAD FULL THREAD ZINC F81004-4 2
22 NUT, M12-8-B ZINC HEX F81034-1 2
23 BRACKET, FRONT 540672-1 1
24 BRACKET, REAR 540673-1 1
