Wood-mizer LT70 Series User Manual

Operation
Starting the Engine
Operation G28doc072321 1-2
1
Control Panel
Refer to the sawmill Operator’s Manual.
Key switch (A):
 Position 0 - engine ignition OFF, all electrical circuits are OFF.
 Position 1 - engine ignition ON, all electrical circuits are ON.
 Position 2 - engine starter is ON
 Position 3 - engine ignition OFF, all electrical circuits are ON.
Blade drive switch (B):
 Position 0 - Blade drive is OFF. Blade brake is ON.
 Position 1 - Blade drive is ON. Blade brake is OFF.
To spin the blade wheels by hand (to track the blade), set the key switch to position 3 and
move the blade drive switch to position 1. IMPORTANT! After the blade tracking is done,
close the blade covers and move the blade drive switch back to position 0.
HMI Display (C): See Section 1.2HMI Display

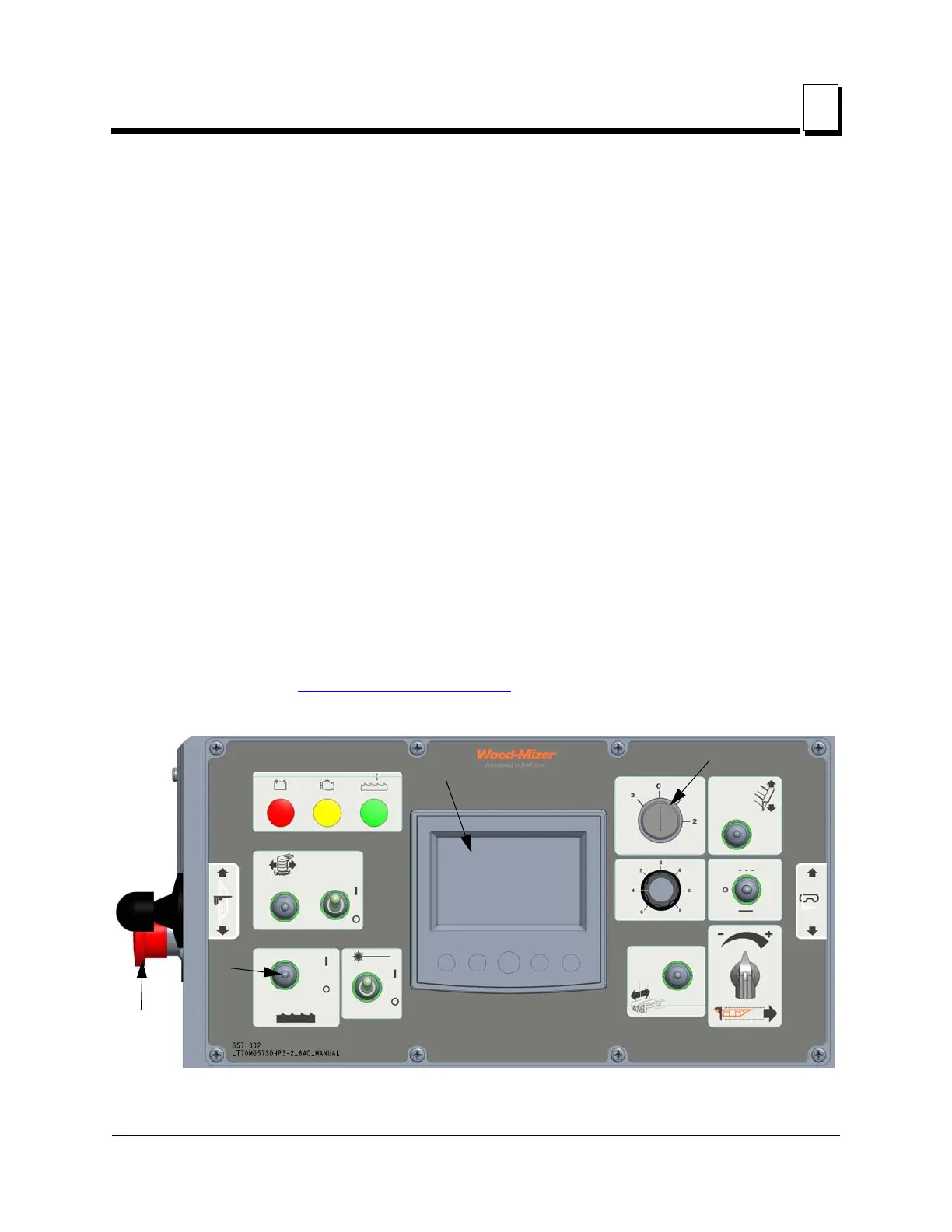

FIG. 1-2
A
B
C
D

Wood-mizer LT70 Series Specifications

General

Hydraulic Log Handling	Optional
Computer Setworks	Optional
Blade Width	1.5 inches (3.8 cm)
Power Options	Electric or diesel
Head Controls	Manual
Cutting Method	Horizontal bandsaw
