Telescopic horizontal flue assembly

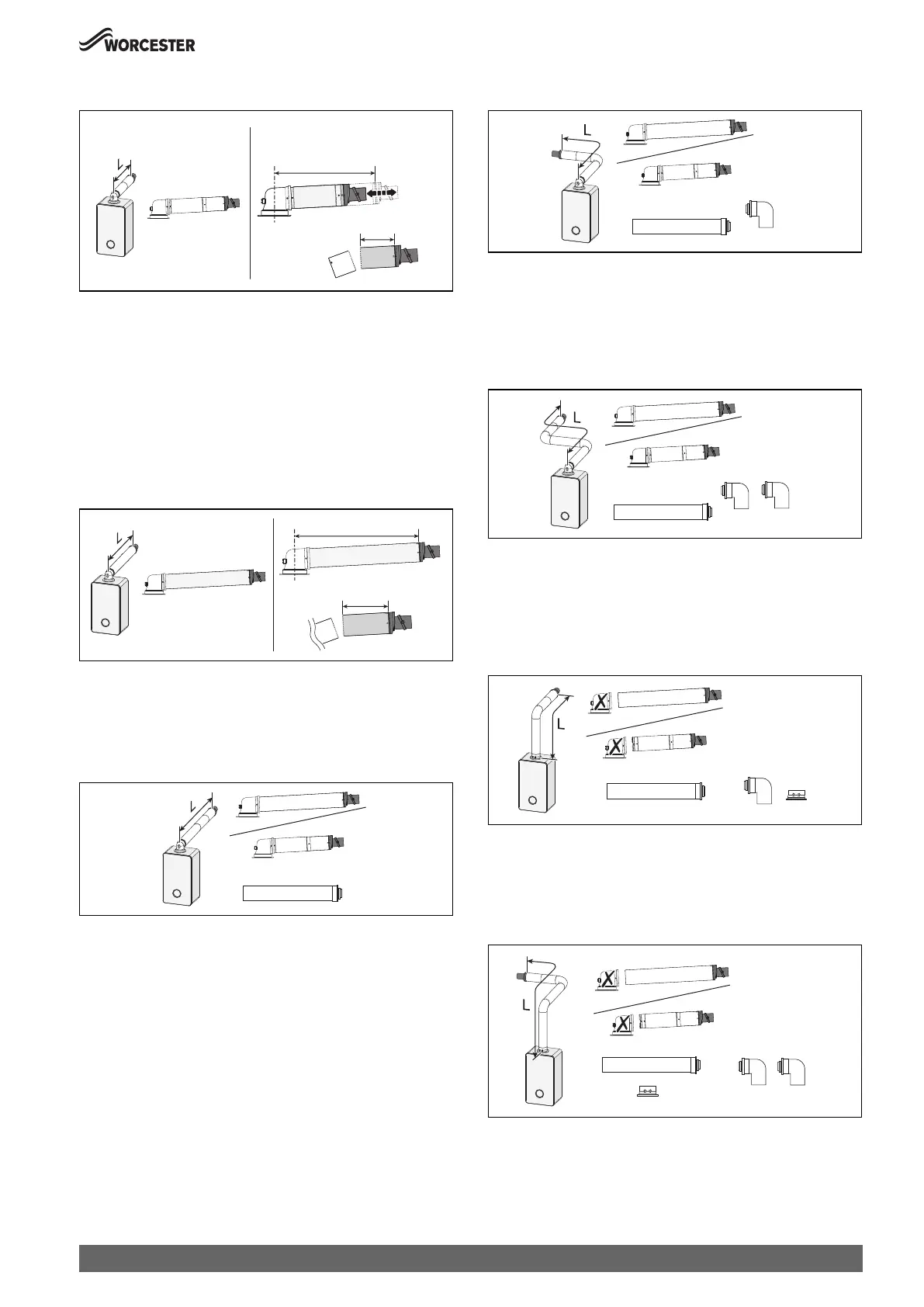

Fig. 16 Horizontal flue option
Telescopic horizontal flue assembly [A]
• Flue length [L] (adaptor bend included in length calculation)
– 60/100 = 180 - 570mm
– 80/125 = 405 - 600mm
Extended telescopic horizontal flue assembly [B]
• Flue length [L] (adaptor bend included in length calculation)
– 60/100 = 570 - 790mm
– 80/125 = N/A
Horizontal fixed length flue assembly
Fig. 17 Horizontal flue option
• Flue length [L] (adaptor bend included in length calculation)
– 60/100 = 330 - 1,050mm
– 80/125 = N/A
Extended horizontal flue
Fig. 18 Horizontal flue option
• Flue length [L] (adaptor bend included in length calculation)
– Maximum flue length as stated in Table 9 "Maximum flue lengths
- Horizontal flues".
Horizontal flue with additional 90° elbow
Fig. 19 Horizontal flue option
• Flue length [L] (adaptor bend included in length calculation)
– Maximum flue length as stated in Table 9 "Maximum flue lengths
- Horizontal flues" minus the 90° bend equivalent straight flue
length as stated in Table 11 "Effective length of bends".
Horizontal flue with additional 90° elbows
Fig. 20 Horizontal flue option
• Flue length [L] (adaptor bend included in length calculation)
– Maximum flue length as stated in Table 9 "Maximum flue lengths
- Horizontal flues" minus 2 x 90° bends equivalent straight flue
length as stated in Table 11 "Effective length of bends".
High level horizontal flue
Fig. 21 Horizontal flue option
• Flue length [L] (initial bend included in length calculation)
– Maximum flue length as stated in Table 9 "Maximum flue lengths
- Horizontal flues".
High level horizontal flue with additional 90° elbow
Fig. 22 Horizontal flue option
• Flue length [L] (initial bend included in length calculation)
– Maximum flue length as stated in Table 9 "Maximum flue lengths
- Horizontal flues" minus the 90° bend equivalent straight flue
length as stated in Table 11 "Effective length of bends".
0010015191-001
[A] 350 mm - 570 mm
[B] 570 mm - 790 mm
60/100 mm
130 mm Min
0010015192-001
330 mm Min
1050 mm
0010015193-001
0010015194-001
0010015195-001
0010015196-001
0010015197-001
