3.8 Designation of components

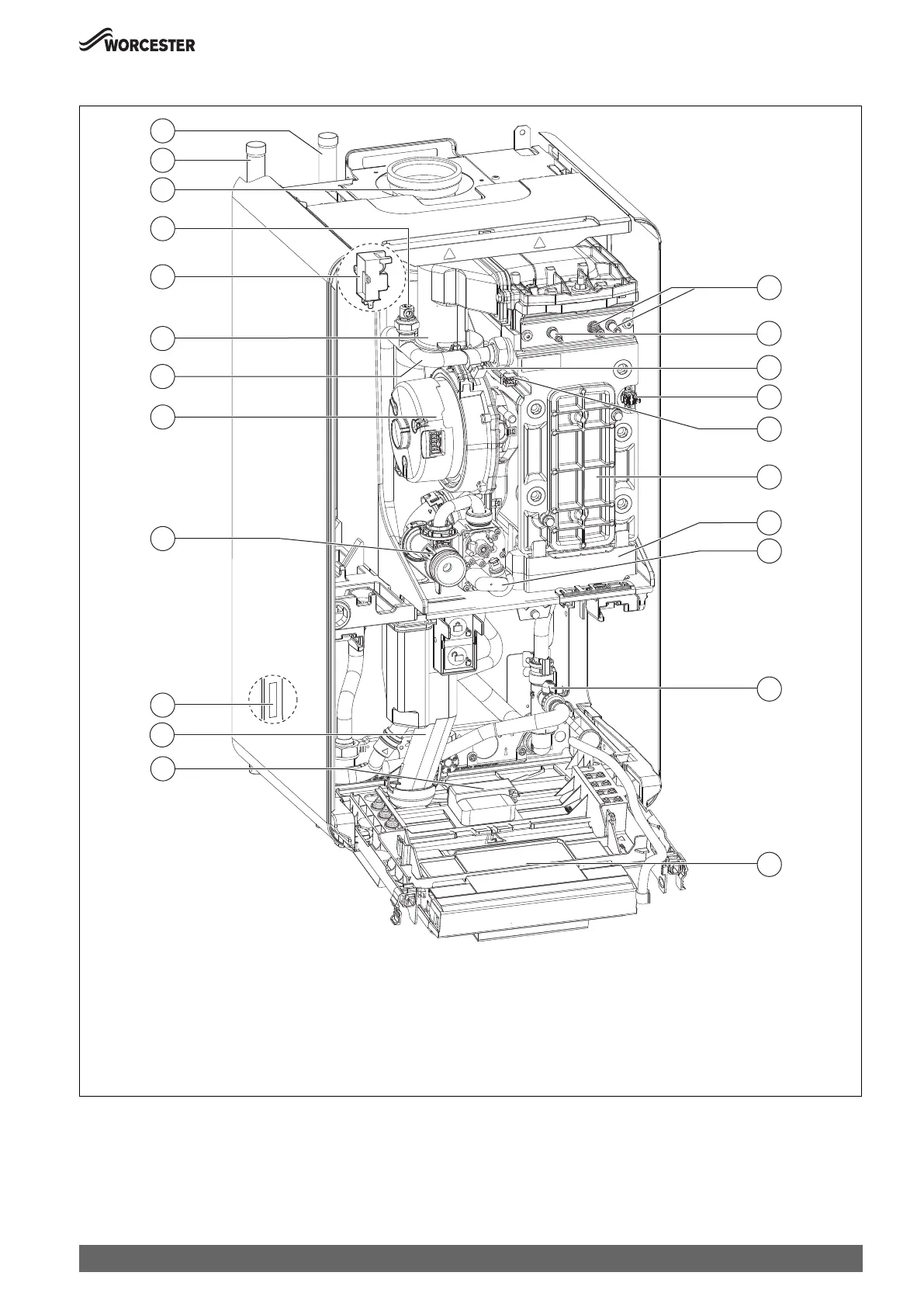

Fig. 3 Product overview Regular boilers, combustion cover removed
[1] KEY accessory housing slot (wireless Gateway)
[2] Condensate trap
[3] Data plate 1
[4] Venturi (sealed)
[5] Fan
[6] Heating flow
[7] Air-gas manifold with non-return valve
[8] Ignition transformer
[9] Air vent
[10] Flue
[11] Flow pipe
[12] Return pipe
