Product Information
Greenstar 8000 Life – 6720883866 (2019/04)
8

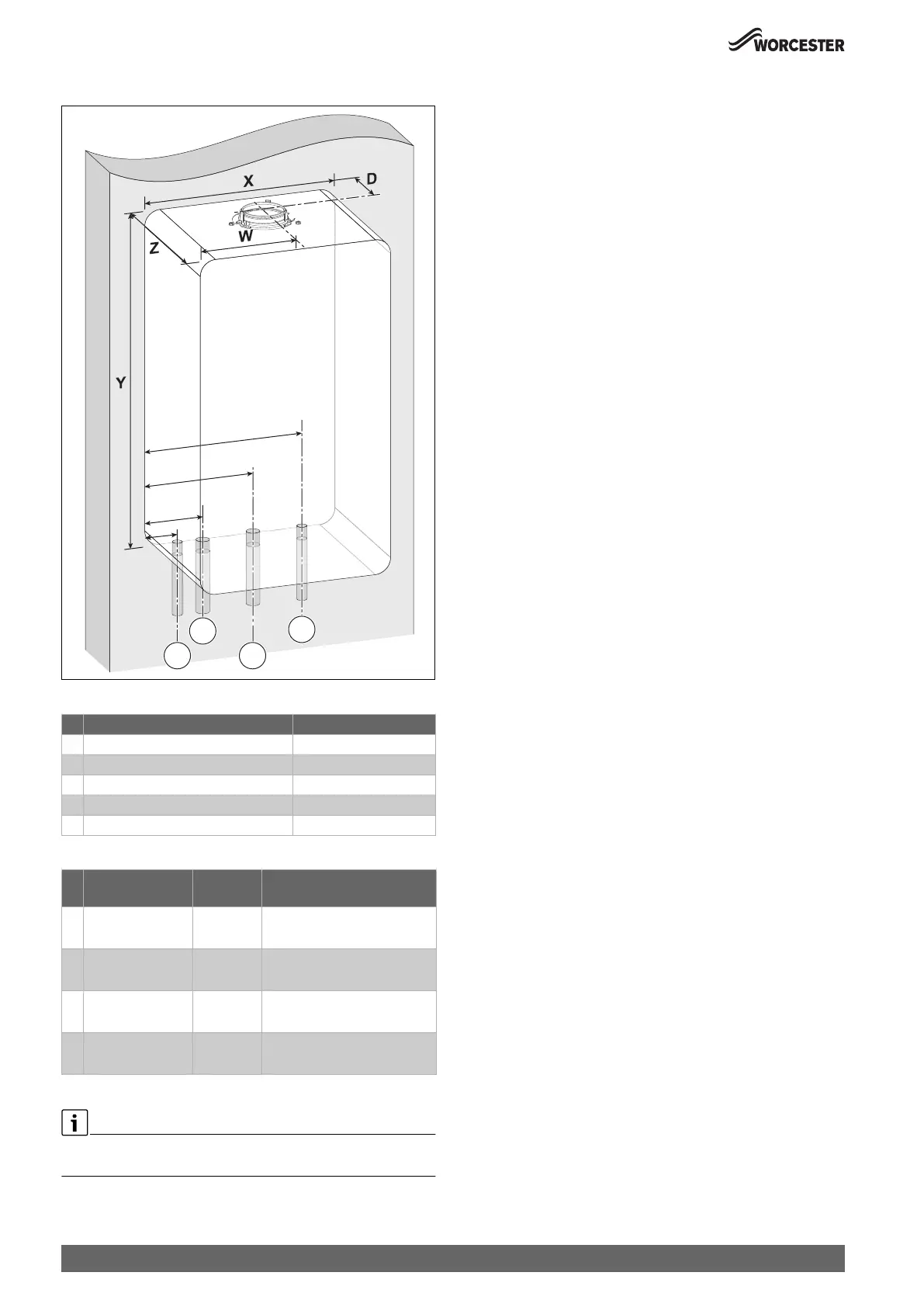

3.7 Pipe work positions and flue outlet
Fig. 2 Pipe and flue outlet dimensions
Table 3 Appliance and flue outlet dimensions
Table 4 Pipe dimensions
For servicing purposes, keep condensate discharge pipe away from
other hydraulic components.
Description Dimensions (mm)
X Appliance width 440
Y Appliance height 780
Z Appliance depth 365
W Flue centre from appliance left side 220
D Flue centre from rear of appliance 87
# Function From left
case edge
Diameter of pipe
1 Condensate Outlet 58mm 22mm
• Rubber push fit connection
2 CH Flow 90mm 22mm
• Compression fitting
3 Gas inlet 220mm 22mm
• Compression fitting
4 CH Return 350mm 22mm
• Compression fitting
0010024432-001
1
2
3
4
